Vibration Isolation Optical Table

Vibration Isolation Optical Table
Price: US $ 2189/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: POT-P12-09
Inherent Frequency: 6.5-12Hz, Vertically; 3-8 Hz, Horizontally
Vibration Isolation Structure: Compound Rubber Pads
Levelling Type: Manual
Table Height: 800mm or Customized
Breadboard Surface Roughness: Less Than 0.05mm Per Square Meters
Isolator Height Adjustment Range: 20mm
Table Top Core Structure: Honerycomb Core
Top Plate Material: 430 Stainless Steel
Dimension: 12--X900X800
Optical Breadboard Thickness: 100mm

Product Description

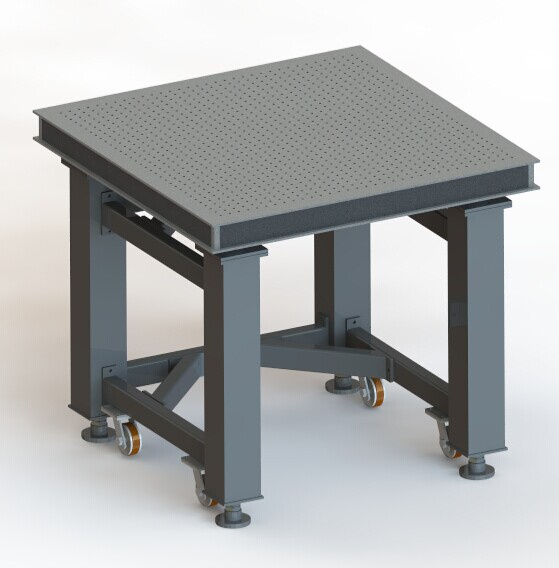

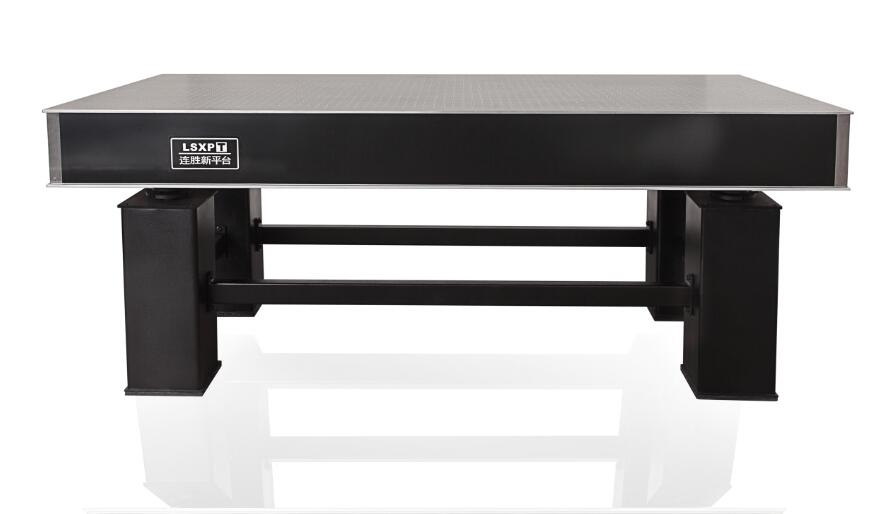

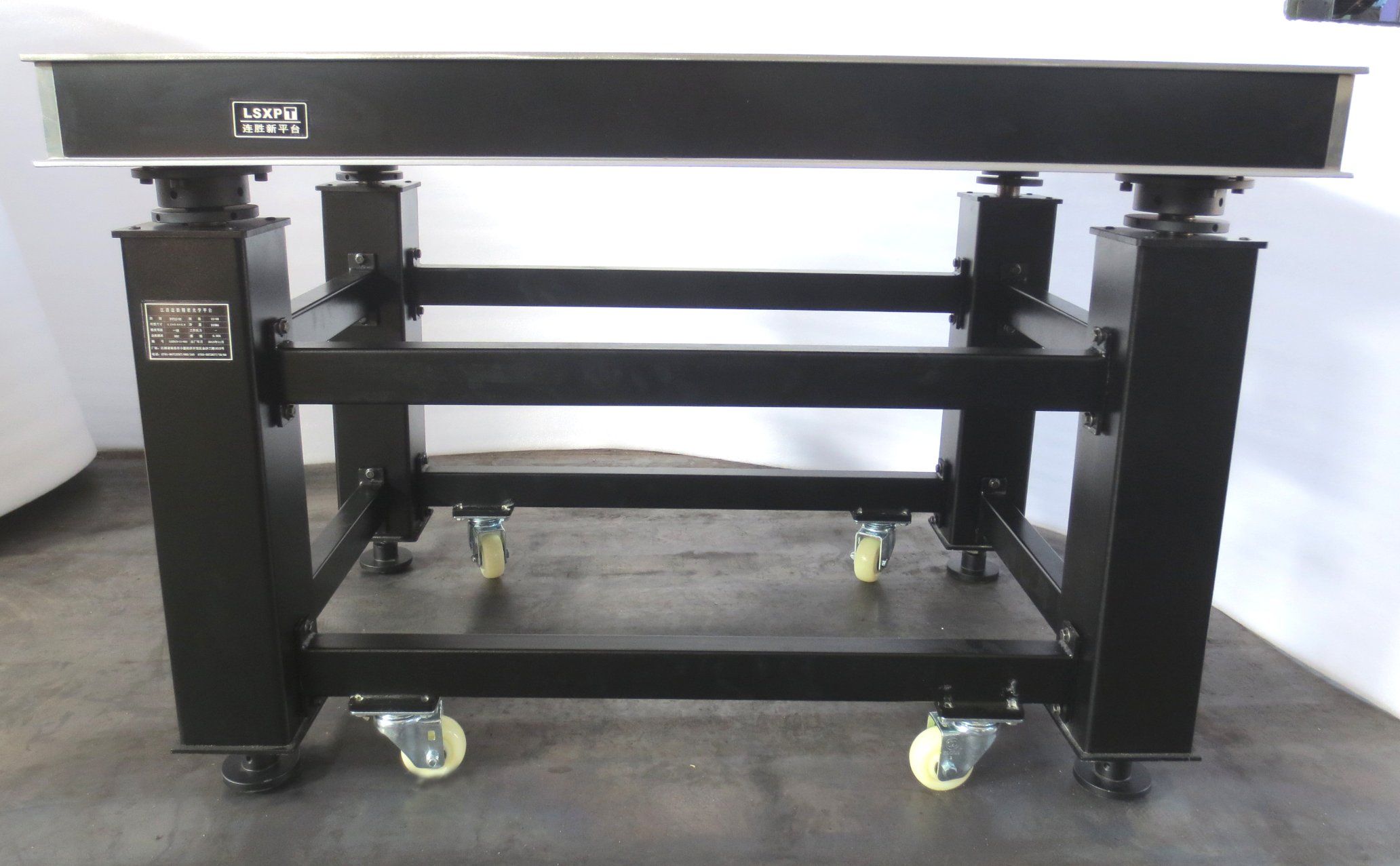

Solid vibration isolation damping optical table POT-P type


Production Features:
Breadboard:
- High Density Honeycomb Core Structure with clean top
- Surface Roughness: 0.8-1.6μm
- Flatness/Unevenness: <0.05mm/ square meters
- Inherent Frequency: 3-8Hz
- Amplitude: <2μm
- Mounting Holes: M6 tapped holes on 25mm grid. Hole to edge 37.5mm.
- Top Skin: 5mm Bottom Skin: 4mm
- Material: Stainless Steel.
- Core Structure: High density Honeycomb Core with sealing cups(13-19mm in depth)


Isolators:
The support system (Isolators) adopts compound solid vibration damping material with compact built and no demand for maintenance and adjustment.
- Number of isolators:
- Height: standard height 800mm or as user preferred(From floor to table top).
- Vertical Isolation, 10Hz: 88%
- Horizontal Isolation, 10Hz: 82%
- Vertical Isolation, Res: 6-8-Hz
- Horizontal Isolation, Res: 8-10Hz


Application:
Applicable for experiments that carried out in good vibration environment and general optical
utilization.


Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Jiangxi Liansheng Technology Company Limited is a professional developer and manufacturer of optoelectronic products.

Situated in Nanchang, Jiangxi Province, the company is a certified high-tech enterprise with independent intelligent property and various patents in the optoelectronic industry field. The company has devoted itself to optoelectronic product development and operation for a long time with an experienced staff team which has been recognized as one of the most professional teams in both technical development and business operation areas. The company has always put the technical development and innovations as its top priority. The company has implemented modernized production lines, established a standardized product testing scheme and world-wild quality reputation and a sophisticated marketing strategy. The company has also created a humanized working and living environment for its employees. The company has obtained two patents and certified with ISO9001: 2000. Various types of large sized optical tables manufactured by the company, features high and stable quality, have been tested and certified by authorized independent agencies.
