Mot-W Non-Magnetic Stainless Steel Optical Table Bredaboard

Mot-W Non-Magnetic Stainless Steel Optical Table Bredaboard
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: MOT-W
Product Name: Non-Magnetic Stainless Steel Optical Table Bredab
Breadboard Thickness Range: 50mm and 100
Top Skin Plate Flatness:
Roughness:
Hole Distributing: M6 Hole Type
Board To Edge: :50mm
Distance Between Holes: 25*25mm and 50*50

Product Description

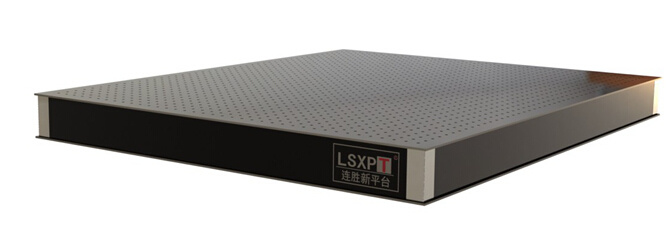

MOT-W Non-Magnetic Stainless Steel Optical Table bredaboard


Welding Core Structure Optical Breadboard- Hmt Series
Welding Core Structure Optical Breadboard- Hmt Series


▪ Stuffed with vibration damping materials for effectively surface resonance elimination;

▪ Medium carbon steel rib plates with reliable stability and high mechanical strength;

▪ Acceptable deformation under maximum loading with good rigidity;



▪ Optional sealed cups;

▪ Applicable for coupled and large size breadboard.

HMT Series breadboards can provide solid mounting base and improve the precision performance for the experiments with its vibration isolation layer. The core structure is with wielding networks, including top and bottom skins, sealed cups and Medium carbon steel rib plates. Within the core it is filled with vibration damping material. The top skin of the breadboard uses anti-corrosive magnetic stainless steel(1Cr13/1Cr17) to ensure the cleanness of the labs. The material used for the sealed cups stretch aluminum which prevents the impact of vibration caused by environment noise on the core of the breadboard. The sealed cup, with easy cleaning, can also prevent the inside core of the breadboard to be contaminated from dust, water or other small objects.  Inside wallboard network structure ensures the mechanical stretching. Aluminum plastic composite finishing for the side walls makes the appearance pleasant.



Technical Specification:

Breadboard thickness range:

   50mm and 100-400mm


Skin plate material thickness:


1Cr13/1Cr17(Superconducting magnetic Stainless Steel)

Top Skin:6-12mm  Bottom Skin:6-12mm

Net work  core:

Wall-boards welded with rib plates. Wall-boards:8-12mm Rib Plates: 4, 6 or 8 mm

Hole Grid:

Metric M6 tapped holes, 25mm*25mm/50X50mm grid, Board to edge 50mm

Top skin plate flatness

≤0.05mm/m²

Roughness

≤0.8μm,Matt finishing

Surface

< 2µm /m²

-standard(customized) dimension.



Standard Dimension:

Dimension mm(L×W)

Thickness mm

Hole grid(mm)

Hole Type

Net Weight(kg)

600×600

50

25×25

M6

43

600×900

75

25×25

M6

71

750×750

50

25×25

M6

68

900×900

75

25×25

M6

102

900×1200

100

25×25

M6

151

900×1500

100

25×25

M6

181

900×1800

150

25×25

M6

297

1000×1000

100

25×25

M6

137

1000×1500

100

25×25

M6

203

1000×2000

200

25×25

M6

393

1200×1200

100

25×25

M6

195

1200×1500

150

25×25

M6

273

1200×1800

200

25×25

M6

432

1200×2000

200

25×25

M6

470

1200×2400

250

25×25

M6

634

1200×3000

250

25×25

M6

836

1500×1500

200

25×25

M6

447

1500×1800

200

25×25

M6

573

1500×2000

200

25×25

M6

621

1500×2400

250

25×25

M6

829

1500×3000

250

25×25

M6

1024

1500×3500

300

25×25

M6

1241

1500×4000

300

50×50

M6

1621

1500×5000

300

50×50

M6

2204

1500×6000

400

50×50

M6

3886

1800×2400

250

25×25

M6

981

1800×3000

250

25×25

M6

1213

1800×3500

300

25×25

M6

1547

1800×4000

300

50×50

M6

1765

1800×5000

350

50×50

M6

2084

1800×6000

400

50×50

M6

4522

2000×3000

250

25×25

M6

1349

2000×3500

250

25×25

M6

1770

2000×4000

300

50×50

M6

2093

2000×5000

350

50×50

M6

2991

2000×6000

400

50×50

M6

5188



Note: Solidworks drawing available upon request.
