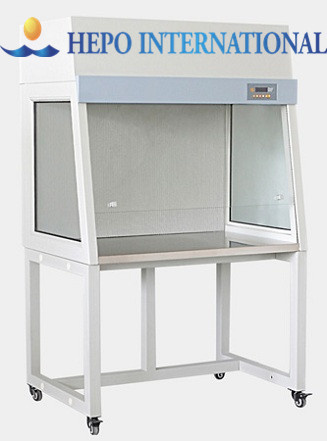

Vertical Laboratry Laminar Flow Cabinet
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P |
| Prod Model: |
DXC-H3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Person: |
1 |
| External Size (W*D*H): |
1000*730*1680mm |
| Operation Size (W*D*H): |
920*675*640 |
| Air Velocity: |
0.3m/S ~ 0.6m/S,Adjustable by Six Channels |
| Clean Rate: |
100 Class for USA209e |
| Noise: |
≤60dB |
| Illuminating Value: |
≥1000lux |
| Power: |
700W |
| Net Weight: |
105kgs |
| Name: |
Vertical Laboratry Laminar Flow Cabinet |
| Type: |
Cabinet |
Product Description
Laminar Air flow Clean bench can supply you the high cleanliness and germfree laminar air flow surroundings.All the operation are under constant positive pressure in order to prevent the infiltration of contaminated room air. The air flow can be horizontal flow and vertical laminar flow.Our DXC series of Horizontal Laminar Flow Cabinet is our new designed style according to customers.And it can be order to production accordingly.So this series are much popular in university's lab and the scientific research institution.
Main Advantages1,Pure English control system,digital display.
2,Bactericidal timing alarm function and memory function once electric break off.
3,Four timing alarms can be set separately for control the experiment process easily.
4,The whole body is cold-rolled steel.Take spraying plastics for cold-rolled steel to increase strength and rigidity of the framework,decrease the amplitude when running.
5,High efficient but low resistance filter technology,good performance and stability.
6, The host device of the bench is connected elastically,low vibration and noise.
7,Using the new non-ozone-UV lamp,high strength and long life.
8,Adopt electronic stepless speed regulator,much more convenient for usage.
9,The centrifugal fan is steel box,low power consumption and noise,long-term usage without maintenance.
10,8°angle human engineering design for the control panel,which is much comfortable for checking the screen during the operation.echnical Parameters for Horizontal Type| Model | DXC-H3 | DXC-H4 | DXC-H5 |
| Usage Person | 1 | 2 | 3 |
External Size
(W*D*H) | 1000*730*1680mm | 1480*730*1680 | 1880*730*1680 |
Operation Size
(W*D*H) | 920*675*640 | 1400*675*640 | 1800*675*640 |
| Air Velocity | 0.3m/s ~ 0.6m/s,adjustable by six channels |
| Clean Rate | 100 class for USA209E |
| Pre-filter | Polyester Filter |
| Main HEPA Filter | H13 or H14(Optional) |
| Average Clump Count | 0.5Cfu/plate.time |
| Noise | ≤60dB |
| Illuminating Value | ≥1000lux | ≥1000lux | ≥1000lux |
| UV lamp | 20w*1 | 30w*1 | 40w*1 |
| Fluorescent Lamp | 20w*1 | 30w*1 | 40w*1 |
| Front Window | 5mm toughened glass,anti-ultraviolet radiation |
| Structure Material | The main body is cold rolled steel,with anti-bacteria coating.The operation table is quality stainless steel. |
| Socket | 1 |
| Power | 700w | 900w | 950w |
| Net Weight | 105kgs | 135kgs | 180kgs |
