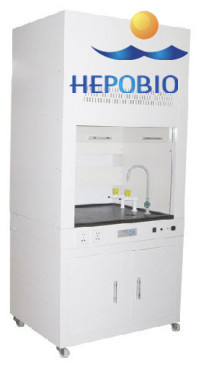

Big Capacity Hospital School Steam Smoke Laboratory Fume Hood
Price: |
US $ 1850-2100/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
HP-FH1800 |
Internal Size: |
1620*670*750mm |
External Size: |
1800*670*750mm |
Max Opening: |
450mm Height |
Work Surface: |
850mm Height |
Protection Class: |
Class I |
Protection Type: |
IP 20 |
Air Velocity: |
0.3 to 0.8 M/S |
Noise: |
Under 60dB |
Fluorescent Lamp: |
36W*1 |
UV Lamp: |
30W*1 |
Certification: |
CE, FDA, ISO13485, SGS, EEC |
Scale: |
Large |
Type: |
Health Care Intercom System |
Product Description
Fume HoodThe Fume hood is a popular exhaust equipment in lab room.Laminar Fume Hood can pull off the steam,smoke,dust and aerosol produced by the experiments which would be poisonous or harmful to human.And we can set proper filter according to you to clean the pull off air to protect the environment.Currently,we have three series Fume Hood for your choosing as followed. Advantages For our Functional Style Fume Hood1. UV lamp. Sterilize the working atea.2. Microprocessor control system,LCD digital display screen. 3. Built-in centrifugal blower,speed adjustable by 6 levels.4. Chemical-resistant physiochemical board work table. 5. Motorized front glass window. 6. Removeable work surface. Easy to clean. FH1000/1200 FH1500 Main Technical ParametersModel | HP-FH1000 | HP-FH1200 | HP-FH1500 | HP-FH1800 |
Blower | Built-in centrifugal blower,speed adjustable |
Internal Size | 820*620*750 mm | 1020*670*750mm | 1320*670*750mm | 1620*670*750mm |
External Size | 1000*750*2200 mm | 1200*800*2200mm | 1500*800*2200mm | 1800*670*750mm |
Base Cabinet | Height is 650 mm, the exterior size include the cabinet height |
MAX Opening | 450mm Height |
Work Surface | 850mm Height |
Protection Class | Class I |
Protection Type | IP 20 |
Air velocity | 0.3 to 0.8 m/s |
Noise | ≤ 60dB |
Fluorescent Lamp | 15W*1 | 21w*1 | 28w*1 | 36w*1 |
UV Lamp | 20W*1 | 21w*1 | 30w*1 | 30w*1 |
Front Window | Motorized,adjustable |
Exhaust Duct | PVC, standard length: 4 meters,Φ300 |
Power Supply | 110-220V/50-60Hz(optional) |
Power Consumption | 150W | 150W | 235W | 235w |
Waterproof Socket | Two,totally 1000W |
Standard Accessory | UV Lamp*2;fluorescent lamp;Water tap:1;Water sink:1;Gas tap:2;Two sockets;Base Stand;4 meters PVC exhaust duct. |
Material | Exterior body: Cold-roll steel sheets, coated with anti-bacteria powder; Interior:High grade melamine board with good acid and alkali resistance function; Side Panel and front window:5mm thickness toughened glass,anti-ultraviolet radiation; Work table: Using Solid Chemical-Resistant physicochemical board. |
Optional Accessory | HEPA filter/Carbon /Chemical Filter,Infrared Sterilizer |
Gross Weight | 230kg | 320kgs | 370kgs | 420kgs |
Input pressure | >0.5Pax |
Raw Materials | Worktable:Stainless steel or High grade melamine board with good acid and alkali resistance function according to you; External:Color Steel or Stainless Steel(optional). Exhaust Duct:PVC, standard length: 1 meters,Φ160 |
Fluorescent Lamp/UV | 20w*1/20w*1 | 28w*1/30w*1 | 36w*1/30w*1 |
Power | 400w | 600w | 800w |
Power Source | AC, 220 V/50Hz |
Optional Accessories | HEPA filter/Carbon /Chemical Filter,Infrared Sterilizer |
Net Weight | 160kgs | 180kgs | 200kgs |
