| Prod Model: |
YLF600U/1000U/1500U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
U-Shape Low Profile Electric Lift Table |
| Capacity: |
600-1500kg |
| Platform Size: |
1450*985/1450*1140/1600*1180mm |
| Size A: |
200/280/300mm |
| Size B: |
1080/1080/1194mm |
| Size C: |
585/580/580mm |
| Platform Min. Height: |
85/85/105mm |
| Platform Max. Height: |
860mm |
| Base Size: |
1335*947mm |
| Power Supply: |
380V/50Hz |
| Application: |
Building Crane |
| Running Mode: |
Moving |
| Carrying Capacity: |
600-1500kg |
| Driven Type: |
Electeric |
| Feature: |
Lift Table |
Product Description

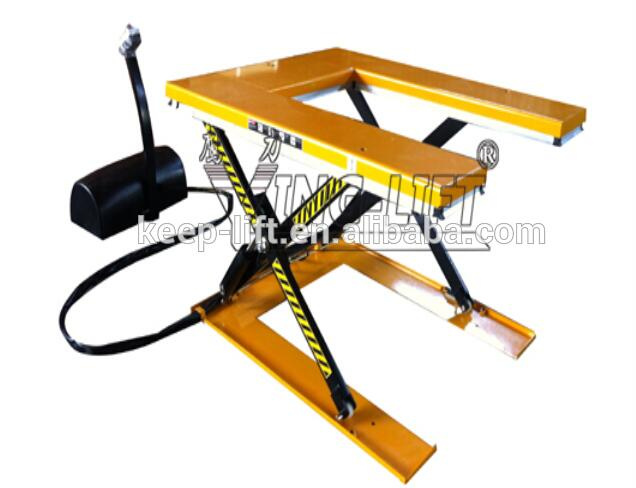

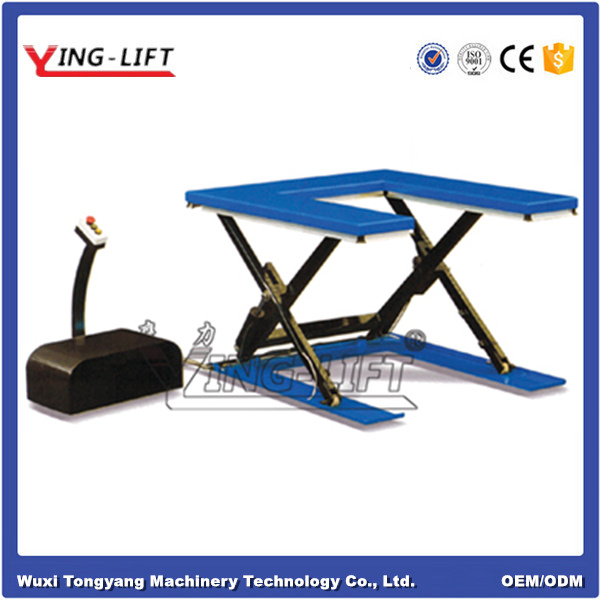

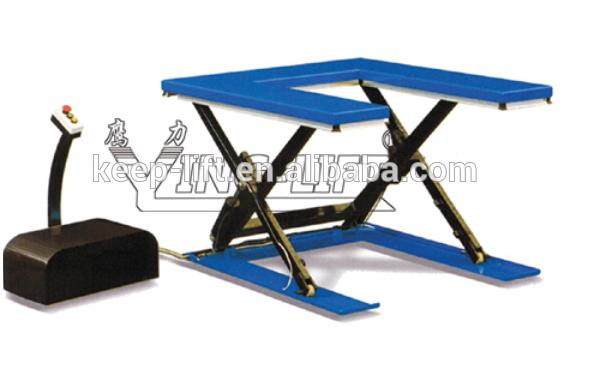

U-Shape Low Profile Electric Lift Table
Description
1."U" Low Electric Lift Table, 600kg to 1500kg Capacity is with the open center on the "U" Type platform, which enables a pallet truck to place a load on the platform.
2. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed.
3. Remote power pack comes complete with steel cover to protect the motor from dust and debris.
4. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box.
5.Safety features include electric toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box.
| Model | YLF600U | YLF1000U | YLF1500U |
| Capacity | kg | 600 | 1000 | 1500 |
| Platform Size | mm | 1450*985 | 1450*1140 | 1600*1180 |
| Size A | mm | 200 | 280 | 300 |
| Size B | mm | 1080 | 1080 | 1194
|
| Size C | mm | 585 | 580 | 580
|
| Platform Min./Max. Height | mm | 85/860 | 85/860 | 105/860 |
| Base Size | mm | 1335*947 | 1335*947 | 1335*947 |
| Lift Time | s | 25-35 | 25~35 | 20~40 |
| Power supply | | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Net Weight | kg | 207 | 280 | 380 |
FAQ:
1.Q.Are you factory?
A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
A.Yes.You can mix different models as your request.
3.Q.Can we order products?
A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?
A.Welcome anytime .Our factory address:NO.29 Yanjin Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China.You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
A.Yes.All our machines carry a full 1 year major parts warranty.
Main Feature
1.Lift table with "U" Shaped Top Platform;
2."U" shaped tables are specially for handling pallets, no need for a pit or load ramps;
3.Heavy Duty Design 1500-1500kg;
4.Meet EN1570 norm and ANSI/ASME safety standards;
5.Remote Power pack with pedestal and controls, protected to IP54.
6.Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
7.24V control box with UP and DOWN buttons and emergency stop.
8.External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
9.Hose burst safety valve to stop the lift table lowering a case of hose breakage.
Competitive Advantage:
1. U-shaped static electric lift tables also come with a remote power pack with a pedestal fitted to it, leading to the controls buttons - up, down and a safety stop button. There is also a further safety perimeter which halts descent when it comes into contact with any obstructions.
2. The Guardian U-Lift Tables have all the safety features of our Low Profile Guardian Series Lift Tables. The low profile feature provides greater flexibility since a variety of applications can be accommodated. Also, installation costs are reduced since the need for a floor pit is eliminated.

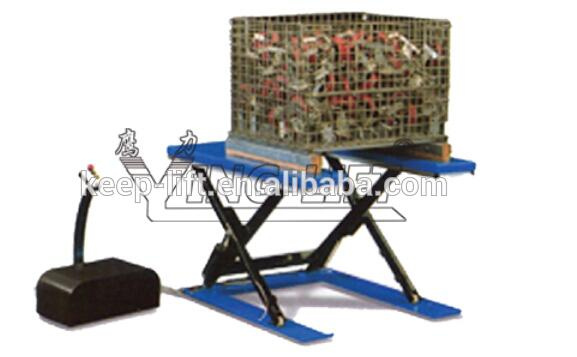

3. The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a manual or electric pallet truck without the need for a loading ramp.
4. Safety cut off bars on all sides
5. Safety cut off valve if a power failure
6. Overload protection
As a professional manufacturer of material handling and lifting equipment, WUXI TONGYANG MACHINERY TECHNOLOGY Co., Ltd.Is an industry leader in the researching, manufacturing and selling types of drum handlers, stackers, forklift attachments, pallet trucks, platform trucks and lift table.
Since its inception, Wuxi Tongyang Machinery has always paid great attention to maintaining a high level of quality control and process management, thus to ensure full customer satisfaction.We check and load tests each piece of equipment prior to shipping.With the exception of battery connections, most of our equipment is ready to use without assembly when you receive them.
In recent years, our company has introduced a series of advanced equipment including Plastic Spraying machine, CNC cutting machines and Double Hydraulic Pipe Bender.In addition, as an I S O 9 0 0 1:2 0 0 8 certified company;We have already established a long term business relationship with overseas countries and regions.And our equipment is popularly sought after in Europe, America, Australia, Southeast Asia, Russia and many other countries.
We also welcome OEM and ODM orders.We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits..
HONOR:
With CE approved, our drum transporter, stackers, pallet trucks and platform trucks are popularly sought after in Europe America, Australia, Southeast Asia, Russia and many other countries.We have already established a long term business relationship with overseas countries.So was certified by ISO9001:2008 and TUV.
Every year get the customers Grade A feedback and happy visit, our factory team will try more best to improve our production, hoping offer more better service for each customer.
Price advantage:Factory directly sale in more competitive price term.
Brand advantage:ODM & OEM (OUR BRAND IS YINGLIFT)
Service advantage:Sales team (10 ), Technical team(4 )and After-sales team(4)
Supply advantage:More than 8 big workshop
Variety advantage:From mechanical equipment to Semi-electric equipment to Full electric equipment.
Manufactured in China
All Wuxi Yinglift material handling products are manufactured in China and we provide an unmatched warranty for all of these equipment.As a professional manufacturer, we are confident in our design, processing, craftsmanship, quality control and performance which enable our material handling equipment to be the leader in this area.
Common Maintenance Replacement Parts
Normally speaking, the quality warranty period of our Yinglift material handling equipment is lasting for one year.However, the following parts are considered common replacement parts and are not covered under this warranty after six (6) months from the date of shipment:Spring plungers;Bearings;Rubber;Hoses;Chains;And Lift Jaws.The following parts are considered common replacement parts and are not covered under this warranty after twelve (12) months from the date of shipment:Wire Rope;Casters;Brakes;Sheaves;Batteries;And Clamping Assembly.
