Two Filter Small Spray Cabinet

Two Filter Small Spray Cabinet
Price: US $ 1-2000/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: CL-0811
Brand Name: Colo
Weight: 200kg
Kind: Manual Powder Coating Booth
Power(W): 1.5kw
Voltage: 220V/380V, 3 Phase
Warranty: 1 Year
Filter: 320*600mm
Outer Size: 1000*800*1000mm
Type: Electrostatic Spraying Equipment
Application: Hardware Spraying Equipment
Certification: ISO
Method Type: Manual

Product Description

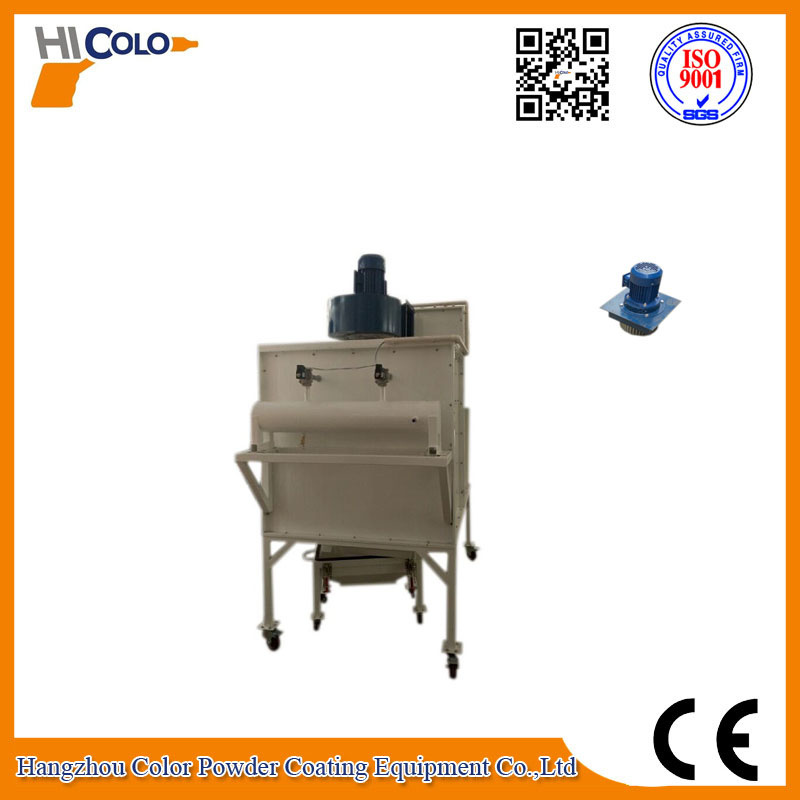

Two Filter Small Spray Cabinet
Typically used in batch and low to medium production applications, this booth features
a cartridge filtration system,Conforms with CE regulations

Technical data
ModelCOLO-S-0811
Booth TypeClosed
Operator dimensionsW1000*D800*H1000mm
Weight150kg
Power supplyElectric
Nominal power1.5kw
Voltage380V
Frequency50-60Hz
FiltersPolyester
Filters count2 (325*600)
Filters hang typeeasy for change
Filter cleaning systemPneumatic
Air consumption4000m3/h
Warranty12 months
Features
Designed for manual coating batch, short run and custom colors
Completely assembled and pretested
Vertical cartridge filter

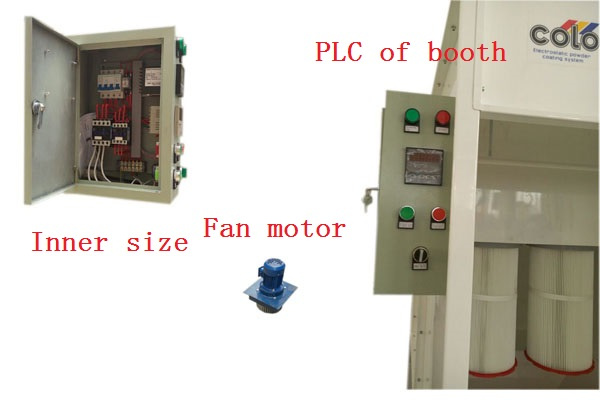

Simple use control panel optional
Fluorescent light fixtures
On/off switch with timer board
Reverse pulse cleaning

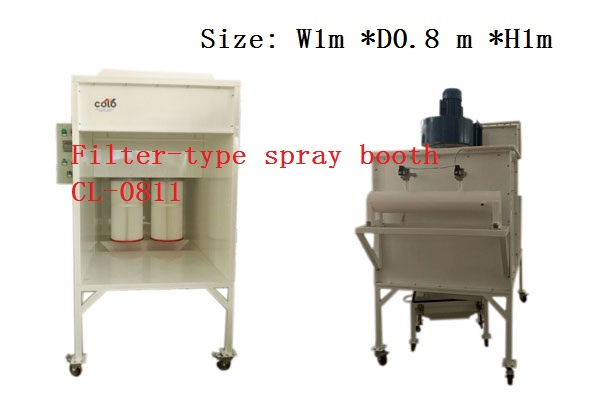

Filter-type spray booth

Size: width 1.0 m depth 0.8 m high 1.0 m,
1.Fan Model :4-72-2 .8 A type 1.5kw.
2. Powder recovery filter units with two pulsed valve
3 Note: Voltage 415V50HZ, plate thickness 1.2mm

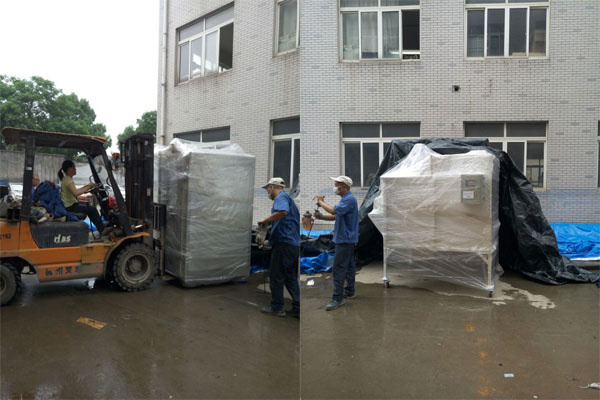

Loading with oven and machine to USA in our factory

HANGZHOU COLOR POWDER COATING EQUIPMENT CO.,LTD is a leading company in China
in the electrostatic powder coating systems industry. We are an innovator of powder coating
equipment, and export into more than 90 Countries including the US, Mexico, Peru, Colombia,
Russia, Poland, UK, Germany, Vietnam, Thailand, Korea, Malaysia, Egypt, Morocco
along with many others
Customers visit

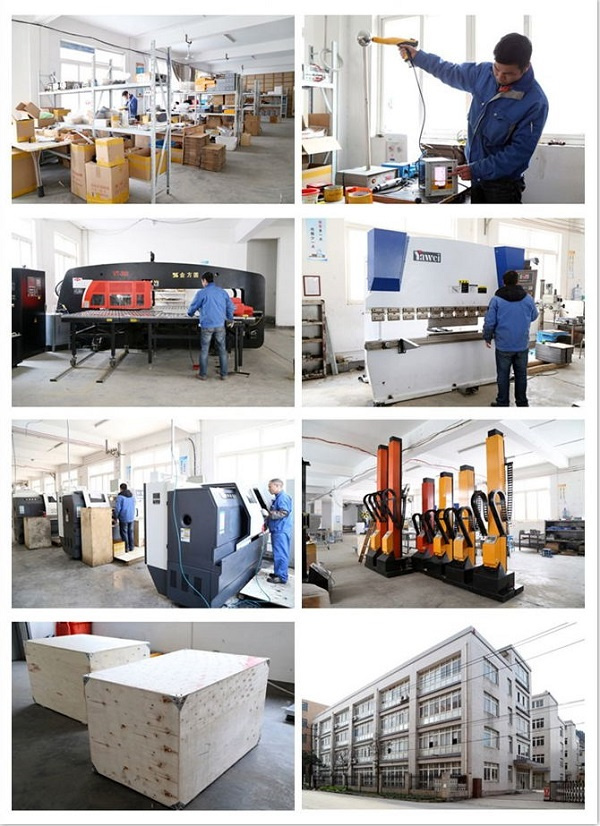

Factory Details

If you have other question,or the requirements,pls contact
Miss Sonne Xie





Hi colo Group owned two factory, one it is produce the powder paintings -

Tiantai Colourful Plastic Powder Co., Ltd. And another one it is professional in the powder coating application equipment ---

Hangzhou color powder coating Equipment Co., Ltd It is located in the electrostatic generator production base- Hangzhou Gongshu Economic Park, We have ability of producing electrostatic powder coating line, paint coating line which have automatic, semi-automatic, manual and special type and curing and drying ovens with many kinds heat way (oil, gas or electric), cartridge or cyclone recovery system, wet curtain or dry painting booth, conveyor systems, spray or immersion type pretreatment plant. Also we supply the spare parts such as filters, guns, reciprocators, pumps and so on.

Our machines can spray well in a variety of workpiece shapes, , it efficiently solve the penetration problems on the corners and recesses. At the same time, with the intelligent method design, it is easy for operation. We will make unremitting efforts to promote the electrostatic powder coating industry as our responsibility. Above of our productions are produced in term of ISO9000 and ISO14000, so we always keep concept of environmentally friendly. With advanced production and testing equipment, in the high-quality technology and excellent and design of the joint efforts of staff, the annual product of electrostatic generators more than 5, 000 sets of, circuit boards, modules, more than 30, 000 sets of the spray gun. COLO Coating Equipment has opened up not only the China local market and has been successfully exported to Mexico, Colombia, Peru, Canada, the United States, Brazil, Russia, Poland, France, Germany, Italy, Egypt, Vietnam, India, Saudi Arabia, South Africa and other countries, and get the Satisfaction with different clients.

Welcome guests from all countries in the world visit our factory, choosing colo it is choosing quality machine, , high-quality after-sales service. Holesale, sales and service of electrostatic coating. Its products have continuously been developed and improved day by day.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
