| Prod Model: |
COLO2315 |
| Use: |
Electrostatic Powder Coating |
| Voltage: |
220V/380V |
| Size: |
D1500*W2300*H1500mm |
| Delivery Time: |
10 Day S |
| Powder Supply: |
Electric |
| Weight: |
450kgs |
| Fan Motor: |
4kw |
| Filter Hang Type: |
Easy for Change |
| Filter Quantity: |
4PCS |
| Filter Matrial: |
Polyster |
| Type: |
Powder Coating Booth |
| Coating: |
Powder Coating |
| Substrate: |
Steel |
Product Description

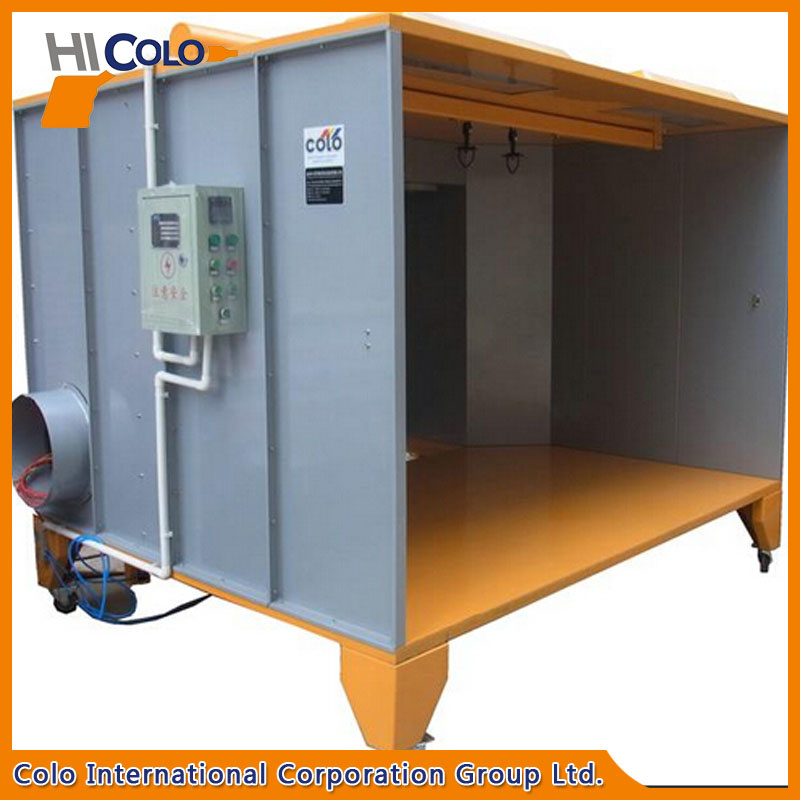

CE Approved Manual Standard Size Powder Spray Cabinet
Description:
Inner size:D1500*W2300*H1500mm
Value Flexbility Performance
100% polyster filters quick-release type
Advantages:
1.Plastic anti-static, not easy adsorption powder, therefore, clear color change is very easy and quick.
2.Spray outlet has a sliding door, when the clean-up booth, the import and export all off, you can
speed up the rate of spray to clean the room.
3.Light-colored spray booth and the integrated lighting to ensure good working conditions, staff
can enter the booth, with an elongated air lance can facilitate internal cleaning spray.
Model COLO-S-2315 the size and color can be ordered according to the requirements of the clients.
| Model | COLO-S-2315 |
| Booth Type | Closed |
| Operator dimensions | D1500*W2300*H1500mm |
| Overall dimensions | D2070*W2750*H2180mm |
| Weight | 450kg |
| Power supply | Electric |
| Nominal power | 4kw |
| Voltage | 380V 3PHASE |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 4(325*900) |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 6677-13353m3/h |
| Warranty | 12 months |
Introduction:Powder Coating Booth
Powder Coating Booth consists of stainless steel panel room, Cleaning Panel, Fast Change Color Recovery System, including Mono-cyclone Unit, Filter Recycle Unit, Recycle Fan, Magnetic Valve, Re-verse Blow,
Compress Air Reservoir, Pneumatic Control and Electrical Control.
There are four stages for the Recovery System; it includes Powder Coating Suctions, Separation, Filtering and Out Deliver, 98% recycle powder can be reused.
To our new design, there is a Cleaning Panel in the bottom of booth, which is able to reverse, easy to cleaning. The Powder Coating Booth optional size 5~8meters, depends on clients' requirement and
technical design.
More details
