| Prod Model: |
sw-tfg-15 |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Sugold |
| Model Number: |
Sw-Tfg-15 |
| After-Sales Service Provided: |
No Overseas Service Provided |
| Width: |
1.5m |
| Machine Type: |
Fume Hood |
| General Use: |
Commercial Furniture |
| Cerification: |
ISO 9001 |
| Size: |
1500*760*1950mm |
| Product Name: |
Tubeless Fume Hood |
| Type: |
Fume Hood |
Product Description

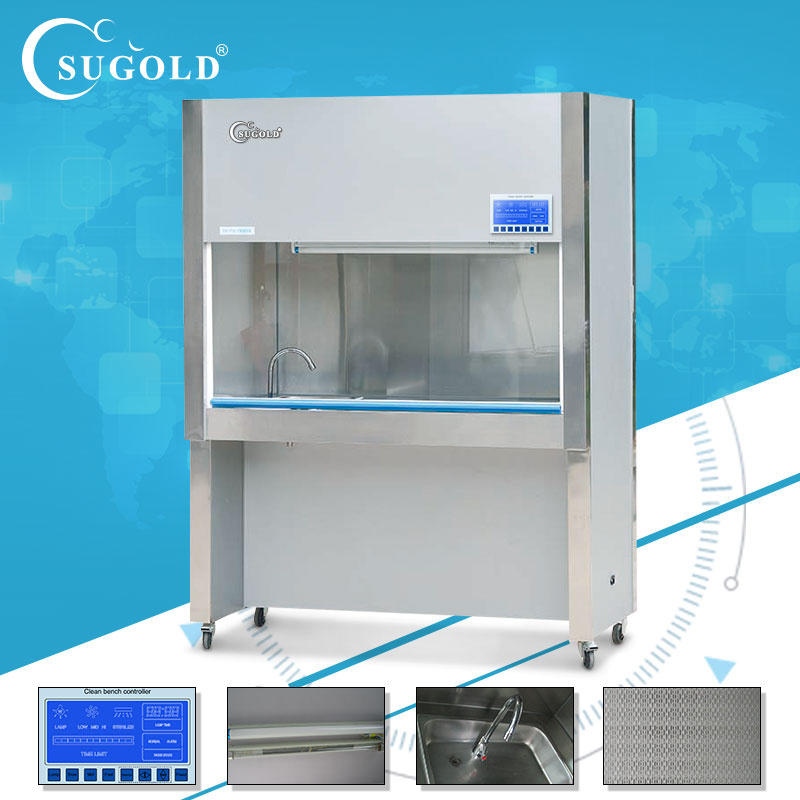

Tubeless fume hood
TFG series ventilation cabinet is integrated with water, electricity, gas and ventilation. It is equipped with multifunctional socket inside. The window is designed into automatic balance type and is equipped with proper poise for taking its place easily. The bottom is equipped with stainless steel water tank with which liquid antiseptic, experiment leftover can be discharged from this tank through bathing so as to keep experiment environment safe and reliable. Thus, it is a kind of common lab equipment for discharging bad gas, cleaning and discharging in the course of experiment.
Laboratory furniture ventilation fume hood(SW-TFG-15)'s properties
The flow plate makes bad gases in different height discharged from different parts. The ventilation cabinet discharges internal air out at the speed of 0.5m/s to guarantee there is not any residual air inside, so the ventilation efficiency is high and ventilation capacity is 450-1600m3/h. The glass window may be dragged up and down. It can be stayed on any position to provide safer, more comfort test space for experimenter.
Specification
| Setting Information |
| process | |
| rated voltage | 220V |
| material | Plate steel |
| light color | Blue/white |
| installation | Yes |
| temperature | 10-35 |
| Hole diameter | 25MM |
Product Description
Product Details
With glass in the front
Te controller of the Fume hoods
The PP anticorrosive centrifugal fan
Water sink and the tap
| Model Name | Laboratory steel fume hood gas extractor |
| Upper Part | Using 1.0mm thick cold rolled steel, made through cutting, bending, welding, stamping and grinding, with surface treatment of acid washing, phosphating and epoxy electrostatic powder coating, impact test qualified, lined with 5mm thick compact panel, providing three-stage exhaust design, control panel is located on the side plate for convenient observation and operation. |
| Lower Part | Using 1.0mm thick cold rolled steel with Epoxy powder coating, with embedded aluminum alloy handle and 316L stainless steel hinge (opening maximum at 145°), providing adjustable feet which consist of stainless steel screw, nylon cover and rubber material, with anti-skidding, shock absorbing, chemical resistant, corrosion resistant and strong bearing abilities. |
| Size | 1200*850*2350 , 1500*850*2350*, 1800*850*2350 (optional) |
| Viewable Window | Using :≥5mm anti-explosion toughened glass, available to stop at any height of the rain slider, the main window can slide around |
| Top | solid physiochemical board/ Epoxy Resin board/ thickness 13/16/19mm/ catcher 26mm (optional) |
| Accessories | see more |
| Socket | anti-dust, splash proof safety socket with automatic closing lid, size of 60×60mm, 10A/16A /220V |
| Light | round energy saving light hidden in top ceiling, not directly contact with the air in the fume hood, easy to be replaced |
| Control Panel | multi-function socket, lighting , fan and fan valve control |
| Sink | using imported PP material , chemical resistant , corrosion resistant and organic resistant |
| Tap | using copper material with high gloss epoxy powder spayed surface, acid and alkali resistant, corrosion resistant, providing single/double/triple outlet types for choice, with detachable nozzle and ergonomic PP handle |
| Sewer System | using high-density imported PP trap, corrosion resistant, chemical resistant and organic resistant, with filtering and smelly odor blocking function |
| Specific Standards | |
| Available Opening Height | 0-800 mm |
| Face Velocity | 0.4-0.6m/s |
| Noise | <60db |
| Airflow Speed | 1080-1700m3/h |
| Electricity | AC220V-380V/0.09-4kw |
Fume hoods features
1,Internationally recognized PP (polypropylene) are used to form the cabinet by seamless welding engineering
2,Material thickness: 8mm and 100mm thickness PE board are optional
3,Equipped with internationally recognized leakage proof sump, which could be detached out to be cleaned. Shelves are adjustable.
4,Cabinet doors are marked clearly with warning label reading "CORROSIVE"
5,To improve operational safety, padlock could be used to provide extra protection.
6,Cabinet door could be customized as left-open or right-open. Various sizes of double door or single door could be customized.
7,Used to store strong corrosive chemicals, such as sulfuric acid, nitric acid, acetic acid etc. to protect cabinet operator and prople around.
Fume hoods advantage
1. Professional manufactor,fine workmanship
2. Good quality and competitive price
3. Fast delivery,good service
4. Accept OEM orders
5. 100% original raw material
6. All products approved by ISO9001, ISO14001
Certifications
