| Prod Model: |
SW-TFG-12 |
| Place Of Origin: |
Zhejiang China (Mainland) |
| After-Sales Service Provided: |
No Overseas Service |
| Brand Name: |
Sujing |
| Machine Type: |
Class 100 Vertical Clean Benches |
| Descending Wind Speed: |
Within 0.3m-0.6m/S Adjustable |
| Power Consumption: |
0.8kw |
| Dimension Of Working Area: |
1030*700*600mm |
| Noise: |
<=62dB |
| Overall Dimension(L*W*H): |
1500*760*1950mm |
| Weight: |
150kg |
Product Description

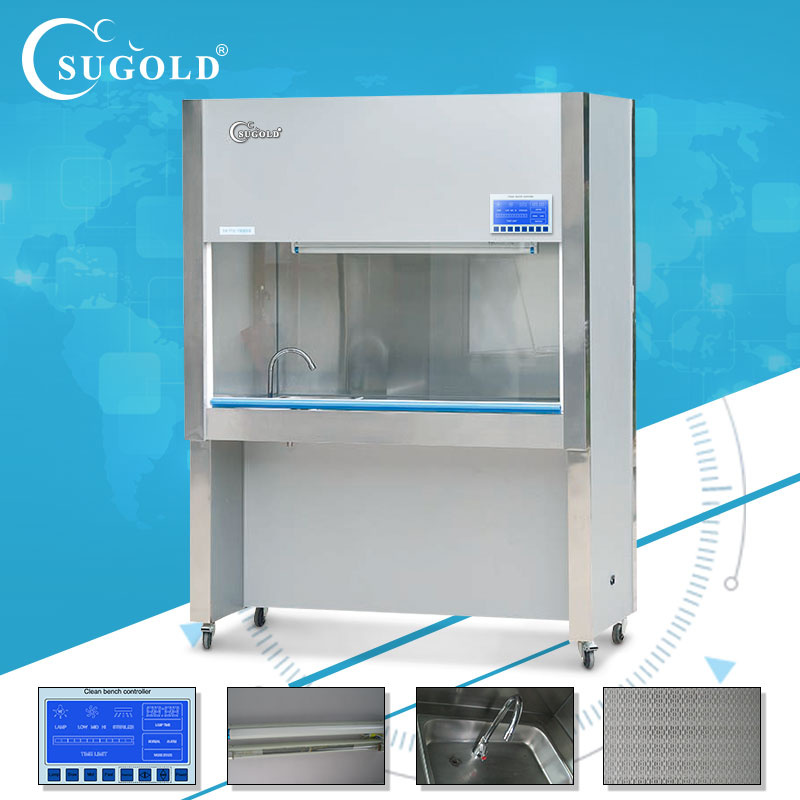

Ventilation Cabinet/Fume hood cabinet
TFG series ventilation cabinet is integrated with water, electricity, gas and ventilation. It is equipped with multifunctional socket inside. The window is designed into automatic balance type and is equipped with proper poise for taking its place easily. The bottom is equipped with stainless steel water tank with which liquid antiseptic, experiment leftover can be discharged from this tank through bathing so as to keep experiment environment safe and reliable. Thus, it is a kind of common lab equipment for discharging bad gas, cleaning and discharging in the course of experiment.
Ventilation Cabinet/Fume hood cabinet is Properties
The flow plate makes bad gases in different height discharged from different parts. The ventilation cabinet discharges internal air out at the speed of 0.5m/s to guarantee there is not any residual air inside, so the ventilation efficiency is high and ventilation capacity is 450-1600m3/h. The glass window may be dragged up and down. It can be stayed on any position to provide safer, more comfort test space for experimenter.
Ventilation Cabinet/Fume hood cabinet is technical parameter
| No. Index/Model | HJ-TFG-15 ventilation cabinet |
| Discharging speed | within 0.3m-0.6m/s adjustable |
| Inlet pressur | >0.5Pax |
| Power | 800W |
| Power supply | AC, 220 V/50Hz |
| Weight | 180KG |
| Dimension of working area(W1*D1*H1) | 1330*700*600mm |
| Overall dimension W*D*H | 1500*760*1950mm |
Zhejiang Sujing Purification Equipment Co., Ltd. is one of the leading companies in purification equipment industry in East China. Our factory has already passed ISO9001 Quality System Authentication. With abundant strength, leading technology, excellent quality, perfect service, and penetrating insight of the market, we have developed a series of purification equipment. We have a strong Sales elite team and professional technicians and provide Perfect after-sale service. We offer air purifying equipment for microelectronics, biomedical, hospital operating room Optical fiber cable, food industry, and precision instrument. The application of the semiconductors and new materials accords to ISO14644-1 standard, GB50073-2001 national standards and national GMP regulatory requirements.
Our main Products: Clean benches, Ventilation equipment, Biological safety cabinets, Air showers, Transfer windows, Sampling Cars, Air self-purifiers and other high-efficiency air purifying equipment. We also accept customers' Special specifications of the non-standard purification products.
Our company has always pursued the principle of "the first-class quality, the first-class credibility". Our products have already set up good public reputation in the industry. We will do our best to create a safe, comfortable, clean and beautiful environment for you!
Zhejiang Sujing Purification Equipment Co., Ltd. is also an agent of other Laboratory equipment with preferential price.
Business philosophy: Integrity, quality, customer service
Entrepreneurial spirit: The first-class quality, Good corporate reputation, Perfect customer service
