| Prod Model: |
JHDQ-00A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Source: |
220V/50Hz |
| Power: |
240va |
| Atmospheric Pressure: |
70.0kpa~106.0kpa |
| Traction Force: |
10n~970n Adjustable |
| Certification: |
ISO13485 |
Product Description

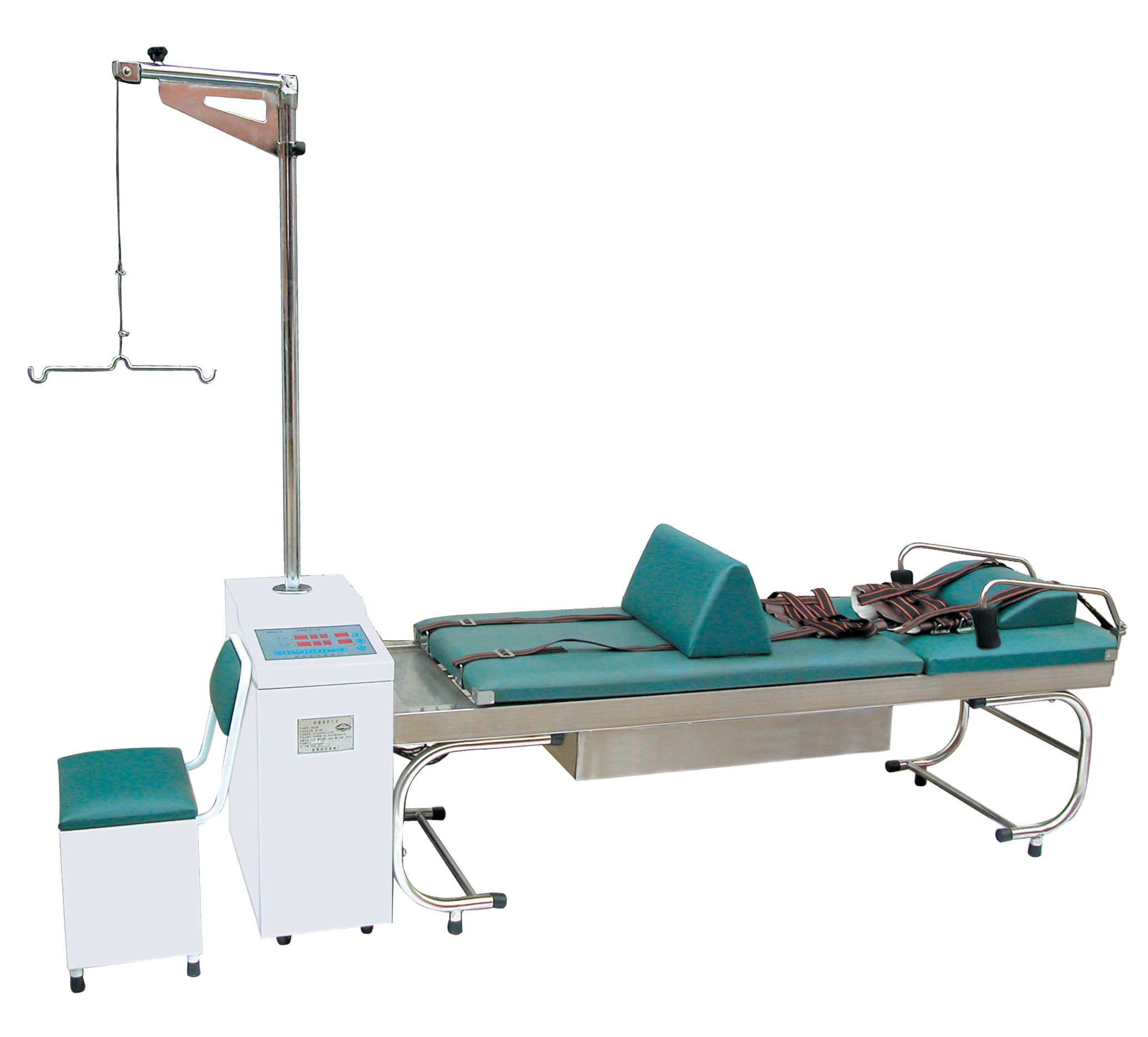

Traction Bed JHDQ-00A
Function
This product is designed for cervical vertebra and lumbar vertebra disease.
Features
1. This product is made from traditional treatment on Chinese injured bone field & massage theorem and mechanics principle of human biology.
2. This product is suitable for treatment about neck and waist locus, it does drive the neck & waist automatic, there are two types tractors of continuously and intermittent which to be controlled by PCL. The neck & waist beam can be drived at same time at once touch the button lightly to make your idea into control panel.
3. Touch key to input data control and traction demand, lumbar, cervical traction can be done simultaneously.
Composition and Structure
This product consists of digital tube display console, the main traction bed, cervical traction frame, swing bed top, etc, JHDQ-00A, without swing bedtop. JHDQ-00A main body made of stainless steel.
Specifications
1. Source: 220V/50Hz
2. Power: 240VA
3. Normal Operating conditions:
A) Environmental temperature: 5ºC~40ºC
B) Supply voltage: AC220V± 22V, 50Hz± 1Hz
C) Atmospheric pressure: 70.0kPa~106.0kPa
4. Drive distance for waist: 0~200± 10mm
5. Drive distance for neck: 0~250± 10mm
6. Traction Force: 10N~970N adjustable
7. Neck Traction Force: 10N~294N adjustable
8. Constant traction time: 0~9 minutes, can be set freely, error is not more than ± 30 S
9. Intermittent traction time: 0~90s, can be set freely, error is not more than ± 30 S
10. Total traction time: 1~60 minutes, can be set freely, error is not more than ± 30 S
