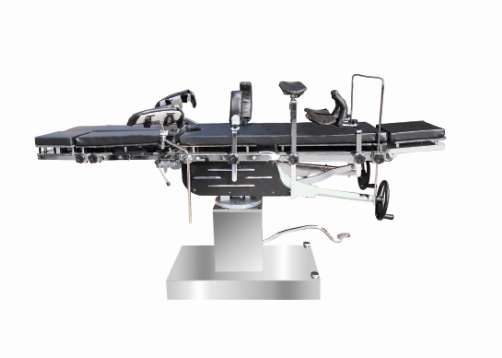

Multi-Purpose Operating Table (Head controlled)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
AJ-3008AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tabletop: |
Double |
| Base Cover/ Pillar Cover: |
Stainless Steel |
| Leg Plate: |
Divided Leg Plate |
| Kidney Bridge Elevation: |
80mm |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
Product Description
This table are compactly designed and sturdily constructed, and may be raised or lowered hydraulically by means of an oil pump. They are suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynecological, obstetrical, urological and oto-rhino-laryngological operations. Various positions can be quickly and safely adjusted. AJ-3008AB is made of double decker plastic; x-ray examination can be available during the operation. Leg section can be opened 90degree and disassemble. It is most convenient for urological operation.The controlling devices, hand wheels and crank handles are mounted at the head-end of the table. All positions of the table are controlled entirely from the head-end. The table is double dimensions. Chassis inside and outside cover are stainless steel. The structures and technical parameters are the same.SPECIFICATIONSTabletop: Double TabletopBase cover/ Pillar cover: Stainless steelLeg plate: Divided leg plateDimensions of Table Top: Overall length.................................2040±40(mm)Width.......................................480 ±20(mm)Dimensions of Sections:Head Rest....................................280×320(mm)Back section..............................500×480(mm)Kidney Bridge..............................84×470(mm) Seat Section....................................370×480(mm)Leg Section....................................510×240(mm)Foot Rest....................................200×240(mm)Table Top from Floor: Max. Height .................................1040±50mmMin. height ....................................800±50 mmRange of Movements:Max. Reversed Trendelenburg ...........................≥50°Max. Trendelenburg....................................≥30°Max. Lateral Tilt....................................≥20°Adjustments of Sections : Head Rest-raised from the horizontal........................≥30°Head Rest-lowered from the horizontal ........................≥90°Back Section-raised from the horizontal........................≥80°Back Section-lowered from the horizontal........................≥8°Kidney Bridge Elevation..............................80mmLeg Section-lowered from the horizontal........................≥90°Leg Section-opened............ .....................≥500Foot Rest-can be kept horizontally or perpendicularly to the Leg Section. USAGE(1) Trendelenburg position, reversed Trendelenburg position and tilt in left or right direction are regulated by one single Hand wheel (2). The movements of the back section is controlled by Hand Wheel (3). For directions for use please see the label attached to the crank sleeve.(2) The kidney bridge is controlled by Crank Handle (1) situated at the center.(3) Both the ascending and descending movements of the table top are controlled by the oil pump. When the products leave the factory, the oil pump has been pumped into the pail, so the oil pump can not ascend. The Consumers must move the cover of the filling aperture at the fop of the oil pump. Use a funnel to refill the oil pump slowly. By pressing down Pedal (4) repeatedly, Press once, the table top will rise up a certain height. When the table top be elevated to the highest position, it can be stops automatically,when the same pedal is pressed to the dead end and not loosen, the table top will begin to descend slowly and gently.(4) The moving and stabilization of the base. By loosening Handle (5) of the base clockwise, the table can move. On the contrary, it can be stabilized.

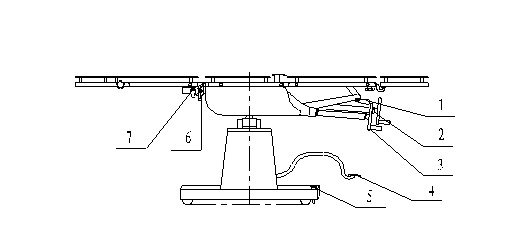

The rotation of the leg section is by Crank Handle(6).The opening movement of the leg section are controlled by Handle(7). | Accessories | Pc(S) |
| Anaesthetic Screen | 1 |
| Shoulder Rest | 2 |
| Arm support | 2 |
| Body Support, Large | 1 |
| Body Support, Small | 1 |
| Knee Crutch | 2 |
| Cushion | 1 |
| Body Restraint Strap | 1 |
| Wristlet | 2 |
CAUTIONS(1) The Head-rest adjustment is adopted by a strict tecth lock. If the position of the head-rest needs adjusting, the tecth lock pole must be first separated and adjusted to suitable position, the got loose, otherwise it is easily damaged.(2) Lubricating oil should be added to every active part, so that the bed can be operated easily and prolong their life. Smear Vaseline over the tracks of the accessories on each side of the bed and the racks under the table, thus preventing it from being rusty.(3) Before putting into use, all attachments should be checked to see if they are locked securely so as to prevent them from loosing or sliding off while used.(4) As the bed has many parts, keep all the accessories in good order.(5) After operating every time, clean the dirt on the bed, keep the bed and accessories clean and prolong their life.(6) The ground must be kept dry. While the floor is washed and scrubed, please try not to make water spill into the plate or on the rotated wheels, thus preventing it from being rusty.(7) It must be repaired and kept clean regularly once a year.(8) In the clinical use, the lateral lean angle of the operating table is bigger than 8 degrees (the standard is equal or bigger than 20 degrees), the user should think the possibility that the patient falls from the table top, and selects a body frame and body belt and so on to ensure the use safety.This device in package should be stored indoor with a relative humidity less than 80%, no erosive air and good ventilation is required. No side-sloping. It can be shipped in regular transportation without crash, oscillation, rain or direct sunlight.
ANJUE MEDICAL, founded in 1998, is a High-tech Enterprise who focuses on the Medical Industry. We specialize in manufacturing Anesthesia Machine, Ventilator, Medical Sterilization Packaging, Sterilizer, Hematology Analyzer, Hemodialysis Machine, RO Water Treatment System, Ultrasound Scanner, Patient Monitor. We have a modern production plant of 68000 square meters in An Qing & 36000 square meters in Tai Xing and more than 20 production lines. Our factory is in accordance with ISO 9001 and ISO13485 quality system requirements. Our products are CE marked, and their performance has reached advanced level in the world. The products are popular in China market and International market with reliable quality, good reputation and excellent after-sale service. We are the honorable member of China Association for Medical Devices Industry (CAMDI).
At the same time, our company is intensive in the healthcare industry. According to the market need, we were holding part of factories which assure us to support the provision of a full range of medical equipment products and solutions. After long time efforts, now our products enlarge to: Anesthesia Machine and Ventilator, Medical Sterilization Packaging, Sterilizer, Operating Room Equipments, Clinical Analytical Equipments, X-ray Machine & Accessories, Ultrasound Scanner & Color Doppler, Diagnostic Equipments, Lithotripter, Dialysis Equipments, Dental Equipments, E. N. T. Equipments, Ophthalmic Equipments, Obstetrics & Gynecology Equipments, Endoscope, Hospital Furniture, Laboratory Equipments, Ambulance & Mobile Medical Clinic etc. We not only provide products, but will also provide installation guidance, marketing support and complete solutions.
Anjue Medical have worldwide distribution network in global countries. We have provided for hundreds of engineers from abroad installation instructions and technical training, and have won their unanimous recognition. Our products have repeatedly won the bid at the United Nations Foundation and the Ministries Of Health of many countries. So far, Anjue Medical's products have beed sold to more then 80 countries in South America, Europe, Africa, Southeast Asia and Middle East.
Anjue Medical is here everyday making efforts to contribute the Global Health.
