| Prod Model: |
FCT-1325W-AT3 |
| Markets: |
North America,South America,Southeast Asia |
| Table Size: |
1600X2640mm |
| Working Size: |
1300X2500X200mm |
| Spindle Rotate: |
6000~24000rpm |
| Engraving Speed: |
12000mm/Min |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
Triple-Spindle |
Product Description
Features:

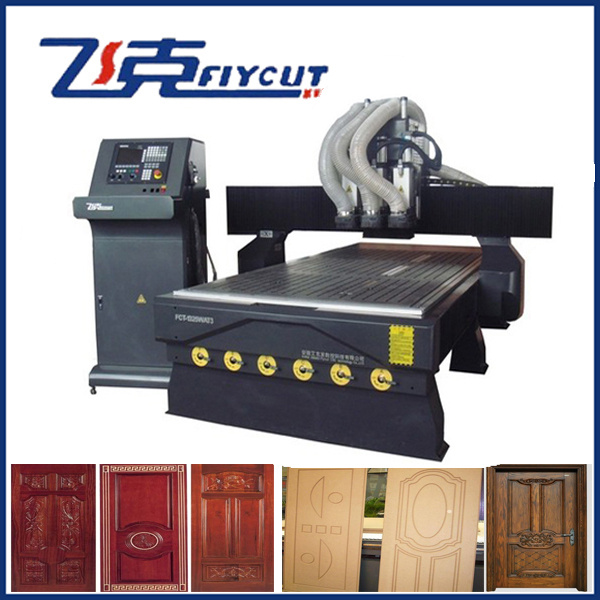

1. This machine use 3 different tools for carving different designs on wood, no need to change tools manully, easy to operate machine and making programme.
2. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
3. The special instruments to eliminate welding stress, high-precision planer ensure the precision and no deformation.
4. The major machine body makes the stability and no shacking in high speed.
5. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
6. The professional mechanical design, scientific structure and generous appearance.
7. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifspan of spare parts.
8. High quality driver motors, spindle motors, cables, inverters,etc.
9. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraviing accuracy.
10. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Special configuration:
Servo motor and driver, large models, imported spindles, etc.
Technical Parameters:
Model | FCT-1325W-AT3 |
| Table size | 1600×2640mm |
| Working size | 1300×2500×200mm |
| Spindle power | 6KW+4KW*2 |
| Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
| Spindle rotate | 6000-24000rpm |
| Motor driver | Stepper motor(Chinese servo motor or imported servo motor is optional) |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | Accuracy gear rack |
| XYZ rails | Imported square rails |
| Mechanical accuracy | <0.03/300mm |
| Data transmission | PC connection directly |
| Support format | G code or HPGL |
| Engraving speed | 12000mm/min |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 2000kg |
FAQS:
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is the delievery time?
For standard machines, it would be 14 days; For non-standard machines and customized machines according to clients specific requirements, it would be 25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner.
