| Prod Model: |
FCT-1325W-AT2 |
| Markets: |
North America,Mid East,Eastern Asia |
| Controlling Mode: |
CNC |
| Spindle Number: |
Double-Spindle |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
According to Customer's Need |
| Warranty: |
1 Year |

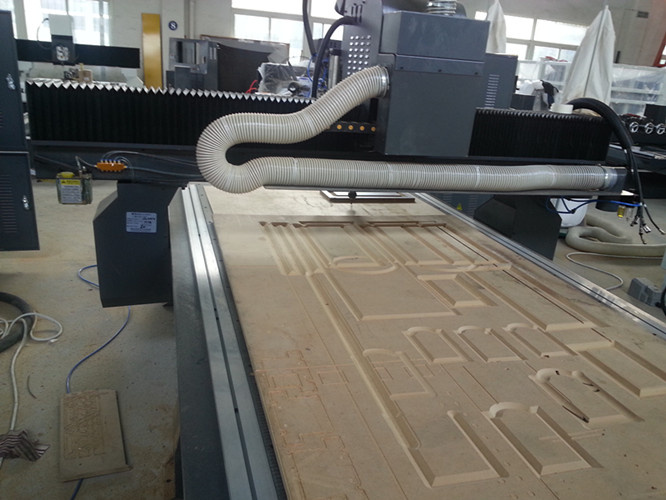

Product Description
Features:
1. This machine use 3 different tools for carving different designs on wood, no need to
Change tools manually, easy to operate machine and making programme.
2. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability
3. The Special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
4. The major machine body makes the stability and no shacking in high speed.
5. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
6. The professional mechanical design, scientific structure and generous appearance.
7. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
8. High quality driver motors, spindle motors, cables, inverters, etc.
9. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraving accuracy.
10. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Applications:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making, instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Special Configuration:
Servo motor and driver, large models, imported spindles, etc.
| Model | FCT-1325W-AT2 |
| Table size | 1600×2640mm |
| Working size | 1300×2500×200mm |
| Spindle power | spindle 5.5kw*2 air cooling |
| Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
| Spindle rotate | 6000-24000rpm |
| Motor driver | Stepper motor(Chinese servo motor or imported servo motor is optional) |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | Accuracy gear rack |
| XYZ rails | Imported square rails |
| Mechanical accuracy | 300mm |
| Data transmission | PC connection directly |
| Support format | G code or HPGL |
| Engraving speed | 12000mm/min |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 1200kg |
