| Prod Model: |
THR-IC-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
multi-bed position available |
| X-ray Examination: |
available |
| Precise Scale System: |
available |
| Auto Contour Function: |
available |
| Controllers: |
Built-in side rail and foot board |
| Bed Exit Alarm: |
available |
| Backrest Manual CPR: |
available |
| Thighrest Manual CPR: |
available |
| Night Light: |
at the bottom of the bed |
| Rechargeable Battery: |
Up to 72 hours of standby time in normal use |
| Material: |
Metal |
| Folded: |
Unfolded |
Product Description

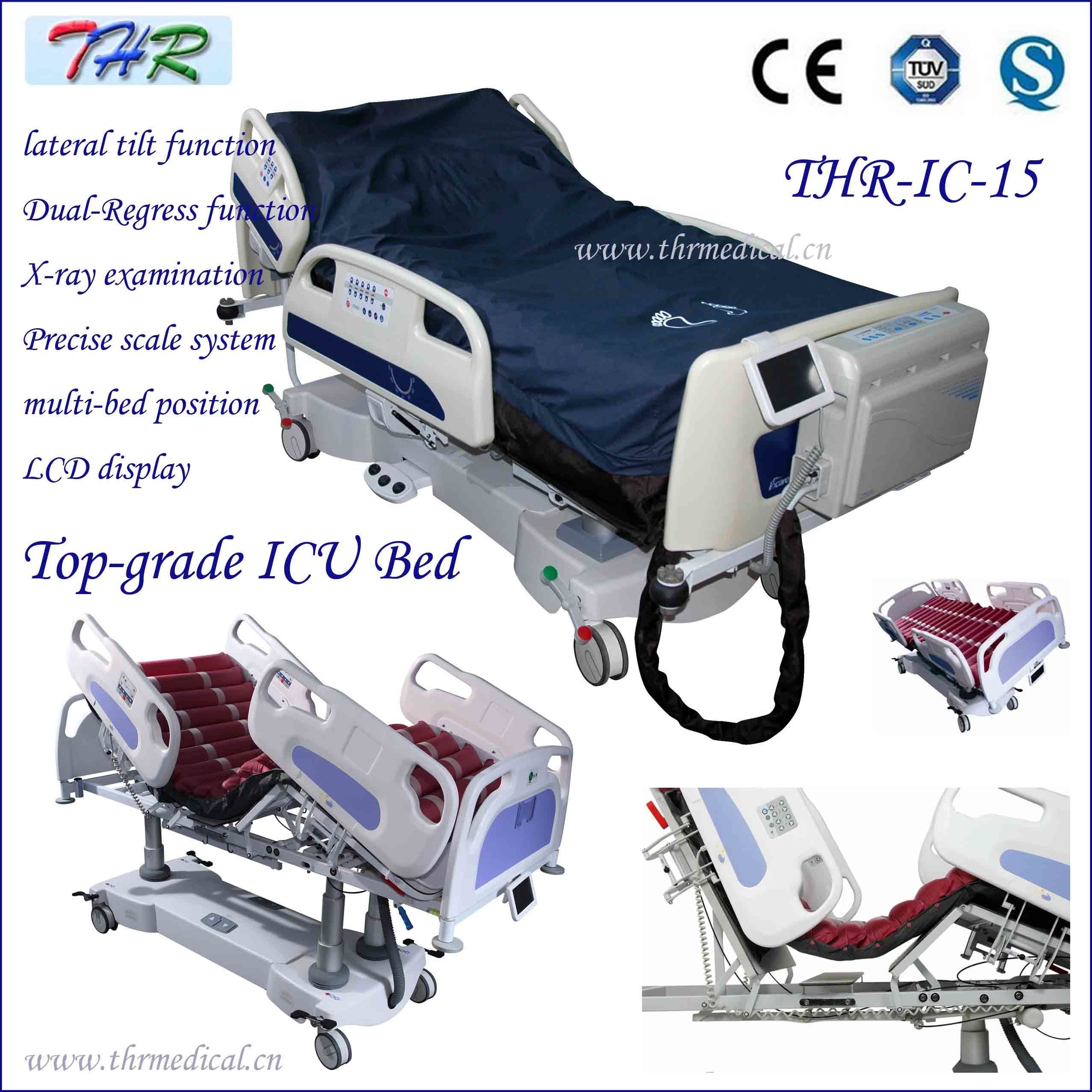

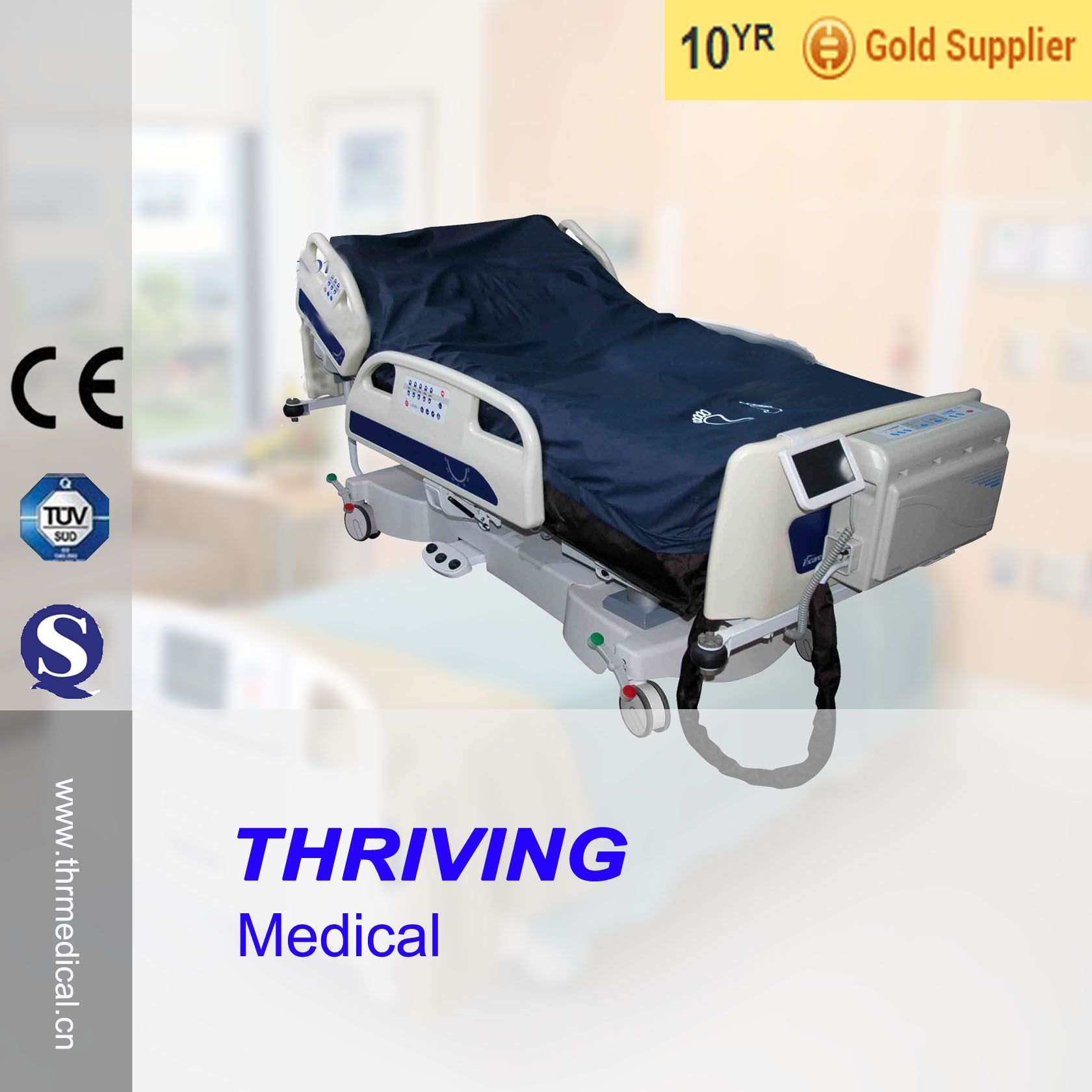

THR-IC-15 Professional ICU Electric Multi-Function Hospital Bed
Features:
1. The bed frame are made of high-quality carbon steel and painting is electrostatic spraying.
2. Completely transparent platform(HPL board) for x-ray examination.
3. X-ray examination tray for backrest.
4. Five functions(electrically):
Height adjustment(5100mm-910mm).
Angle of backrest's inclination 0° - 75°.
Angle of thighrest's inclination 0° - 45°.
Trendelenburg position: 17°.
Anti-trendelenburg position: 17°.
5. Shankrest board can be adjusted by gas spring: 40°.
6. Precise scale system: precision is 100g, absolute and differential weight can be measured.
7. Angle of the lateral tilt:30°.
8. Auto contour function: control backrest and thighrest with one button.
9. Dual-Regress function: The total regress distance is bigger than 200mm, which can prevent the formation of pressure ulcers and avoid the wound spilt.
10. Removable head-board and foot-board (ABS).
11. ABS Separate side rails under CE standards and HBSW standards.
12. Built-in side rail controllers for patient and care giver: Height adjustment, angle adjustments of backrest and thighrest, nursing bells.
13. Colorful Touch screen for caregiver: Electronic medical record, position adjustment, absolute weight and differential weight, angle of lateral tilt, time the Trendelenburg, Anti-Trendelenburg position and lateral tilt, lock out function.
14. One-key position of central control panel: cardiac chair/ fowler position/ CPR position/ examination position/ trendelenburg position.
15. Emergency stop function: The bed can be stopped at all times and positions for one button.
16. Bed Exit Alarm.
17. Backrest manual CPR: Fast lay down the backrest segment to 0°manually.
18. Thighrest manual CPR.
19. Backrest and trendelenburge/anit-trendelenburge angle indicator.
20. Foot controller: adjust the platform height.
21. Fifths castor: move easily in a narrow space.
22. Night light (at the bottom of the bed).
23. Rechargeable battery back-up: Up to 72 hours of standby time in normal use and capable of 50 cycles in case of power failure.
24. Four corner bumpers.
25. Central brake and steering system: with all direction, linear direction and complete lock.
26. Patient fixed bands.
27. IV pole and four IV pole holder faucets.
28. Eight Drainage bag holders.
29. Waterproof ventilative memory foam mattress.
30. Protective pad for Lateral tilting (1 set, 5 pieces).
31. Extensional mattress.
32. Waterproof Grade IPX4.
Trusty quality:
Yy0571-2005/IEC60601-2-381996 special safety requirements of medical electrical beds
GB9706.1-1995/IEC601-1-1998 safety requirements of electrical system for medical device
Certified by ISO9001: 2000 and ISO 13485: 2000.
CE mark.
| Specification: |
| DC Linear Actuators | 2 |
| Lifting Columns | 3 |
| Safety supporting load (include the mattress and the accessories) | 230kg |
| Overall Length | 2000mm |
| Overall Length with extended platform | 2200mm |
| Overall Width | 1030mm |
| Height Adjustment | 510mm-910mm |
| Angle of back rest segment inclination | 0°- 75° |
| Angle of thigh rest segment inclination | 0°- 45° |
| Angle of Shank rest segment inclination | 0°- 40° |
| Trendelenburg/Anti-trendelenburg | ±17° |
| Angle of lateral tilting | 30° |
| Weight system precision | 100g |
| Backrest segment regress distance | 120mm |
| Thighrest segment regress distance | 90mm |
| Backrest x-ray cassette holder | 420mm×650mm |
| Diameter of Castors | 150mm |
| Voltage | 220~230V, 50Hz~60Hz Standard
(110~127V, 50Hz~60Hz Option) |
| Waterproof Mattress(ICM-500) | 1 |
| Night light | 1 |
| X-ray examination tray for backrest | 1 |
| IV pole | 1 |
| Trapeze Bar | Optional |
Wireless monitoring system
(wireless control software for nurse station) | Optional(software is free) |
