| Prod Model: |
THR-FC011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
900*640*900mm |
| Warranty Time: |
18 Months |
| Certificate: |
Ce, ISO, TUV etc. |
| Metal Type: |
High Quality Stainless Steel |
| Heating Power: |
3.6-4.2kw |
| Working Voltage: |
220-380V |
| Kind: |
Food Trolley |
| Folded: |
Unfolded |
| Usage: |
Hospital etc., Bar, Salon, Shop |
| Material: |
Metal |
Product Description

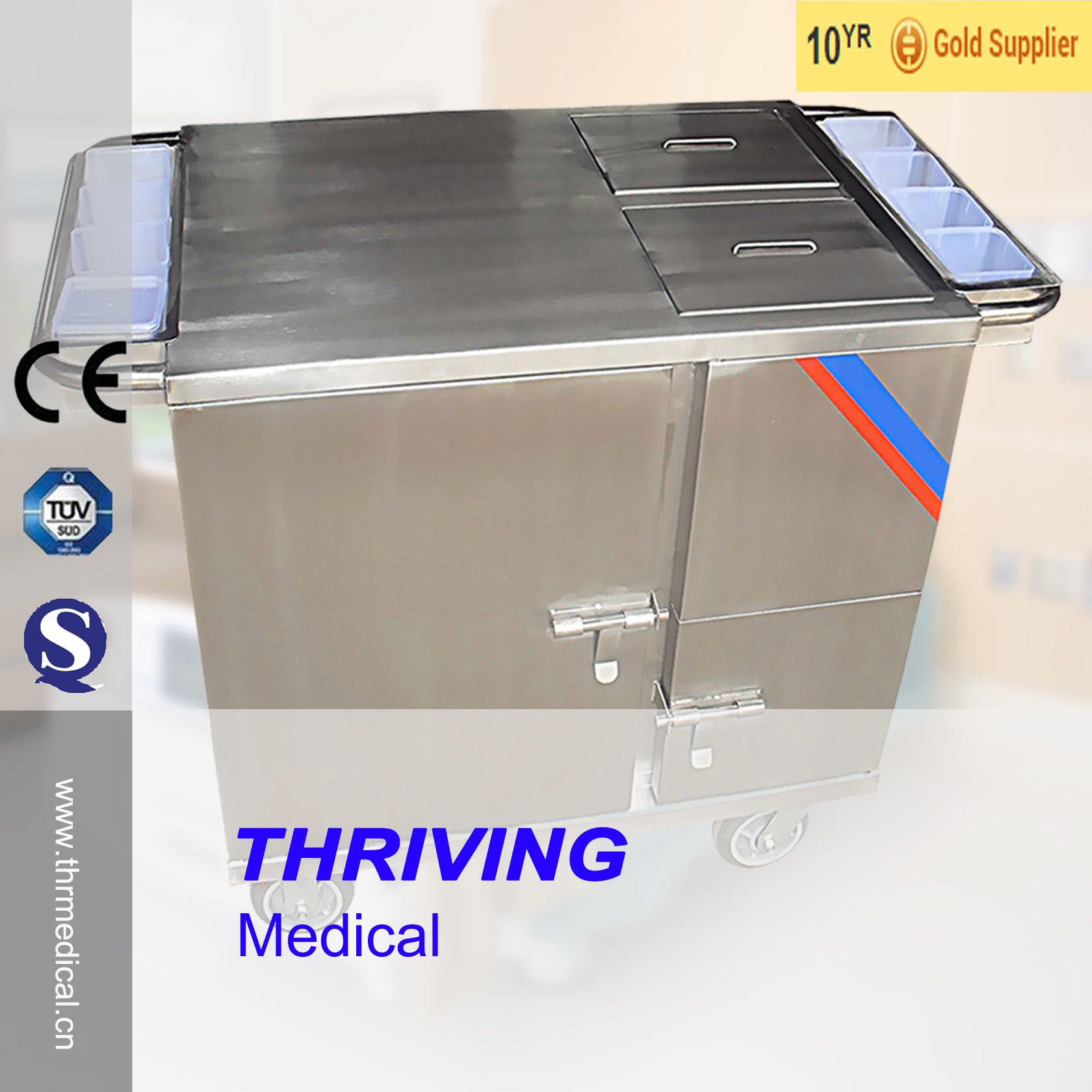

THR-FC011 Hospital electric heating food trolley
Specification:1. Insulated food trolley's capacity of food plates 48pcs
2. Heating time(80~110° C): 10~20min
3. Heating power: 3.6-4.2KW
4. Working voltage: 220-380V
5. Weight: 115kgStandard Accessory:1. Stainless steel fast foot plate: 48PCS
2. Stainless steel soup bucket: 2PCS size: 200*290*290mm
3. Detachable stainless steel trough with 4 small boxes insideOperating Methods:1. When the food cart is in working contitions, it should be placed on the horizontal ground.
2. Inject enough clean water to the water plate in the bottom of the cart.
3. Put in all the foods to the cart, then close the airproof-door.
4. Connect the food cart with electric controller box as well as connect it with power.
5. Push the switch to turn on the food cart, the light indicator in green shows us it is in working condition. The working time could be set range from 1 to 20 minutes according to detailed requirements.
6. After heating food for 10-20mins, power would be cut off automatically by the time-controller.
7. Checking the temperature on the board, it should be 80-100° C. Because of the heat retaining function, the temperature will raise about 10° C.
8. Due to different temperature in different seasons, the heating time should be set flexiblely.

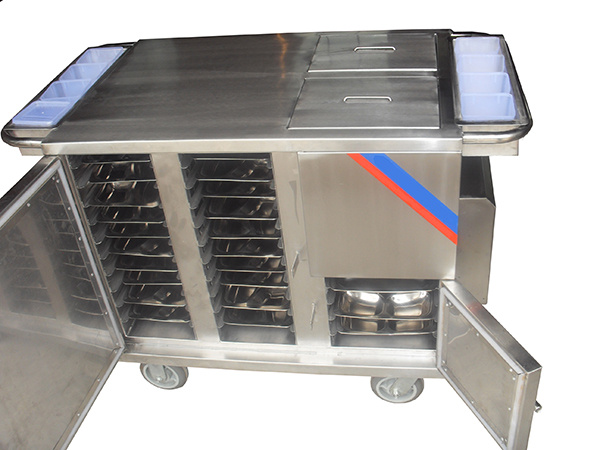

Picture Show:

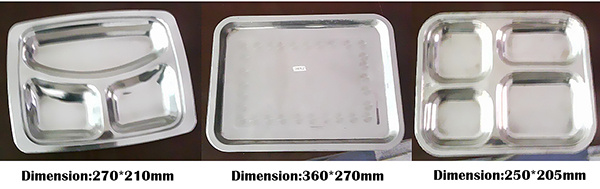

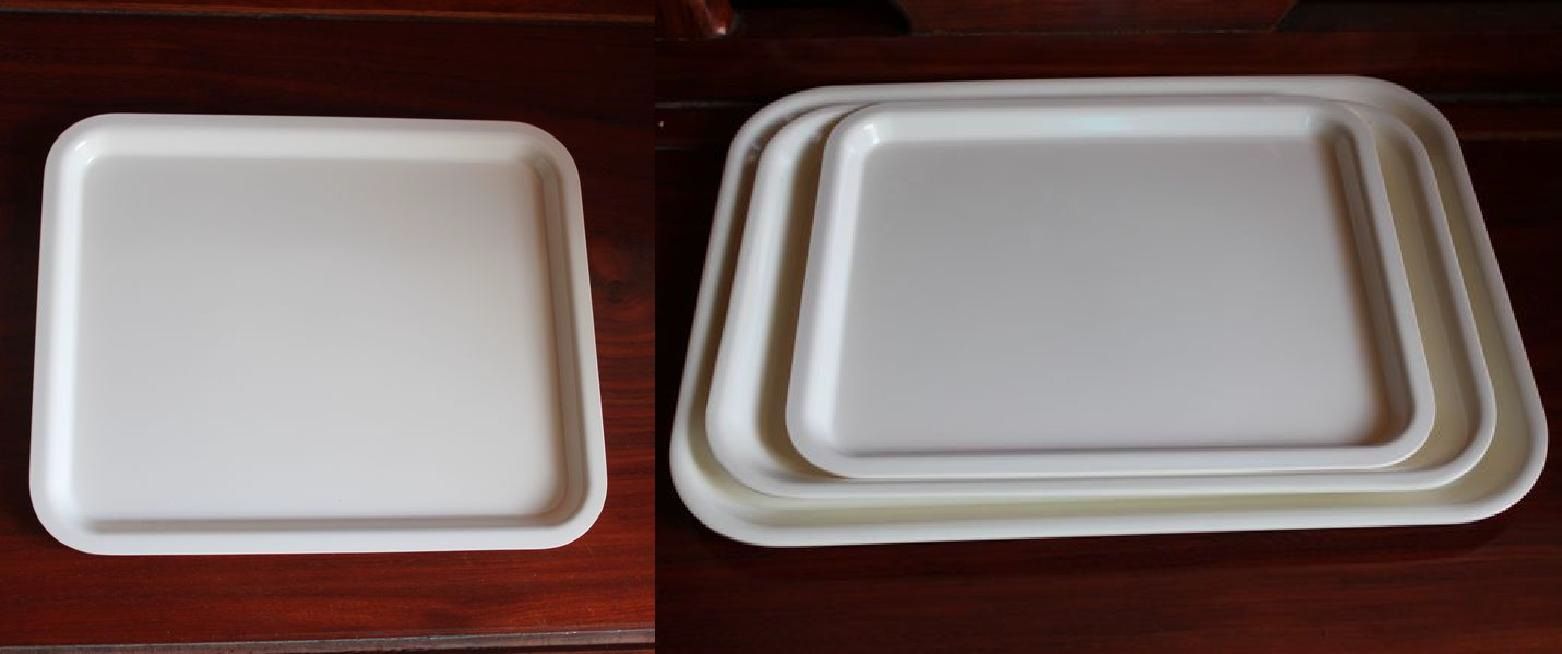

Food plates also available:
Our advantages
1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controlling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countries
Suzhou Thriving Medical Equipment Corp., was established in 2000. We are mainly engaged in hospital furniture, medical equipments, and funeral products etc. With strong technical force, advanced equipment and five large-scale production lines, we can complete deep processing of various metal products, specializing in the furniture and hardware products. In order to best meet customers' requirements, we have implemented a quality control system that is in strict accordance with ISO9001 standards.
Abut on Shanghai, Suzhou, Wuxi, Changzhou and other medium-large cities, we enjoy very convenient transportation arising from the Huning Expressway, Riverine expressway, Zhangjiagang port and Shanghai port. This advantageous geographical position has also facilitated our products' exportation and helped us expand overseas market and seek for overseas partnership.
Adhering to the management principle of 'Honesty, Dependence, Advance, Innovation', we offer excellent service and superior quality products at very competitive price to customers from around the world. Please feel free to contact us for more details.
