Suzhou Thriving Medical Equipment Corp. >> Thr-FC005 Stainless Steel Hospital Food Delivery Trolley

Thr-FC005 Stainless Steel Hospital Food Delivery Trolley

Thr-FC005 Stainless Steel Hospital Food Delivery Trolley
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: THR-FC005
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No: Thr-FC005
Quality: CE and ISO
Heating Power: 1.5kw
Customization: Available
Kind: Dinner Trolley
Export Markets: Global
Working Voltage: 220~380V
Heating Time: 10~20 Minutes
Warranty Time: 18 Months
Folded: Unfolded
Certification: CE

Product Description



Product Description

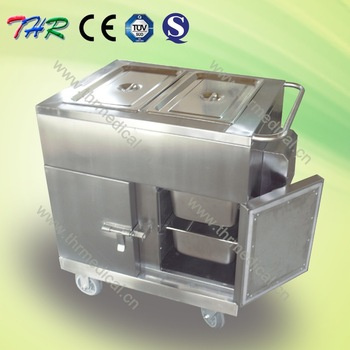

Full Stainless Steel Electric Heating Food Trolley(THR-FC005)

Dimensions: 860 x 660 x 850mm
Inserts:
1. Full with full lid: 530 x 325 x 150mm, 22 litres, stainless steel
2. Half with half lid: 325 x 265 x 150mm, 11 litres
3. One third with one third lid: 325 x 176 x 150mm, 7 litres
4. One quarter with one quarter lid: 265 x 162 x 150 mm (l x w x d), 5 Litres
5. One sixth with one sixth lid: 176 x 162 x 150 mm ( l x w x d), 3 litres
6. One ninth with one ninth lid: 176 x 108 x 150mm ( l x w x d) 1.5 litres

Specifications:
1. Heating time(80-110 ° C) 10-20M
2. Heating power: 1.5KW
3. Working voltage: 220-380V(according your country's standard voltage)
4. Weight: 115kg
5. Material: High quality stainless steel
Thickness of the bottom: 1.5mm
Thickness of other parts: 1.2mm

Operating Methods:

1. When the food cart in working contitions, should be placed in the horizontal ground.
2. Inject enough clean water to the water plate in the bottom of the cart.
3. Put in all the foods to the cart, close the airproof-door.
4. Connect the food cart with electric controller box, also connect with power.
5. Push the switch to turn on the food cart, the light indicator in green show us in working condition. The working time could be fixed 1-20mins according to detail requirement.
6. When heating for10-20mins, power would be cut off automatically by the time-controller.
7. Checking the temperature on the board, should be 80-100° C. Because of the Heat retaining functions, the temperature will raise about 10° C.
8. As to different temperature each season, the heating time should be fixed flexible.
Suzhou Thriving Medical Equipment Corp., was established in 2000. We are mainly engaged in hospital furniture, medical equipments, and funeral products etc. With strong technical force, advanced equipment and five large-scale production lines, we can complete deep processing of various metal products, specializing in the furniture and hardware products. In order to best meet customers' requirements, we have implemented a quality control system that is in strict accordance with ISO9001 standards.

Abut on Shanghai, Suzhou, Wuxi, Changzhou and other medium-large cities, we enjoy very convenient transportation arising from the Huning Expressway, Riverine expressway, Zhangjiagang port and Shanghai port. This advantageous geographical position has also facilitated our products' exportation and helped us expand overseas market and seek for overseas partnership.

Adhering to the management principle of 'Honesty, Dependence, Advance, Innovation', we offer excellent service and superior quality products at very competitive price to customers from around the world. Please feel free to contact us for more details.
