Prod Model: |
THJR-FC005 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Quality: |
Ce and ISO |
Working Voltage: |
220~380V |
Heating Power: |
1.5kw |
Heating Time: |
10~20 Minutes |
Customization: |
Available |
Warranty Time: |
18 Months |
Kind: |
Dinner Trolley |
Folded: |
Unfolded |
Usage: |
Hospital etc., Bar, Salon, Shop |
Product Description

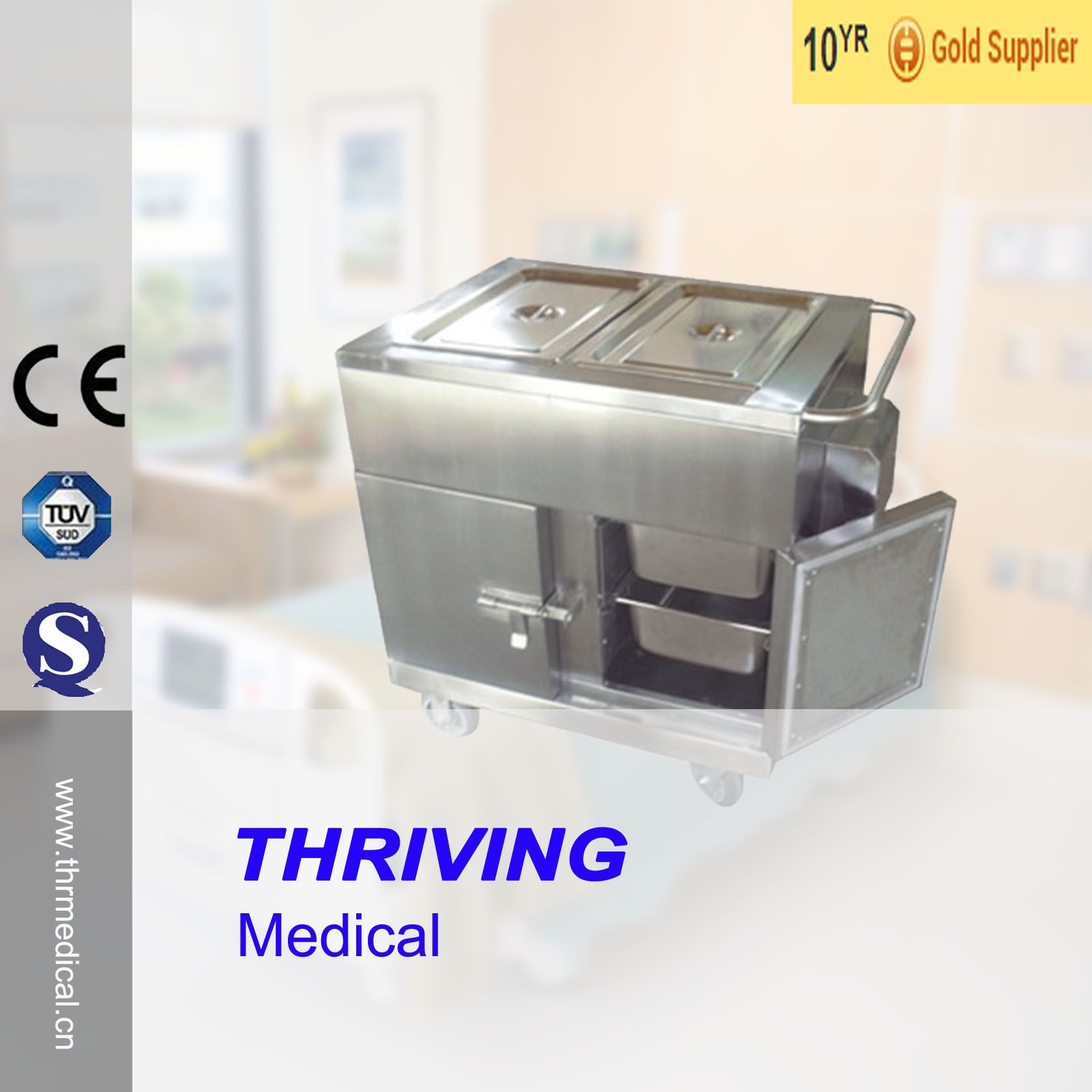

THR-FC005 Hospital Stainless Steel Dinner Trolley
Brief Introduction:
-Dimension:860*660*850mm
-Weight:115kg
-48pcs fast food plate
-Electric heating

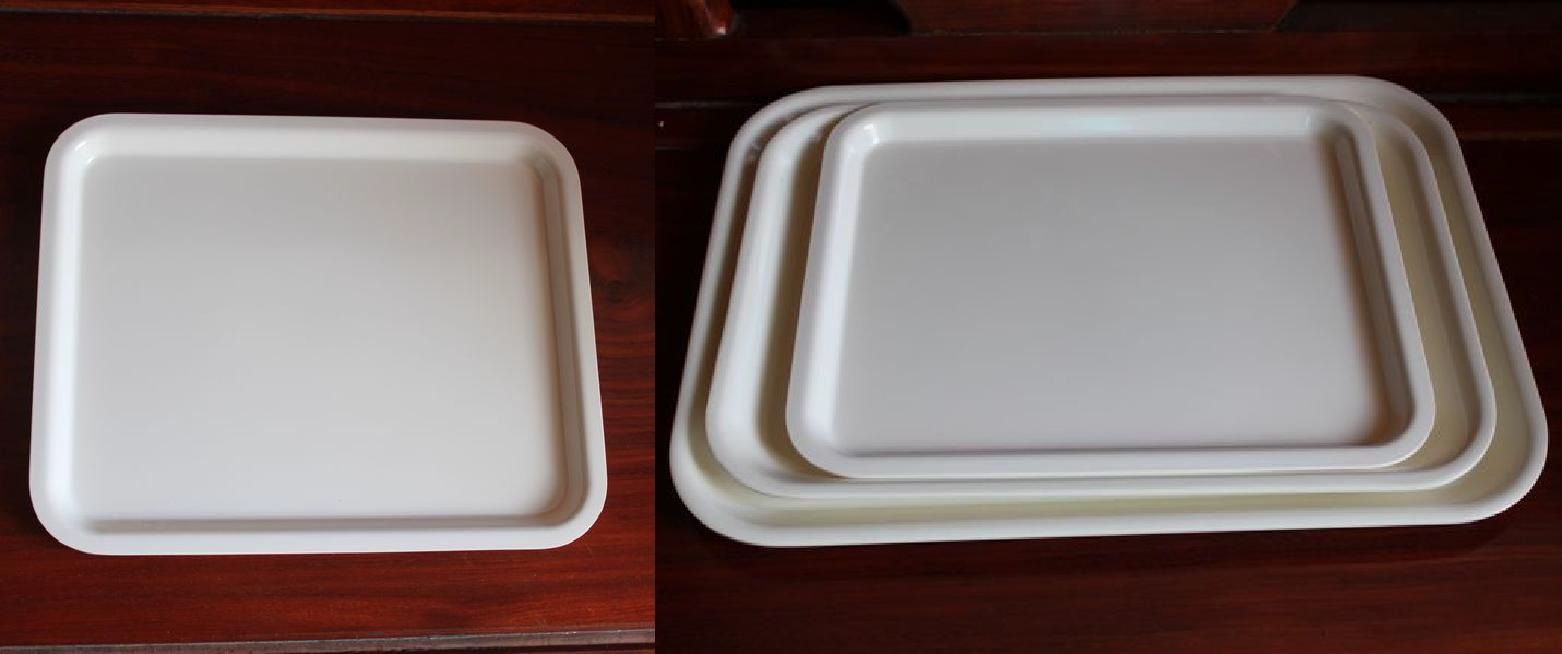

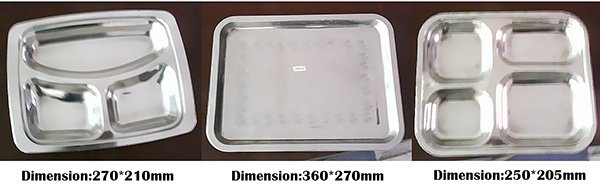

Picture Show:Food plates also available: Our advantages:
1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controlling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countries
Specification |
Size: | 860*660*850mm |
Material: | High quality stainless steel |
Heating time(80~110°C): | 10~20min |
Heating power: | 1.5kw |
Working voltage: | 220~380V |
Weight: | 115kg |
Inserts |
Full with full lid: | 530*325*150mm,22 litres,stainless steel |
Half with half lid: | 325*265*150mm,11 litres |
One third with one third lid: | 325*176*150mm,7 litres |
One quarter with one quarter lid: | 265*162*150mm,5 litres |
One sixth with one sixth lid: | 176*162*150mm,3 litres |
One ninth with one ninth lid: | 176*108*150mm,1.5 litres |
Operating Method |
1. When the food cart is in working conditions, it should be placed on the horizontal ground. |
2. Inject enough clean water to the water plate in the bottom of the cart. |
3. Put all food into the cart,then close the airproof-door. |
4. Connect the food cart with electric controller box,also connect with power. |
5. Push the switch to turn on the food cart,the light indicator in green shows us it is in working condition.The working time could be set 1-20mins according to detailed requirement. |
6. When heating for 10-20mins,power would be cut off automatically by the time-controller. |
7. Checking the temperature on the board, make sure that it's 80-100°C.Because of the Heat retaining functions,the temperature will raise about 10°C. |
8. As to different temperature in different seasons,the heating time should be set flexibly. |
