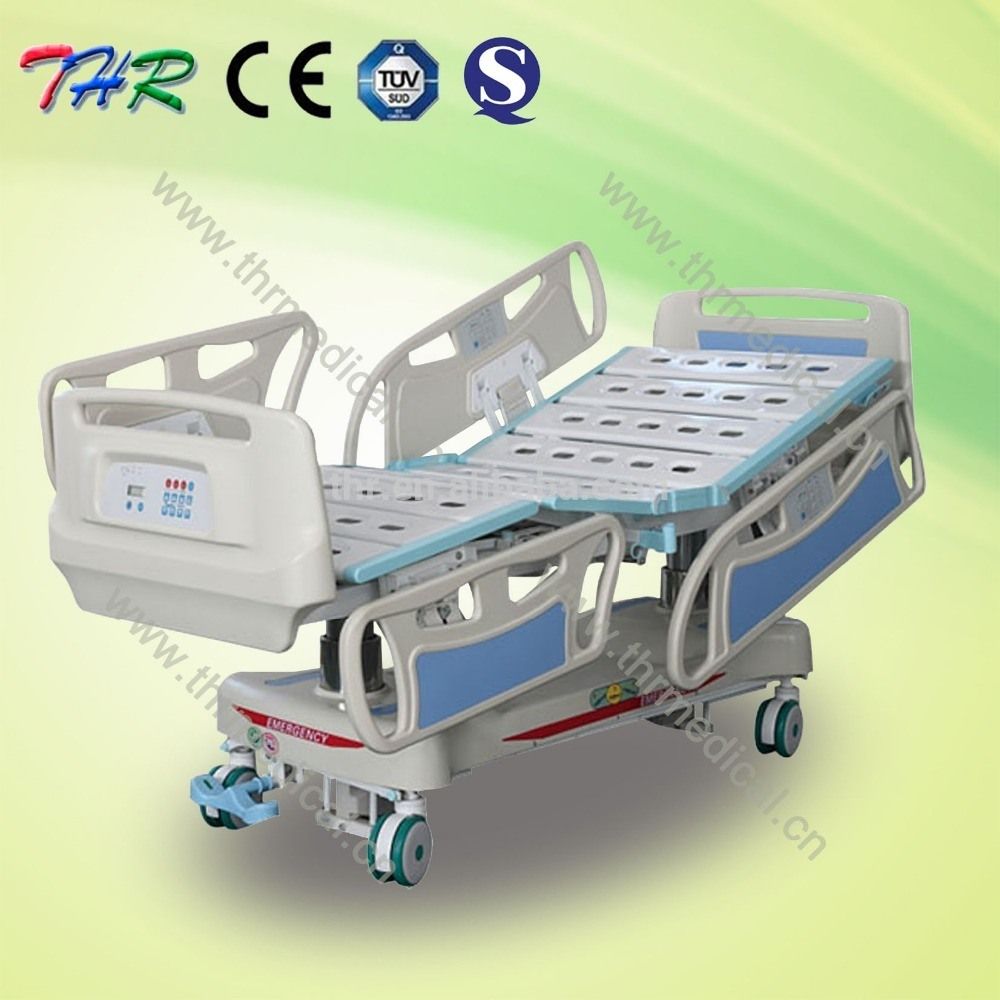

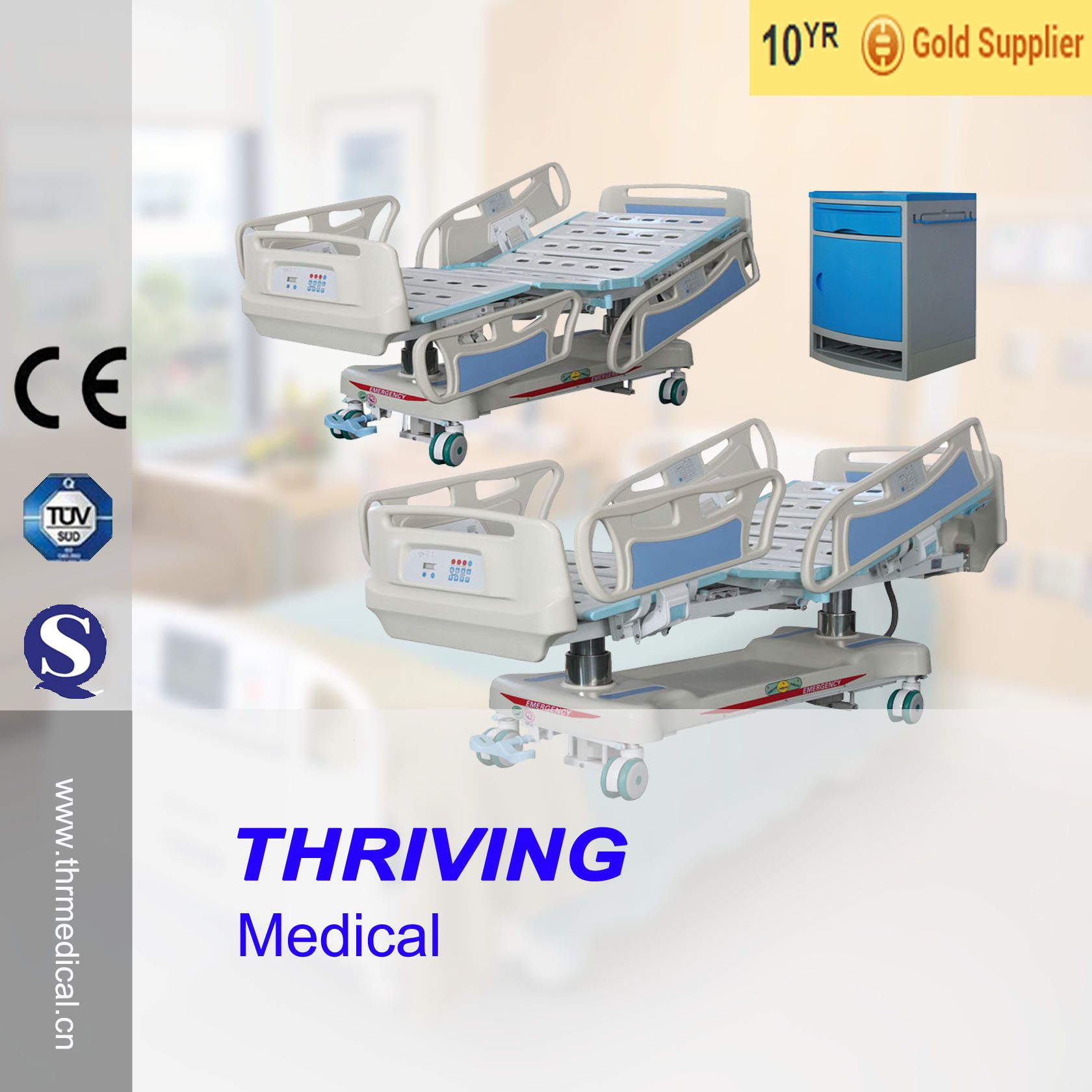

Thr-Eb53001 Professional Multi-Function Electric Hospital ICU Bed

Prod Model:	THR-EB53001
Material:	Plastic
Type Of Hospital Bed:	Electric Bed
Folded:	Folded
Using Ambient:	Hospital
Numbers Of Function:	Five-function
Certification:	TUV

Product Description



THR-EB5301 professional Electric hospital ICU bed


SPECIFICATION:
Safety load	250kg
Overall Length	2300mm
Overall Length with extended pallet	2500mm
Overall Width	1080mm
Bed board	2100mm*840mm
Mattress Size	2100mm*840mm*80mm
Height Adjustment	520mm-820mm
Angle of back rest segment inclination	0-75
Angle of leg rest segment inclination	0-45
Angle of lateral tilt	30
Trendelenburg / Anti-trendelenburg	17
Weight system precision	50g
Backrest X-ray cassette holder	420mm*650mm
Slip X-ray cassette holder	470mm*470mm
Double-faced caster size	150mm


Innovationist of sickroom products
1.  Angle of head-section's upward is 0°- 75°
2. Height adjustment (520mm-820mm)
3. Angle of thigh-section's upward is 0°- 45°
4. Trendelenburg/Anti-trendelenburg ±10°
5. Auto contour function:
Allows head section and thigh section to adjust simultaneously into a chair position. The upright position of the patient, in the chair position, helps to promote easier eating and bed pan use while in the bed.

6. built-in side rail controllers for patient:

Control by key-press, with head section adjustable, thigh section adjustion, trendelenburg and reverse trendelenburg adjustable, auto contour function and power control.

Multi-bed position
Droved by the actuator of German Dewert, the bed can change the height of the pallet ,the inclination angle of backrest segment and thigh rest segment, and the angle of longitudinal and lateral tilt. Mean while IC-15 has one-key preprogrammed CPR position, cardiac-chair, Fowler position ,and shock position . It meets all the requirement from caregivers and patients.
7. Central control panel(key-press) for caregiver

With Key-press button to control head section raise & lower, thigh section raise & lower, hilow,

Trendelenburg & Reverse Trendelenburg, side rail lock function, power on and weight display.
 8. Emergency stop function:
The bed can be stopped at all times and positions for one button.
9. Rise-and-fall guide wheel, Central brake and steering system

10. Manual CPR set (backrest segment):
Adjust the backrest segment manually 0°- 75° fast.

11. Angle indicator:
Angle scale showing the bed board upward angle.
1 Angle of lateral tilt : 30
2 Pre-programed positions: cadiac-chair, Fowler position, shock position, CPR position, 3examination position.
3 Patient surface is made of HPL which is X-ray translucent and water-resistant.
Manual and electric CPR
4 2 operating system: 6inch touch screen, handset.
5 Scale system with high precision up to 50g. Absolute and differential weight can be displayed and weight digit can be frozen.
6 Dual-Regress function
7 X-ray tray behind backrest segment for upper body examination, and below the pallet for whole body examination
