| Prod Model: |
THR-EB5105 |
| Material: |
Plastic |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
TUV |
Product Description

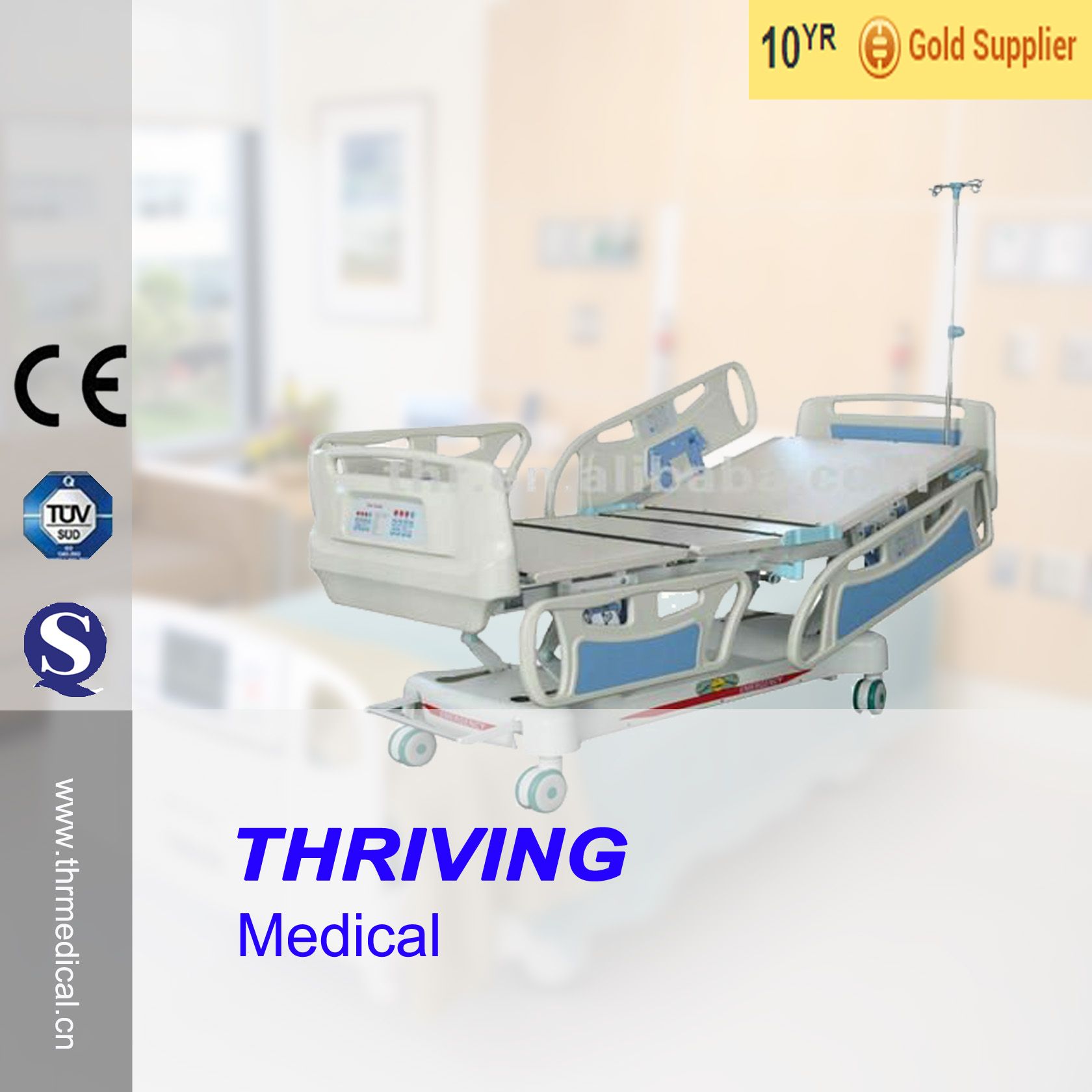

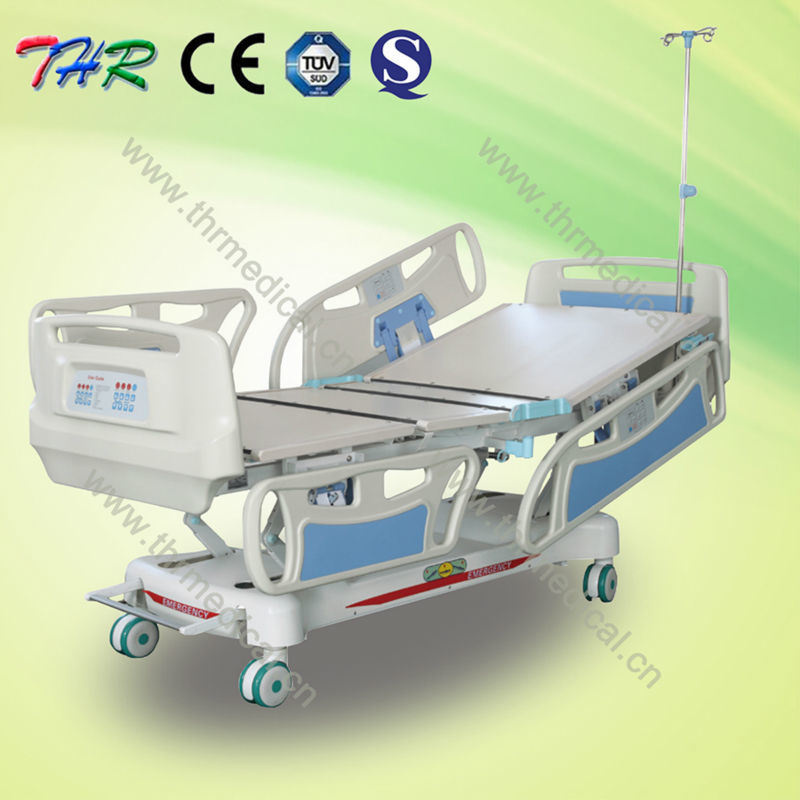

THR-EB5105 New Product hospital medical ICU bed with X-ray Functions
Specification:
Dimension: 2230*990*450/720mm
patient touching surface 90*196cm
Top Coat: Electrostatic Powder coating
Bed Frame: Cold-Rolled Steel Tube
Bed Base: Cold-Rolled Steel Sheet
Bed base may X-ray
Maximum safe load 250kg
Nurse Controller at bed end board (key-press)-1 unit
Rail Controller (key-press)-4 units
Imported Linak Electrical Motor-4 units
Angle Scale---2 units
Manual CPR Handle-1 unit
Function:
1. Height adjustment (450mm-720mm)
2. Angle of backrest's upward 0°- 75°
3. Angle of legrest's upward 0°- 45°
4. Trendelenburg/Anti-trendelenburg ±10°
5. Auto contour function:
Allows back board and thigh board to adjust simultaneously into a chair position.
6. Emergency stop function:The bed can be stopped at all times and positions for one button.
Angle Scale
Central control panel(key-press) for caregiver
With Key-press button to control head up & down, leg up & down, low-hi & hi-low, Trendelenburg & Reverse Trendelenburg, side rail lock function, and power on. Very easy to operation! Professional ICU Bed!
Built-in side rail controllers for patient:
Control by key-press, with back board upward, leg board upward, trendelenburg / anti-trendelenburg adjustable, auto contour function and power control.
Manual CPR set (backrest segment): Ajust the backrest segment manually 0°- 75° fast.
