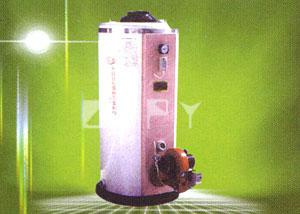

The Olpy Safety Obh Vertical Hot Water Boiler
| Price: |
US $ 1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TC-10 |
| Heat Transfer Area (M2): |
0.60 |
| Rated Output (Kcal/H): |
1.5 |
| Weight(Kg): |
31 |
| Function: |
Hot Water Boiler |
| Fuel: |
Electric Heating |
| Installation: |
Packaged Boiler |
| Structure: |
Water Tube |
| Media: |
Hot Water |
| Water Circulation: |
Natural Circulation |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
A |
| Burning Style: |
Chamber Combustion Boiler |
| Usage: |
Power Station |
Product Description
THE OLPY SAFETY OBH Vertical Hot Water Boiler
Detailed introduction:Character:
1:Safety
2:Using the Japanese advanced technology, imported Japanese burner and boiler automatic control system, With overheating, lack of oil, water shortage automatic alarm protection device,it is used safe and reliable.
convenient
3:Without special management, you can adjust and determine the boiler operation parameters indoors .
Burning full
4:The surrounding environment pollution pollution-free, accord with environmental protection requirement.Techinical ParametresRated output
(kcal/h) | 1.5 | 3 | 5 | 7 | 10 | 15 | 20 | 30 | 40 | 60 | 80 |
heat transfer area
(m2) | 0.60 | 0.70 | 1.65 | 2.24 | 3.47 | 5.20 | 6.60 | 8.76 | 10.40 | 15.4 | 20 |
| water capacityL) | 22 | 50 | 78 | 100 | 260 | 300 | 620 | 840 | 1120 | 1560 | 2000 |
| Water interface size pipe thread | G1"
inside Filament | G1"
inside Filament | G1/2"
inside Filament | G1/2"
inside Filament | G2"
inside Filament | G2"
inside Filament | G2/2"
inside Filament | G2/2"
inside Filament | G3
flange | G3
flange | G4
flange |
| Heating area(m2) | 100-150 | 180-240 | 240-360 | 360-480 | 600-800 | 800-1000 | 1200-1600 | 1800-2400 | 2400-3200 | 3600-4600 | 4600-6000 |
| shower nozzle/set | 2-3 | 5-6 | 7-9 | 9-12 | 15-20 | 18-25 | 30-40 | 45-50 | 55-60 | 90-100 | 100-120 |
| Heat efficiency(%) | 86 | 86.5 | 91 | 86 | 86 | 88 | 88 | 88 | 88 | 91 | 91 |
| weight(kg) | 31 | 50 | 230 | 260 | 350 | 430 | 620 | 950 | 1250 | 1600 | 2100 |
Dimension
mm) | length | 520 | 572 | 670 | 670 | 800 | 800 | 1040 | 1070 | 1050 | 1500 | 2090 |
| width | 520 | 572 | 670 | 670 | 800 | 800 | 1040 | 1070 | 1050 | 1500 | 1670 |
| height | 900 | 1300 | 1405 | 1505 | 1730 | 1860 | 2175 | 2180 | 2360 | 2800 | 2700 |
| Burner model | TC-10 | TC-30 | SL-3l | OM-2 | OM-2 | OM-3 | OM-3 | TC-51W | TC-61W | TC-120 | TC-150 |
| Oil consumption (kg/h) | 1.7 | 3.4 | 5.2 | 6.8 | 11.4 | 16.5 | 22 | 32 | 43.3 | 62 | 85 |
| Power source V,Hz | 220,50 | 380,50,200,50 |
| Fuel | Diesel oil,fuel gas | Diesel oil,heavy oil,fuel gas |
About us:
Qingdao Olympia Heat Energy Equipment Co., Ltd
Qingdao Olympia Heat Energy Equipment Co., Ltd is a professional manufacturer of burners. Sino-Japan Liaoyang Olympia Co., Ltd was founded at the beginning of 1990s through borrowing the advanced technology from Japan. Under the demand for further development, Qingdao Olympia Heat Energy Equipment Co., Ltd was established in 2003.
The company main products include burners of fuel oil, fuel gas, and mixed oil and gas including all kinds of specifications from small-size civil burners to large-scale industrial burners. Meanwhile, the company also produces heat energy equipments such as hot water boiler, air furnace, incinerator for medical purpose, etc. Nearly two years, the company also developed no-emission environmental protection and energy saving toilet, infrared sauna equipments and far-IR road-building heating equipment.
The company has set up distributions branches in large and medium cities such as Shenyang, Shanghai, Nanjing and Changchun. The company Technology Department will sincerely offer users with technical consultation and personnal training, and continue to provide users with high-quality products and services according to the operation tenet of honesty, innovation and high-grade quality, on the basis of the high technology, and through fully attracting the advanced technology and experience in China and abroad.
Products are widely used in hotels, restaurants, highway, fitness center, sauna bath, factories. etc, especially for environmental protection toilets, where no sewage treatmentWe have recieved the high praise from our customers. Company products with environmental protection, energy saving, safe, convenient and efficient characteristics, win a good business prestige and higher well-knownness, the sales network spreads all over the country.
We applaud warmly persons of various social communities to come for business negatiation and consultation or giving instructions. Let us contribute together to energy sources industry of China.CONTACT US:Qingdao Olympia Heat Energy Equipment Co.,Ltd
Address: No.7,2 Section Jiaozhou Bay Industrial park, Jiaozhou, Qingdao, Shandong, China
Tel: 86 18463580786
Fax: 86 532 86679617
Web: www.olpy.net Hey, buddy, hurry up,
write me a letter or email to
or make me a call to + 00 86 18463580786
for more discussion on the product.
Thank you for taking time on viewing our goods.
Wish you a nice day!
Qingdao Olympia Heat Energy Equipment Co., Ltd is a professional manufacturer of burners. Sino-Japan Liaoyang Olympia Co., Ltd was founded at the beginning of 1990s through borrowing the advanced technology from Japan. Under the demand for further development, Qingdao Olympia Heat Energy Equipment Co., Ltd was established in 2003.
The company main products include burners of fuel oil, fuel gas, and mixed oil and gas including all kinds of specifications from small-size civil burners to large-scale industrial burners. Meanwhile, the company also produces heat energy equipments such as hot water boiler, air furnace, incinerator for medical purpose, etc. Nearly two years, the company also developed no-emission environmental protection and energy saving toilet, infrared sauna equipments and far-IR road-building heating equipment.
The company has set up distributions branches in large and medium cities such as Shenyang, Shanghai, Nanjing and Changchun. The company Technology Department will sincerely offer users with technical consultation and personnal training, and continue to provide users with high-quality products and services according to the operation tenet of honesty, innovation and high-grade quality, on the basis of the high technology, and through fully attracting the advanced technology and experience in China and abroad.
Products are widely used in hotels, restaurants, highway, fitness center, sauna bath, factories. etc, especially for environmental protection toilets, where no sewage treatmentWe have recieved the high praise from our customers. Company products with environmental protection, energy saving, safe, convenient and efficient characteristics, win a good business prestige and higher well-knownness, the sales network spreads all over the country.
We applaud warmly persons of various social communities to come for business negatiation and consultation or giving instructions. Let us contribute together to energy sources industry of China.
