| Prod Model: |
OBH-30W |
| Chimney Flange Mouth Size: |
180X480mm |
| Rated Oil Conbustion: |
31.4Tkg/H |
| Output: |
104kcal/H |
| Equipments Weight: |
1927kg |
| Function: |
Hot Water Boiler |
| Fuel: |
Oil-Fired |
| Installation: |
Assembled Boiler |
| Structure: |
Water Tube |
| Media: |
Hot Water |
| Water Circulation: |
Natural Circulation |
| Drum Placement: |
Horizontal Boiler |
| Pressure: |
High Pressure |
| Manufacturing Level: |
A |
| Burning Style: |
Chamber Combustion Boiler |
| Usage: |
Power Station |
Product Description
Hull-type hot water boiler
Character:
1.The boiler furnace bears atmospheric pressure, safe and reliable, boiler water is softener water, which makes the internal scale not easily , greatly extend the boiler service life
2.Boiler adopts water heat exchanger, bearing pressure can reach 1MPa, especially suitable for high pressure, remote water supply
3.Because of there are two heat-exchanger composition,so users can supply hot water with different temperature and different usage according to various requirements.
4.The boiler control system adopts Japanese brand electrical components, increasing the reliability of the boiler control,in water level control,we use omron renewal appliances to control
5.Boiler has big water volume, strong heat storage capability.When boiler stops, it still can put regenerative heat out through heat exchange
6.Adapting copper pipe heat exchanger, with high heat transfer efficiency and reducing the boiler exhaust temperature.Also making the thermal efficiency enhancement,fuel economy.
Technical parameters:
| Parameters | Unit | Boiler model |
| OBH-30W | OBH-60W | OBH-90W | OBH-120W | OBH-230W |
| rating | MW | 0.35 | 0.7 | 1.05 | 1.4 | 2.8 |
| thermal power | 100000kcal/h | 30.0 | 60.0 | 90.0 | 120.0 | 240.0 |
| Rated working pressure | MPa | 0 | 0 | 0 | 0 | 0 |
| Rated water output temp | C | 85 | 85 | 85 | 85 | 85 |
| Rated feed-water temp | C | 20 | 20 | 20 | 20 | 20 |
| Circulating water volume | t/h | 12 | 24 | 36 | 48 | 96 |
| Design power | % | 90 | 92 | 91 | 90 | 91.8 |
| Rated oil conbustion | kg/h | 31.4 | 62.8 | 95.2 | 126.5 | 253 |
| Boiler heated area | m2 | 12 | 22.8 | 36.2 | 42 | 107 |
Max continuous output

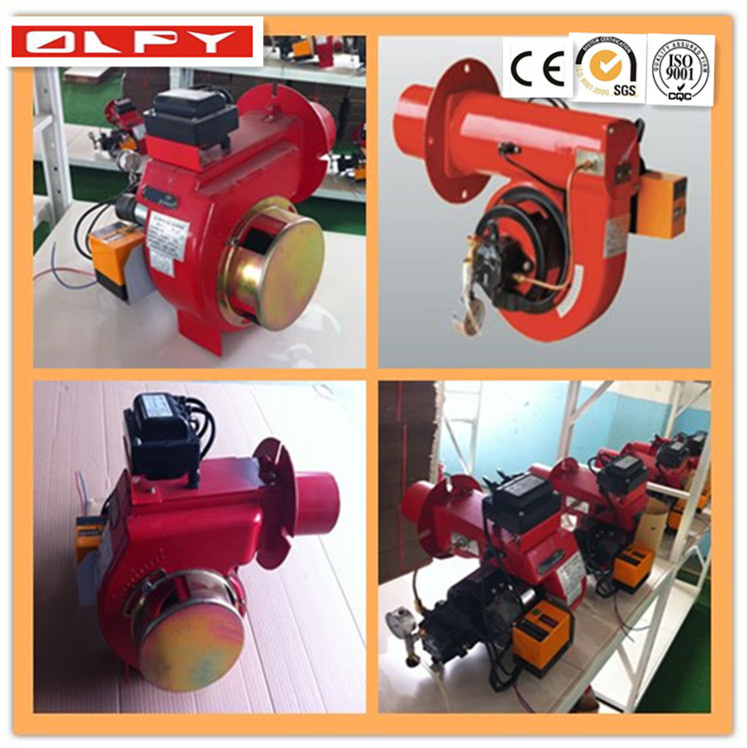

5C-65C) | 104Kcal/h | 30 | 60 | 90 | 120 | 240 |
| highest pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Designing flow | m3/h | 15 | 30 | 45 | 60 | 120 |
| Exchange area | m2 | 6 | 17 | 21 | 25 | 50 |
| Equipments weight | kg | 1927 | 2960 | 3259 | 4900 | 5931 |
| Dimensions | mm | 2385x1650x1965 | 2930x1750x2065 | 3125x1850x2155 | 3385x1950x2295 | 3805x2130x2415 |
| Burner model | mm | LT-51W | LT-120 | LT-150 | LT-200 | LT-401 |
| Chimney flange mouth size | mm | 180x480 | 180x480 | 280x600 | 290x780 | 320x800 |
| Empty-pipe mouth size | mm | DN65 | DN100 | DN125 | DN125 | DN175 |
| Water inlet connection size | mm | DN80 | DN80 | DN100 | DN100 | DN125 |
| Water outlet connection size | mm | DN80 | DN80 | DN100 | DN100 | DN125 |
| Sewage interface size | mm | DN32 | DN50 | DN50 | DN50 | DN50 |
| Thermocouple interface size | mm | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Instrument interface size | mm | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Water-electrode interface size | mm | G3/8" | G3/8" | G3/8" | G3/8" | G3/8" |
| Exchanger|Interface flange size | mm | DN80 | DN80 | DN100 | DN100 | DN125 |
| Exchanger|Interface flange size | mm | DN50 | DN50 | DN80 | DN80 | DN100 |
About us:
Qingdao Olympia Heat Energy Equipment Co., Ltd

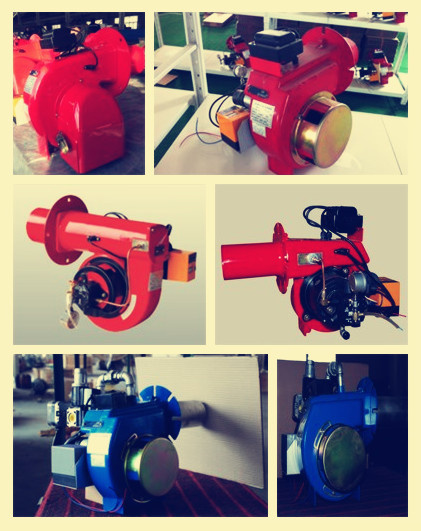

Qingdao Olympia Heat Energy Equipment Co., Ltd is a professional manufacturer of burners. Sino-Japan Liaoyang Olympia Co., Ltd was founded at the beginning of 1990s through borrowing the advanced technology from Japan. Under the demand for further development, Qingdao Olympia Heat Energy Equipment Co., Ltd was established in 2003.
