| Prod Model: |
FSL-100 |
| Color: |
Gray/Black |
| Control Type: |
No-off |
| Fuel Quantity(Kg/H): |
30-60 |
| Model Of Combustion Engine: |
Om-3/Lt-81 |
| Power Source: |
380V(50Hz) |
| Fan Power: |
4+4 |
| Export Markets: |
Global |
| Materials: |
Special Ceramic Refractories |
| Application: |
Solid Waste |
| Name: |
Incinerator |
Product Description

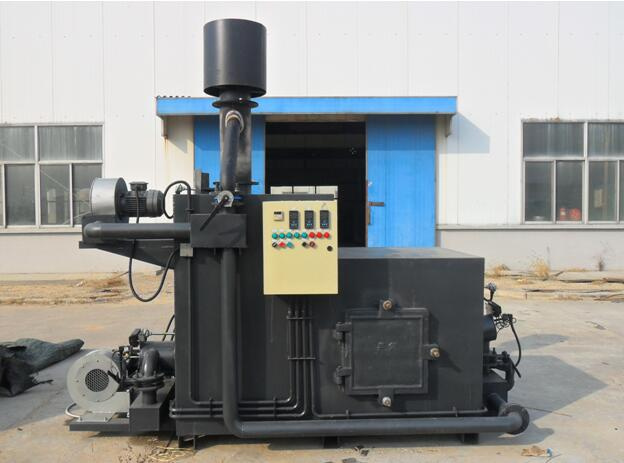

FSL-100 Medical Waste Incinerator
The medical waste incinerator of FSL-100 technical parameters| Burning waste | Medical waste |
| Fuel | Diesel |
| Processing capacity | 100kg/time |
| Combustion chamber size | 1700mm×600mm×900mm |
| Blower | Power 4kw 4kw |
| Door size | 600mmx900mm |
| Running voltage | 380V 50Hz |
| Weight | 5.5t |
The medical waste incinerator of FSL-100standard configuration | No | Name | Amount | Specifications | Notes |
| 1 | Incinerator | 1 | Q235 steel refractories | Main part |
| 2 | The 2 combustion chamber and the combustion chamber mixed | 1 | Q235 steel refractories | Installed in the main body |
| 3 | Electric box | 1 | | The main body
|
| 4 | Combustion burner | 1 | OM-3 | The main body
|
| 5 | Second burning burner | 2 | LT-51 | |
| 6 | Thermocouple | 2 | 1100ºC | The main body
|
| 7 | Operational procedures | 1 | | The main body
|
The medical waste incinerator air exhausting | Exhaust air | The first time dedication(kg/h) | The second time dedication(kg/h) |
| SO2 | 0.279 | 0.163 |
| NOx | 0.286 | 0.219 |
| Smoke and Dust | 0,293 | 0.172 |
| Smoke blackness | <1 | <1 |
Note: 1.The disposal quantity may be increased when the decompound is burned. 2. For the finally order,factory would offer some accessories for free.3. The medical waste is decompound under the high temperature.The incinerator machine is smokeless and odorless, friendly to the environment.4. Burning temperature could be adjust according to customer requirements and burning waste. Note:.The disposal quantity may be increased when the decompound is burned. 2. For the finally order,factory would offer some accessories for free.3. The medical waste is decompound under the high temperature.The incinerator machine is smokeless and odorless, friendly to the environment.4. Burning temperature could be adjust according to customer requirements and burning waste.Schematic Diagram:
| No | Name |
| 1 | Combustion Fan |
| 2 | Primary Burner |
| 3 | Inlet of Garbage |
| 4 | Electric Cabinet |
| 5 | Secondary Burner |
| 6 | Fan of Secondary Burner |
| 7 | Cooling Fan |
| 8 | Chimney |
Trade Term: MOQ: 1 set Loading Port: Qingdao portPacking: packed in wooden or nude packageDelivery Time: 20 days from receive the PrepaymentPayment Terms: T/T, 100% PrepaymentFOB Qingdao unit price: USD15000/unit for oil-fired;USD23000/unit for gas-fired
