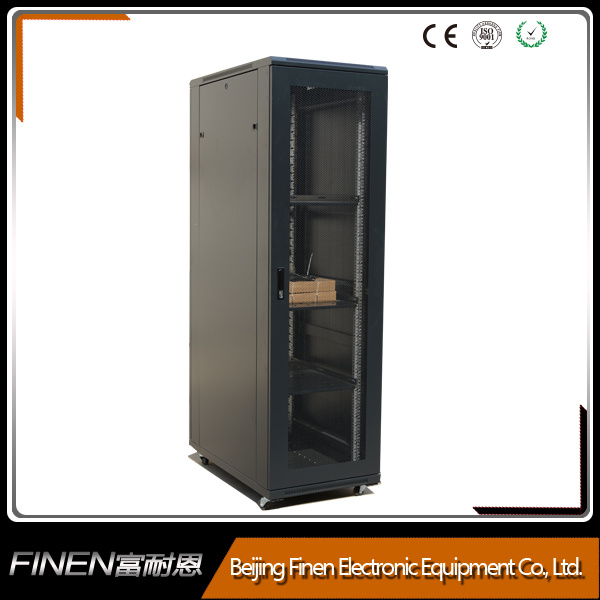

Telecommunication Stainless Steel 19'' Rack Network Cabinet

Prod Model:	A3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	18u,22u,27u,32u,37u,42u
Width:	600mm, 800mm
Depth:	600mm, 800mm, 1000mm
Feature:	Floor Standing Cabinet
Surface Finish:	Powder Coating
Color:	Black, Gray, White
Door:	Flat Mesh
Material:	SPCC Cold Rolled Steel
Loading Capacity:	800kg
Type:	Network Cabinet
Fan Number:	Two
Usage:	Remote Monitoring System
Certification:	RoHS
Installation:	Vertical
Condition:	New

Product Description

Telecommunication Stainless steel 19'' rack network cabinet

1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service

Product information:
1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 18u, 22u, 27u, 32u, 37u, 42u, 47u
3). Loading Capacity: 800kgs(1763.7lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches
8). Doors: Vented mesh front and rear doors with handle locks
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

Features:
1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:
Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughend glass front door with air holes on door stripe, vented mesh rear door, handle locks
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series 4u, 6u, 9u, 12u wall mountable rack cabinets
We are always developing the new design according to customer demands.

Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.

Package contents of FINEN A3 Series
No.	Component name		Quantity	Unit	Material		Remark
1	Top Cover		1	pc	SPCC cold rolled steel T1.2
2	Fan Unit		1	pcs	SPCC cold rolled steel T1.2		With 2/4 fans
3	Mounting Profile		4	pcs	Zinc plated  T2.0
4	Mounting rails		6	pcs	SPCC  T1.5		4pcs for lower 32U
5	Frame		2	pcs	SPCC  T1.2
6	Lock		2	pcs			handle lock
7	Front Door		1	pc	SPCC  T1.2		vented mesh
8	Rear Door		1	pc	SPCC  T1.2		vented mesh
9	Side Panel		2	pcs	SPCC  T1.2		Removable
10	Bottom Panel		1	pcs	SPCC  T1.2
11	Screw		20	pcs	---		40pcs for over 32U
12	Square Nut		20	pcs	---		40pcs for over 32U
13	Castor		4	pcs	Steel
14	Adjustable leveling feet		4	pcs	Steel
15	Other components are available according to request
Specification of FINEN A3 Series
Model No.		Capacity(U)				Width(mm)		Depth(mm)
A36647		47U				600		600
A36847						600		800
A36947						600		900
A36047						600		100
A36147						600		1100
A36247						600		1200
A36642		42U				600		600
A36842						600		800
A36942						600		900
A36042						600		1000
A36142						600		1100
A36242						600		1200
A36637		37U				600		600
A36837						600		800
A36937						600		900
A36037						600		1000
A36137						600		1100
A36237						600		1200
A36632		32U				600		600
A36832						600		800
A36932						600		900
A36032						600		1000
A36132						600		1100
A36232						600		1200
A36627		27U				600		600
A36827						600		800
A36927						600		900
A36027						600		1000
A36622		22U				600		600
A36822						600		800
A36922						600		900
A36022						600		1000
A36618		18U				600		600
A36818						600		800
A36918						600		900
A36018						600		1000
