Beijing Finen Electronic Equipment Co., Ltd. >> Telecom Cabinet 19'' Equipment Server Cabinet

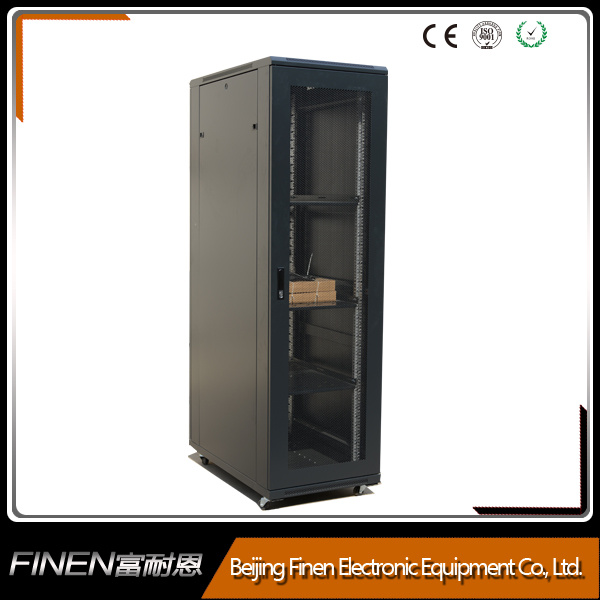

Telecom Cabinet 19'' Equipment Server Cabinet

Telecom Cabinet 19'' Equipment Server Cabinet
Price: US $ 160-200/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: A3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Capacity: 18u,22u,27u,32u,37u,42u
Material: SPCC Cold Rolled Steel
Loading Capacity: 800kg
Width: 600mm,800mm
Depth: 600mm,800mm,1000mm
Color: Black,Gray,White
Feature: Floor Standing Cabinet
Surface Finish: Powder Coating
Optional Service: OEM
Certificate: ISO
Type: Server Cabinet
Fan Number: Four
Usage: Network Integration System
Certification: RoHS
Installation: Vertical
Condition: New

Product Description

Telecom Cabinet 19'' equipment server cabinet
1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-10 days)
4). High quality & reasonable price

Product information:

1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 18u, 22u, 27u, 32u, 37u, 42u, 47u
3). Loading Capacity: 800kgs(1763.7lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches
8). Doors: Vented mesh front and rear doors with handle locks
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

Features:

1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:

Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughend glass front door with air holes on door stripe, vented mesh rear door, handle locks
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series 4u, 6u, 9u, 12u wall mountable rack cabinets
We are always developing the new design according to customer demands

Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.

All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
Package contents of FINEN A3 Series
No.Component nameQuantityUnitMaterialRemark
1Top Cover1pcSPCC cold rolled steel T1.2
2Fan Unit1pcsSPCC cold rolled steel T1.2With 2/4 fans
3Mounting Profile4pcsZinc plated  T2.0
4Mounting rails6pcsSPCC  T1.54pcs for lower 32U
5Frame2pcsSPCC  T1.2
6Lock2pcs
handle lock
7Front Door1pcSPCC  T1.2vented mesh
8Rear Door1pcSPCC  T1.2vented mesh
9Side Panel2pcsSPCC  T1.2Removable
10Bottom Panel1pcsSPCC  T1.2
11Screw20pcs---40pcs for over 32U
12Square Nut20pcs---40pcs for over 32U
13Castor4pcsSteel
14Adjustable leveling feet4pcsSteel
15Other components are available according to request
Specification of FINEN A3 Series
Model No.Capacity(U)Width(mm)Depth(mm)
A3664747U600600
A36847600800
A36947600900
A36047600100
A361476001100
A362476001200
A3664242U600600
A36842600800
A36942600900
A360426001000
A361426001100
A362426001200
A3663737U600600
A36837600800
A36937600900
A360376001000
A361376001100
A362376001200
A3663232U600600
A36832600800
A36932600900
A360326001000
A361326001100
A362326001200
A3662727U600600
A36827600800
A36927600900
A360276001000
A3662222U600600
A36822600800
A36922600900
A360226001000
A3661818U600600
A36818600800
A36918600900
A360186001000
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
