| Prod Model: |
FCT-2018C&W-8S |
| Markets: |
North America,Southeast Asia,Mid East |
| Rotary Length: |
1300mm |
| Working Size: |
2000X1800X200mm |
| Spindle Power: |
Water Cooling 2200wx8 |
| Net Weight: |
1100kg |
| Engraving Speed: |
10000mm/Min |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
Six Spindles |
Product Description
Features:
1. The lathe is founded by industrial pipe weilding, box-type structure to ensure the high stability.
2. The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3. The major machine body makes the stability and no shacking in high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechnical design, scientific structure and generous appearance.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7. High quality driver motors, spindle motors, cables, inverters, etc.
8. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensuure high engraving accuracy.
9. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:

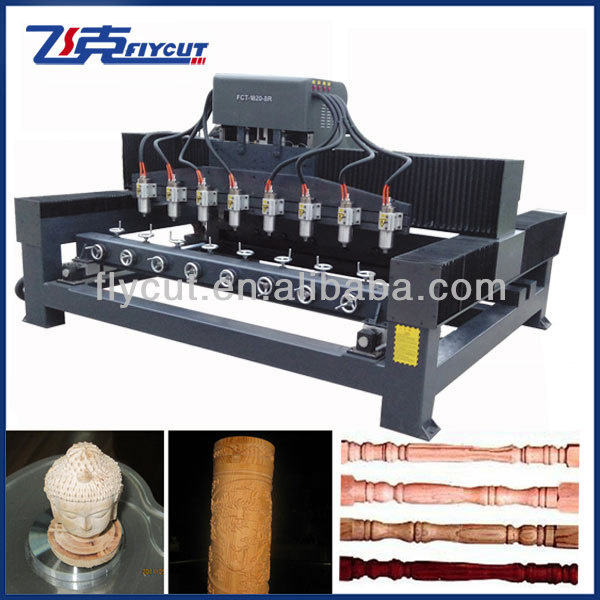

Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.
Technical Parameters:
| Model | FCT-7090C&W-4S | FCT-1618C&W-4S | FCT-1625C&W-4S | FCT-2515C&W-8S | FCT-2018C&W-8S |
| Rotary diameter | ∮230 | ∮230 | ∮230 | ∮250 | ∮250 |
| Rotary length | 800mm | 1300mm | 2000mm | 1500mm | 1300mm |
| Flat working size | 700×900×200mm | 1600×1800×200mm | 1600×2500×200mm | 2150×1500×200mm | 2000×1800×200mm |
| Spindle power | Water cooling 1500W×4 | Water cooling 1500W×4 | Water cooling 2200W×4 | Water cooling 2200W×8 | Water cooling 2200W×8 |
| Spindle rotate | 6000--2400rpm |
| Motor driver | Stepper motor driver (Chinese servo motor and Japan servo motor is optional) |
| Tool diameter | ∮3.175,∮4,∮6mm | ∮3.175,∮6,∮12.7mm |
| Machine structure | Industry square tube structure | industry square structure,table moving |
|
| Transmission | XY ball screw, Y high accuracy gear rack | XYZ TBI ball screw |
|
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | <0.03/300mm |
| Engraveing speed | 8000mm/min | 10000mm/min |
| Data transmission | PC-connection directly |
|
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 600kg | 100kg | 1200kg | 3500kg | 1300kg |
The reason that you choose us :
1. One year warranty for the whole machineand maintenace for lifetime.
2. Free installation,testing,training before shipping .
3. Advice for the best solutions for your requirements.
4.Meet CE, ISO9001 standards.
5. High precision with reasonable price.
