| Prod Model: |
VCT-2515 FR-8H -TM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Condition: |
New |
| 2D Working Size(X*Y): |
2500*1500* 250mm |
| Spindle Power: |
Water Cooling 2200W*8 PCS |
Product Description

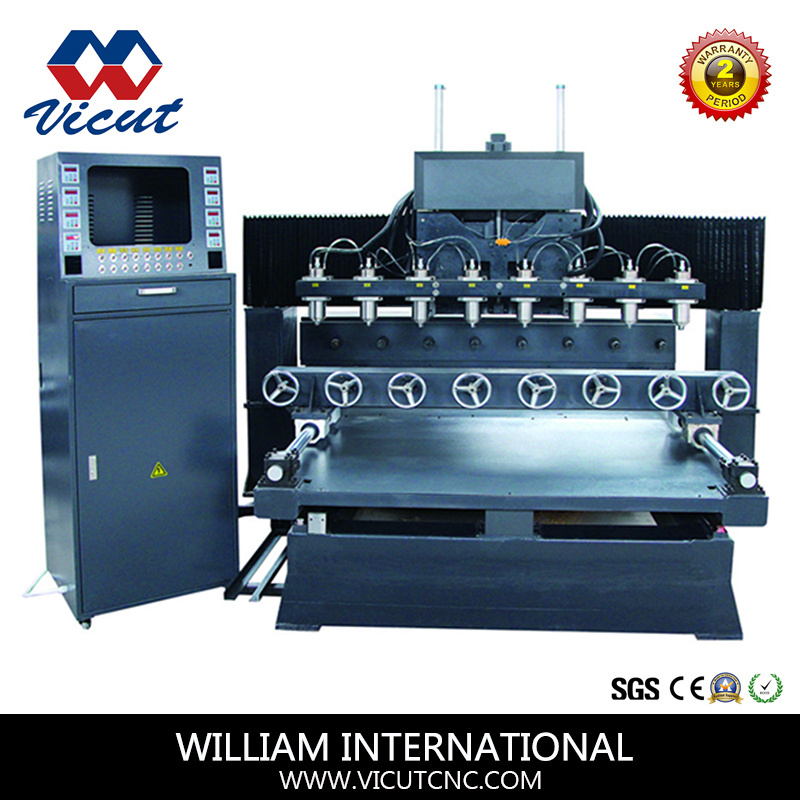

Table Move Flat & Rotary CNC Carving machine
Features:
1.Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2.Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3.Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
2D/3D Flat & Rotary CNC Carving Router
Features:
1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.
2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.
3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
5. Big size with more heads (up to 16 heads) can be customized.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:| Model | VCT-1518FR-4H | VCT-1525FR-6H | VCT-2225FR-8H | VCT-3230FR-2Z-10H | | Dimension | 2000×2200mm (6.6'x7.2') | 2000×2900mm (6.6'x9.5') | 2700×2900mm (8.9'x9.5') | 3700×3400mm
(12.1'x11.1') | | 2D Working Size | 1500×1800×200mm
(4.92'x5.90'x0.66') | 1500×2500×200mm
(4.92'x8.20'x0.66') | 2200×2500×200mm
(7.2'x8.20'x0.66') | 3200 x3000×20 mm
(10.5' x 9.8' x 0.66') | | 3D Rotary Working Size(L*D) | 1500 x 250mm | 2000 x 250mm | 2000 x 250mm | 2000 x 250 mm | | Spindle Power | Water cooling 2.2kw | Water cooling 2.2kw | Water cooling 2.2kw | Water cooling 2.2kw | | No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 10 PCS | | No. Of Motors & Drivers | 8pcs stepper motors (servo is optional) | 10pcs stepper motors (servo is optional) | 6pcs Panasonic/Schneider Servo Motors | 7pcs Panasonic /Schneider Servo Motors | | Air Cylinder Support | Yes (300MM long air cylinder) | | Oil Lubrication system | Yes | | Tool Diameter | 4,6, 8, 12mm | | Body Structure | Heavy-duty steel tube welding | | XYZ Transmission | XZ TBI ball screw, Y gear rack | | Guiding Rails | XYZ PMI or HIWIN linear square rails | | Reposition Accuracy | <0.03/300mm | | Max Engraving Speed | 12000mm /m | 15000mm /m | | Spindle Speed | 6000~24000rpm | | Controller | 4 axis NC Studio controller with handle wheel( use computer to control the machine) | | Format of instructions | G code or HPGL | | Voltage | 380V/60Hz or 220V/50HZ | | Weight | 800KG | 1500KG | 2500KG | 3000KG | | Packing size | 1485x 1950x1750mm ( 5CBM) | 1900×2200×2200mm(9.2CBM) | 3000×2200×2200mm(15CBM) | 4200x2200x2200mm (21CBM) |
Our Value and Obligation:
1) Do business with integrity. No cheating and deception.
2) We are committed to offer high quality products.
3) We are committed to provide professional and efficient premium services.
4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.
5) If you are the end user, we will help you choose the right products and offer life-time technical support.
Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:
1.Two years warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; VICUT will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.If any part damaged is not in warranty period, VICUT will repair it for free.
4.Customer has to pay the International Express cost.
5.Warranty time starts after goods arrival in customer's location.
After-sale Service:
1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, or team-view, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 80USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sale service technician, make sure our service more and more better.
Company Introdution:
WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, label cutter, flatbed cutter, Laser marking machine and cutting plotter, having its own manufacturing base and official license for export & import business.
Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.
Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.
Contact us:
If you want to get more information, please feel free to contact us.
Contact person: Zephyr He
Cell : +86 13865965261
| | |
| | | |
| | | |
| | | |
| | | |
| | |
| | |
| | | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | | |
| | | |
