| Prod Model: |
VCT-2512R-8H |
| 3D Rotary Working Size: |
1200mm(Length) X 250mm(Rotary Diameter) |
| Xyz Transmission: |
Tbi Ball Screw for Xyz Axis |
| Controller: |
4 Axis Nc Studio Controller( PC Control ) |
| Net Weight: |
About 2100kg |
| Spindle Speed: |
6000~24000rpm |
| Driver: |
Stepper Motors |
| Tool Diameter: |
4, 6, 8, 12mm |
| Certification: |
CE |
Product Description

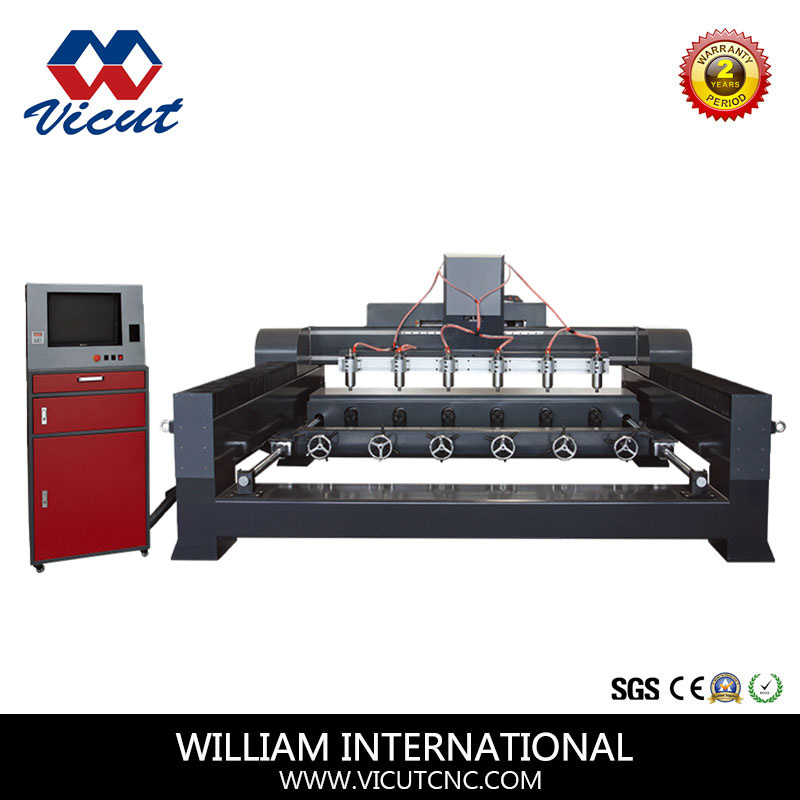

CNC Wood Router with Rotary Axis
VCT-2512R-8H
2D/3D Flat & Rotary CNC Carving Router
Features:
1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.
2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.
3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
5. Big size with more heads (up to 16 heads) can be customized.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
| Model | VCT-1518FR-4H | VCT-1525FR-6H | VCT-2225FR-8H | VCT-3230FR-2Z-10H |
| Dimension | 2000×2200mm (6.6'x7.2') | 2000×2900mm (6.6'x9.5') | 2700×2900mm (8.9'x9.5') | 3700×3400mm
(12.1'x11.1') |
| 2D Working Size | 1500×1800×200mm
(4.92'x5.90'x0.66') | 1500×2500×200mm
(4.92'x8.20'x0.66') | 2200×2500×200mm
(7.2'x8.20'x0.66') | 3200 x3000×20 mm
(10.5' x 9.8' x 0.66') |
| 3D Rotary Working Size(L*D) | 1500 x 250mm | 2000 x 250mm | 2000 x 250mm | 2000 x 250 mm |
| Spindle Power | Water cooling 2.2kw | Water cooling 2.2kw | Water cooling 2.2kw | Water cooling 2.2kw |
| No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 10 PCS |
| No. Of Motors & Drivers | 8pcs stepper motors (servo is optional) | 10pcs stepper motors (servo is optional) | 6pcs Panasonic/Schneider Servo Motors | 7pcs Panasonic /Schneider Servo Motors |
| Air Cylinder Support | Yes (300MM long air cylinder) |
| Oil Lubrication system | Yes |
| Tool Diameter | 4,6, 8, 12mm |
| Body Structure | Heavy-duty steel tube welding |
| XYZ Transmission | XZ TBI ball screw, Y gear rack |
| Guiding Rails | XYZ PMI or HIWIN linear square rails |
| Reposition Accuracy | <0.03/300mm |
| Max Engraving Speed | 12000mm /m | 15000mm /m |
| Spindle Speed | 6000~24000rpm |
| Controller | 4 axis NC Studio controller with handle wheel( use computer to control the machine) |
| Format of instructions | G code or HPGL |
| Voltage | 380V/60Hz or 220V/50HZ |
| Weight | 800KG | 1500KG | 2500KG | 3000KG |
| Packing size | 1485x 1950x1750mm ( 5CBM) | 1900×2200×2200mm(9.2CBM) | 3000×2200×2200mm(15CBM) | 4200x2200x2200mm (21CBM) |

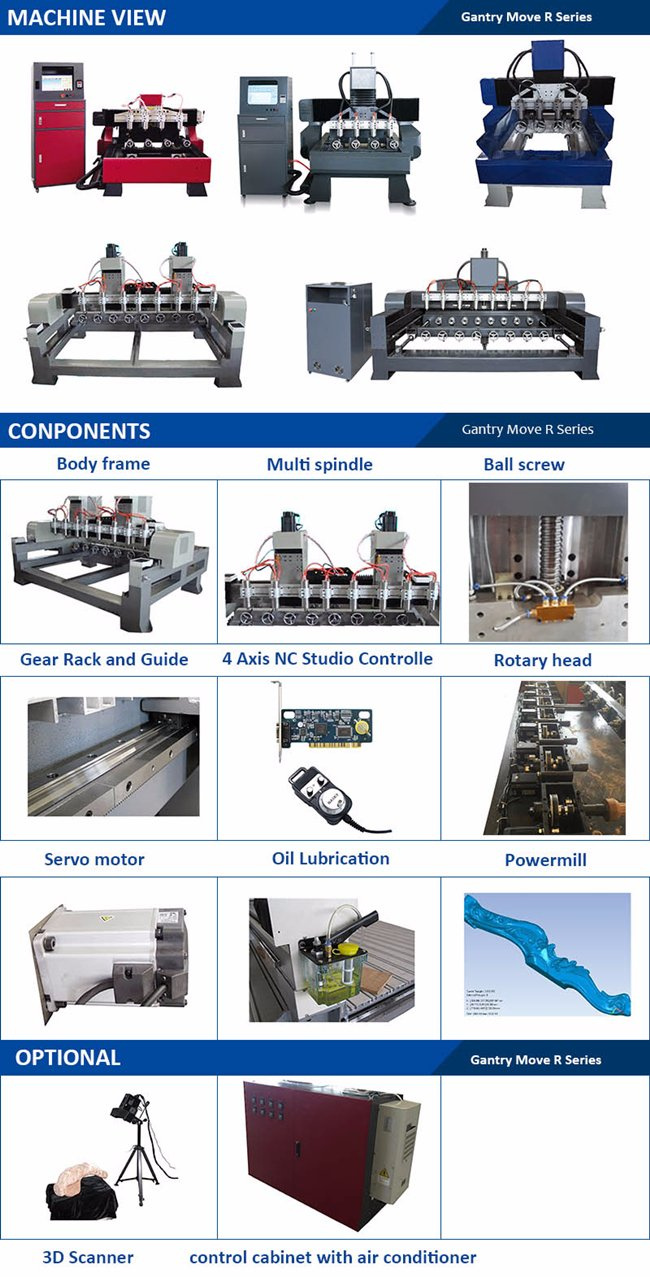

Details:
1.
Base Frame:The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2.
Multiple Cooling Spindle:Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc;We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V,3Phase-50-60Hz.Series of tools are available, for example, diameter 3.175mm,4mm,6mm,8mm and 12.7mm.
3.
Ball Screw:Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.
4.
Gear rack:XY axis use high accuracy gear rack.The combination for ball screw and gear rack makes machine working more accurate and stable.
5.
NC Studio Controller:PC based NC Studio Controller with more friendly human/machine interface/HMI, fully executed with computer.It well realizes high-speed and high-precision motion control.Better anti-interference performance due to control signal adopting differential signal input/output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
6.
Servo Motor:AC Panasonic Servo motor for more smooth motion and triple working speed and they require no regular maintenance.
7.
Rotary Axis:Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters;We can put different number of rotary axis according to specified requirement.
8.
Control Cabinet:All the electrical components are housed and wired in a mobile, double door electrical enclosure.This allows for easy access and service when needed.Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
9.
Central Lubricator:Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
10.
4 AXIS Software:You can use power-mill software to make processing of 3D files which was scanned with 3D scanner.We can make 4 axis movements, AXYZ axis can move at the same time.
Optional:
1.
3D Scanner:A fast and easy to operate device for massive production based on complicated three-dimensional samples.Good for woodworking, small molds, plastic products, shoe last and soles mold, sculpture, artifacts, toy, tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.
2.
Nebulizer Cooling System:It sends oil mist to machining surface, it is important for tool cooling and lubricating.
