Table Move Flat & Rotary CNC Carving Machinery
| Price: |
US $ 11800-18000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
VCT-TM2523FR-10H |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
| 2D Working Size: |
2500×2300×250mm |
| Spindle Power: |
Water Cooling 2200W×10PCS |
| 3D Rotary Working Size: |
2000mm(Length)*250mm(Rotary Diameter) |
| Xyz Transmission: |
Xyz Tbi 4010 Ball Screw |
| Controller: |
4 Axis Nc Studio Controller( PC Control ) |
| Net Weight: |
3500kg |
| Spindle Speed: |
6000~24000rpm |
| Driver: |
Servo Motors |
| Tool Diameter: |
4, 6, 8, 12mm |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
| Spindle Number: |
10 Heads |
Product Description

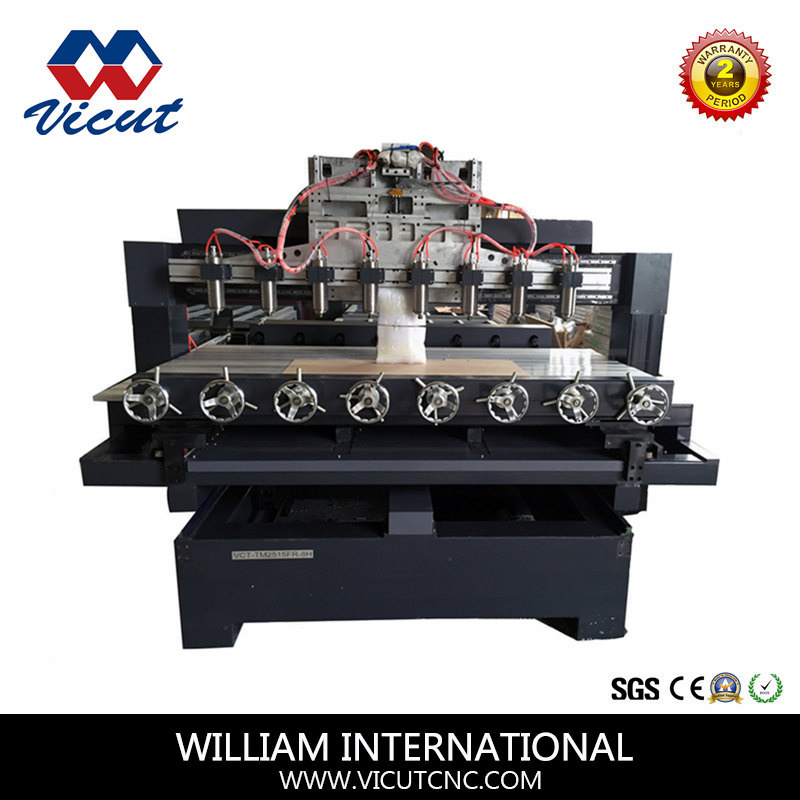

Table Move Flat & Rotary CNC Carving machine

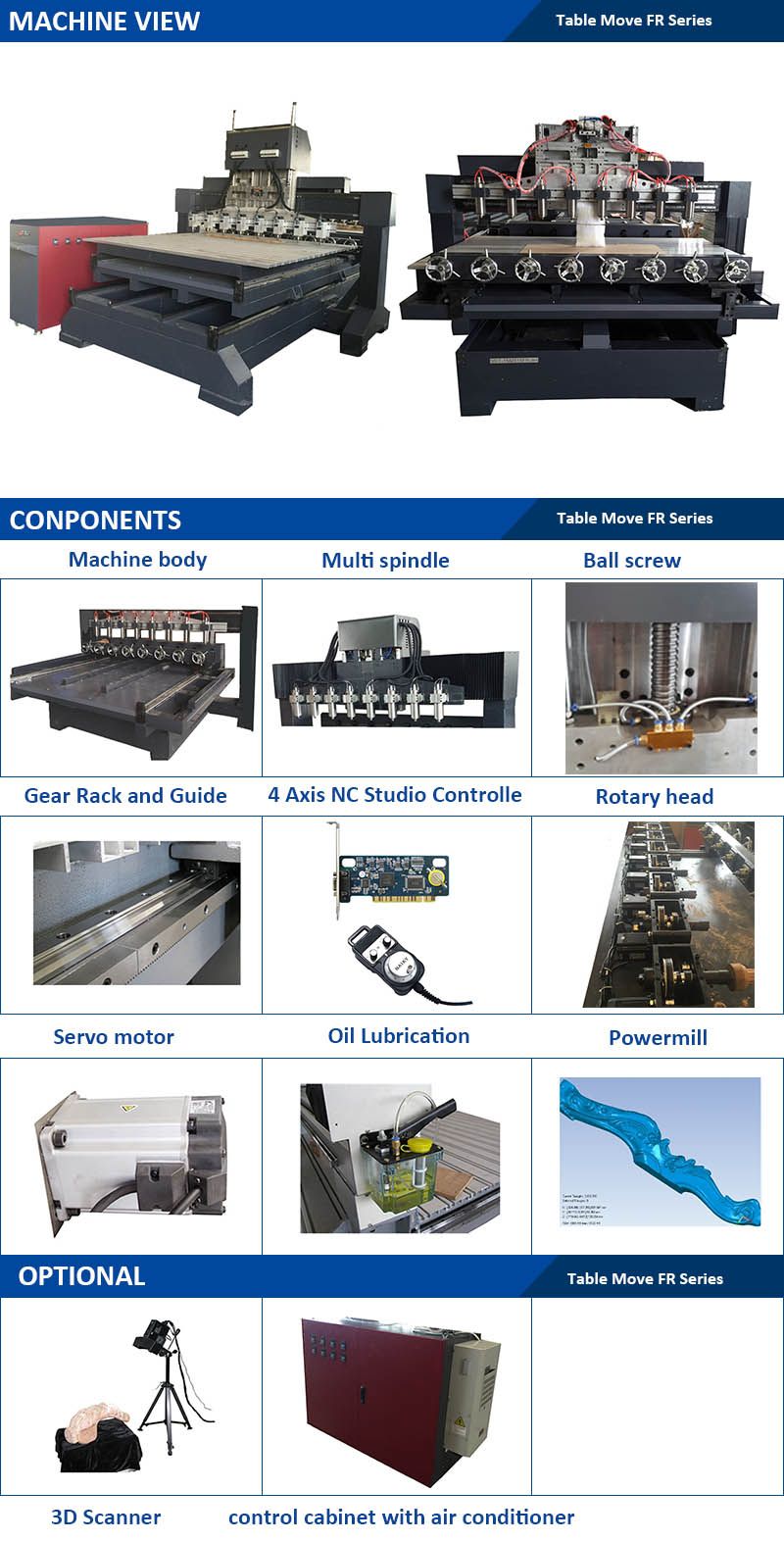

Features: - Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
- Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
- Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine
4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.Applications: Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc. Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc. Technical Parameters: | Model | VCT-TM2515FR-8H | VCT-TM2523FR-10H |
| Dimension | 3000×1900mm(9.8'x6.3') | 3000×2700mm(9.8'x8.9') |
| 2D Working Size | 2500×1500×250mm(8.2'x4.9'x0.8') | 2500×2300×250mm(8.2'x7.5'x0.8') |
| Spindle Power | Water cooling 2200W×8PCS | Water cooling 2200W×10PCS |
| No. Of Rotary | 8 PCS | 10 PCS |
| Motors & Drivers | XYZ axes use Panasonic/Schneider servo motor, A axis use Leadshine hybrid servo |
| Rotary Transmission | One hybrid servo motor drive one rotary with Belt box transmission
( Gear box transmission is optional) |
| 3D Rotary Working Size | 1100mm(length)*250mm(rotary diameter) | 2000mm(length)*250mm(rotary diameter) |
| Air Cylinder Support | Yes (300MM long air cylinder) |
| Oil Lubrication system | Yes |
| Tool Diameter | 4/6/8/12mm |
| Body Structure | Thick steel tube welding |
| XYZ Transmission | XYZ TBI 4010 ball screw |
| Guiding Rails | XYZ Taiwan PMI Linear Square Rails |
| Reposition Accuracy | <0.03/300mm |
| Max Engraving Speed | 15000mm/m |
| Spindle Speed | 6000~240000rpm |
| Controller | 4 axis NC Studio Controller with handle wheel
( Use computer to control the machine) |
| Format of Instruction | G code or HPGL |
| Voltage | 380V/60Hz or 220V/50HZ |
| Weight | 3000KGS | 3500KGS |
| Packing Size | 3000×2200×2200mm(15CBM) | 3000×2200×2200mm(15CBM) |
