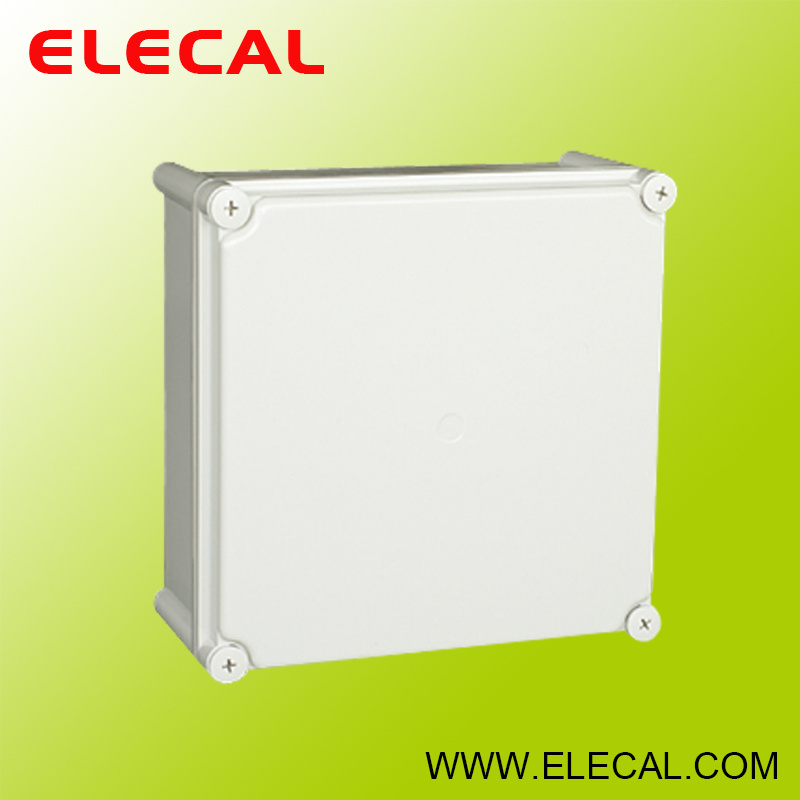

Switch & Push Button Box (Indoor Use)

Prod Model:	A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Lighting
Structure:	Protection
Application Range:	Home
Shell Material:	ABS Plastic
Brand:	Elecal

Product Description

1.Application
DS Seriesbusbar chamber system is designed to provide either compact, wall-mount-ing installations or by using optional pedestal sets easily assembled switchboards.Every facility is provided to enable it to be mounted easily and economically to busbarchambers which can be applied either to a suitable load-bearing vertical surface; or bymeans of a pedestal set, affixed to a vertical surface which need not be load-bearing.These are produced in 100, 200, 400, 630 and 800 Amp.


Description	Description	Description	Description
PART NO.	W × H × D(m/m)	PART NO.	W × H × D(m/m)
Material ABS  Color: Grey  Door Solid	DS-AG-0506	50 × 65 × 55	Material ABS  Color: Grey  Door Solid	DS-AT-0506	50 × 65 × 55
	DS-AG-0609	65 × 95 × 55		DS-AT-0609	65 × 95 × 55
	DS-AG-0811-S	80 × 110 × 45		DS-AT-0811-S	80 × 110 × 45
	DS-AG-0811	80 × 110 × 70		DS-AT-0811	80 × 110 × 70
	DS-AG-0813	80 × 130 × 70		DS-AT-0813	80 × 130 × 70
	DS-AG-0816	80 × 160 × 55		DS-AT-0816	80 × 160 × 55
	DS-AG-0818	80 × 180 × 70		DS-AT-0818	80 × 180 × 70
	DS-AG-0825	80 × 250 × 70		DS-AT-0825	80 × 250 × 70
	DS-AG-0811-1	80 × 110 × 85		DS-AT-0811-1	80 × 110 × 85
	DS-AG-0813-1	80 × 130 × 85		DS-AT-0813-1	80 × 130 × 85
	DS-AG-0818-1	80 × 180 × 85		DS-AT-0818-1	80 × 180 × 85
	DS-AG-0825-1	80 × 250 × 85		DS-AT-0825-1	80 × 250 × 85
	DS-AG-1212-S	125 × 125 × 75		DS-AT-1212-S	125 × 125 × 75
	DS-AG-1212	125 × 125 × 100		DS-AT-1212	125 ×125 ×100
	DS-AG-1217	125 × 175 × 75		DS-AT-1217	125 × 175 × 75
	DS-AG-1217-1	125 × 175 × 100		DS-AT-1217-1	125 × 175 × 100
	DS-AG-1417	140 × 170 × 95		DS-AT-1417	140 × 170 × 95
	DS-AG-1520	150 × 200 × 100		DS-AT-1520	150 × 200 × 100
	DS-AG-1520-1	150 × 200 × 130		DS-AT-1520-1	150 × 200 × 130
	DS-AG-1525	150 × 250 × 100		DS-AT-1525	150 × 250 × 100
	DS-AG-1525-1	150 × 250 × 130		DS-AT-1525-1	150 × 250 × 130
	DS-AG-2020	200 × 200 × 130		DS-AT-2020	200 × 200 × 130
	DS-AG-2020-S	200 × 200 × 95		DS-AT-2020-S	200 × 200 × 95
	DS-AG-1717-1	175 × 175 × 100		DS-AT-1717-1	175 × 175 × 100
	DS-AG-1725	175 × 250 × 75		DS-AT-1725	175 × 250 × 75
	DS-AG-0712	75 × 125 × 75		DS-AT-0712	75 × 125 × 75
	DS-AG-0712-1	75 × 125 × 100		DS-AT-0712-1	75 × 125 × 100
	DS-AG-1423	140 × 230 × 90		DS-AT-1423	140 × 230 × 90
	DS-AG-1717	175 × 175 ×75		DS-AT-1717	175 × 175 × 75
