Poetable Powerhouse Boards

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Lighting
Structure:	Protection
Application Range:	Home
Shell Material:	ABS Plastic
Brand:	Elecal

Product Description

Features
*With standard of BSEN60439-3.
*960'UV stop ABS on body and V0 retardant PC on transparent lids.
*Neutral & Earth terminal link bars assembled.
*Preformed cables or Flexible wires connected on correct terminals.
*Live busbar assembled for necessary MCBs fitting.
*With quarter turn plastic screws easy to open and close the front cover.
*IP30 standard suit to indoor use only1.Application

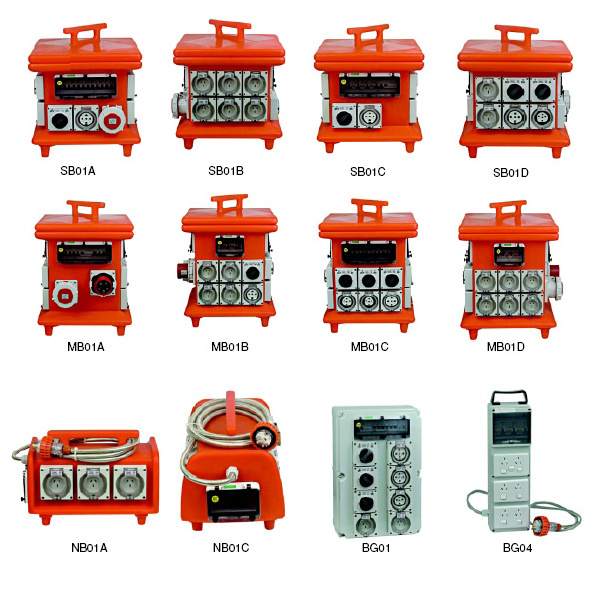

	Side:A 1x5P 32A IP66 Socket Switch and RCBO(MCBs) 1x5P 32A IP66 Socket and RCBO (MCBs) Code:SB01A		Side:A 1xIEC5P 63A IP67 plug and MCB  (RCBO) 1xIEC5P 63A IP67 socket and MCB(RCBO) Code:MB01A
	Side:A 6x3P 15A Socket and RCBO  Code:SB01B		Side:B 4x3p 15A IP66 Socket and RCBO 1x5p 32A IP66 Socket and switch and RCBO  Code:MB01B
	Side:C 1x5P 32A Waterproof Switch 1x5P 32A Waterproof Socket and MCBs(RCBO) Code:SB01C		Side:C 2x5P 20A IP66 Socket and Waterproof Switch and MCBs(RCBO)  1x5P 32A IP66 Socket and Waterproof Switch  Code:MB01C
	Side:D 2x3P 15A Waterproof Socket and RCBO 1x5P 20A Waterproof Socket and Switch 1x5P 32A Waterproof Socket and Switch and MCBs  Code:SB01D Size:400x400x460mm(h,w,d)		Side:D 6x3P 15A Waterproof Socket and MCBs(RCBO) Code:MB01D Size:400x400x570mm(h,w,d)



	Side:A 3x3P 10A or 15A Waterproof Socket and RCBO  Code:NB01A		2x5P 32A Waterproof Socket and Waterproof Switch  1x5P 20A Waterproof Socket and Waterproof Switch 2x3P 15A Waterproof Socket size:350x170x530mm(h,w,d)  Code:BG01
	Side:B 3x3P 10A or 15A Waterproof Socket and RCBO Code:NB01B		2x3P 15A Waterproof Socket 1x5P 32A Waterproof Socket and Waterproof Switch 1x1.8M Wire and 5P 32A Waterproof Plug  size:290x150x400mm(h,w,d)  Code:BG02
	Side:C 1x1.8M Wire and 3P 15A Waterproof Plug  1x2P 20A 30mA RCBO Code:NB01C size:380x250x260mm(h,w,d)		6x3P 15A Waterproof Socket 2x3P 16A CEE Waterproof Socket size:290x160x530mm(h,w,d)  Code:BG03
			3x10 or 15A Wall Switch Socket 1x1.8m Wire and 3P 15A Waterproof Plug RCBO  size:150x100x530mm(h,w,d)  Code:BG04
