| Prod Model: |
XH910 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2030*500*690-1100mm |
| Business Type: |
Manufacturer |
| Factory Location: |
2 Hours Drive From Beijing |
| Warranty: |
12 Months |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO9001 |
Product Description

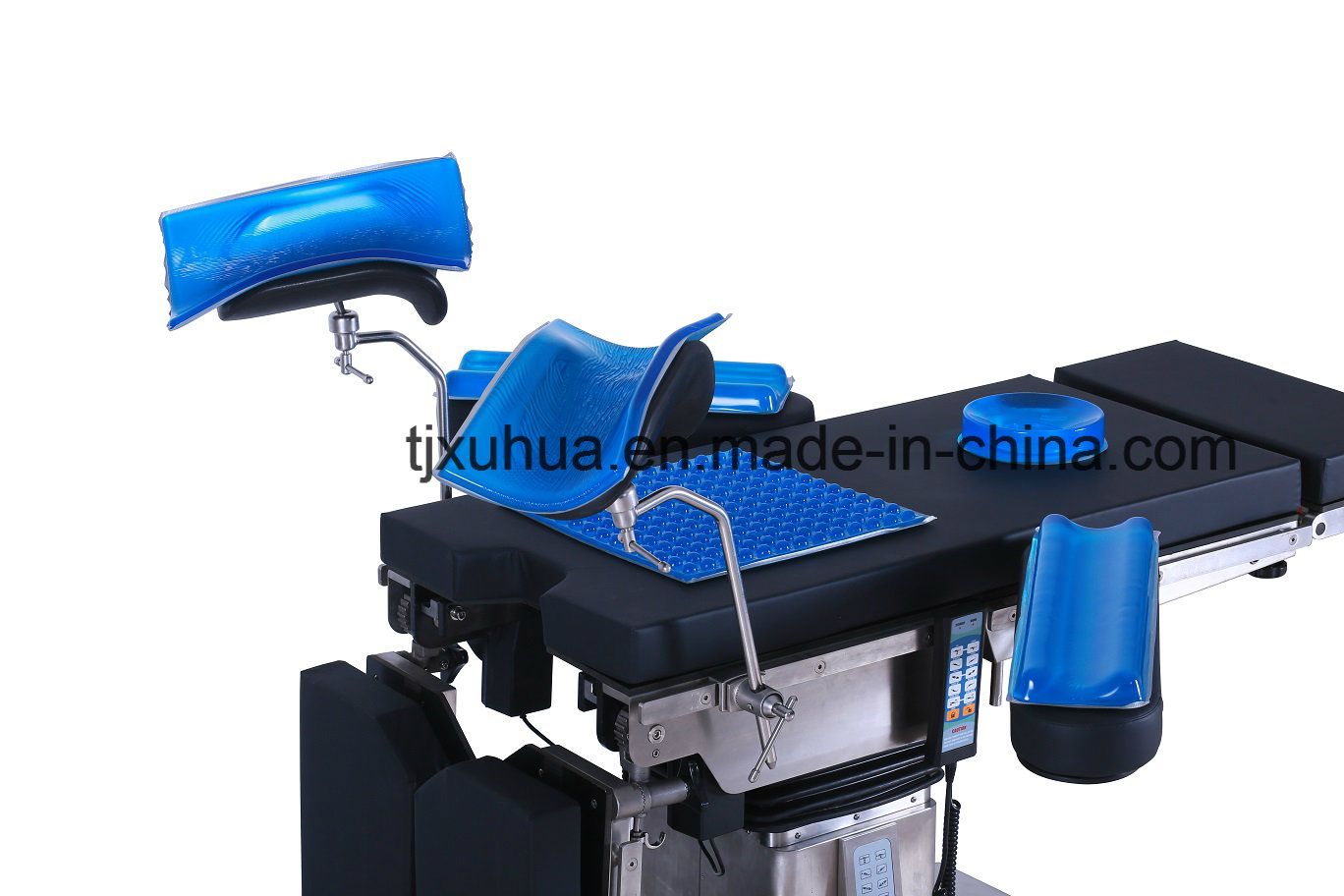

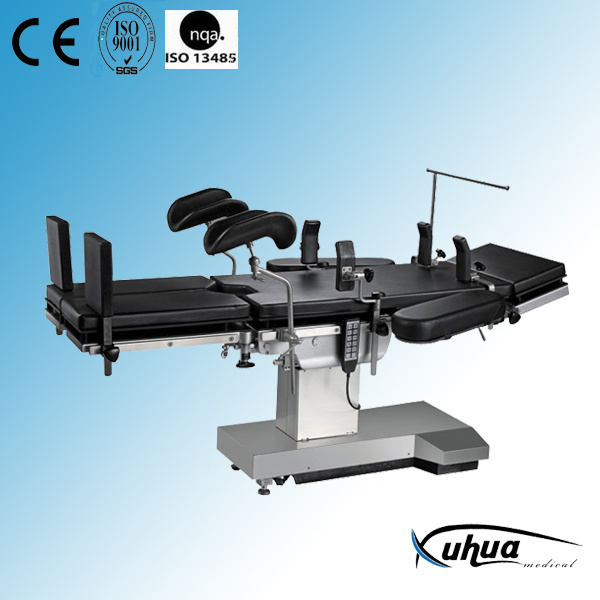

Multi-function Manual Type Operating Table
Model: XH910
Overall size: L2030*W500*690-1100mm
Properties:
1. The OT table consists of head, back, pelvic, leg and foot sections with mechanical control system for all adjustments.
2. Table top frame, column cover, base cover and side-rails are made of stainless steel which is rust proof, acid-resistant and impact resistant.
3. Table top is compatiable for C-Arm and radio translucent, fitted with full length cassette tunnel from head to pelvic section for X-ray photographing.
4. All movements are controlled manually by ratchet wheels and gas spring system.
5. Table height is adjusted by hydraulic pedal.
6. The OT table is mounted on strong castors to facilitate relocation of the table.
7. Supplied with antibacteria, soft slow recovery mattresses, thickness 6cm.
Functions introduction:
1. Length and width for tabletop: L2030*W500mm
2. Height (up/down): 690mm-1100mm
3. Trendelenburg/ reverse trendelenburg: 30° /30°
4. Lateral tilt (left/right): 20° /20°
5. Head rest (up/down): 40° /90°
6. Back section (up/down): 90° /15°
6. Foot rest (up/down &horizontal positioning): 15° /90°
7. Kidney elevator (up): 12cm
Accessories:
| Arm board | 1 pair |
| Leg holders | 1 pair |
| X-ray cassette holder | 1 piece |
| Anaesthesia screen | 1 piece |
| Labour bar | 1 pair |
| Stainless steel waste bin | 1 piece |
| Shoulder support | 1 piece |
As an appointed factory by Tianjin Medicine Administrative Bureau, Bazhou Xuhua Medical Equipment Co., Ltd. is a famous factory among National Medical Pharmacy and the line of Chinese medical equipment. Our factory is special in more than 180 kinds of products, such as traction beds controlled by computer software, series of sickbeds, cabinets, tables, stands, etc. Can fully satisfy the use of hospitals in different levels.
Our managing concept is:
"Quality the first, customer the uppermost Prosper the factory by science and technology, get rid of the stale and bring forth the fresh"
ISO9001 international standard is strictly carried out during the whole process of production, we have advanced technology and equipment, high technique, circumspect service and high quality goods. We will serve the customers of all over the world by reliable reputation and sincerity.
We deeply believe that the development of an enterprise is depend on the support of customers, we sincerely hope more and more customers will cooperate with us, we will provide you the best service and high quality products.
