| Prod Model: |
Type-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L2150*W1000*H500/940mm |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO9001 |
| Numbers Of Function: |
Seven Functions |
Product Description

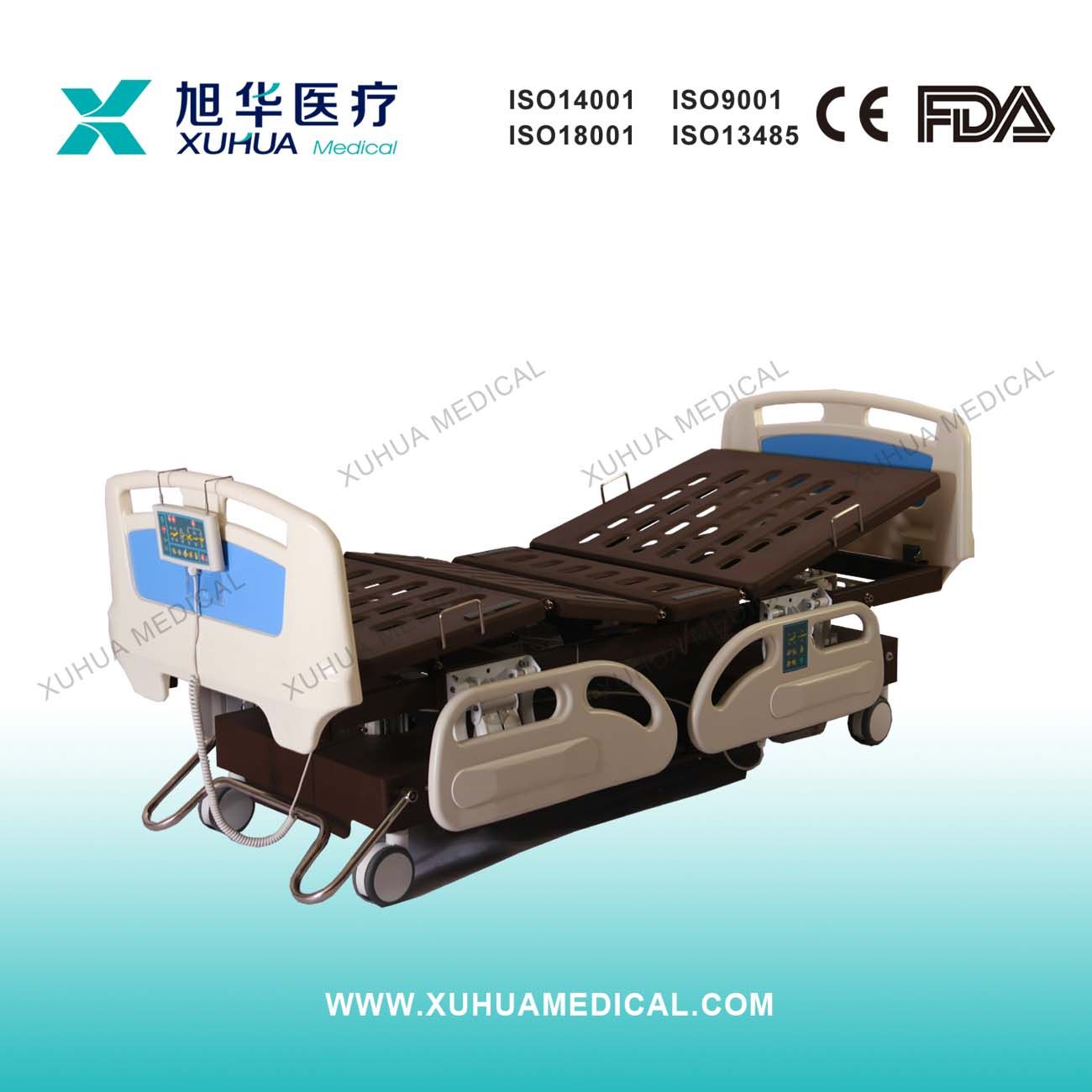

Product name: Type-A Electric Multi-positions Medical Bed (Seven functions)
Model: Type-A
Features:1. Denmark imported 24v dc motor running without noise, equipped with power storage battery.
2. ZE material bed head and foot boards, with self-locking device, available for CPR
3. New type folding guard rails, importer ABS material shaped by blow molding, with steel locking device, equipped with electrical controller on both sides of the rails.
4. German TENTE casters with central brake, superior abrasion resistance promoting a flexible and convenient locking.
5. Bed board adopts cold-roll steel sheets. Punching press and shaping in one time. Anti slip system on both sides of the bed.
5. Bed board can tilt forward, backward, left and right, totally eight positions can maximally fulfill the patient's needs.
6. Functions electrically adjustable:
Backrest adjustment angle: ≥ 0-70° ± 5°
Legrest adjustment angle: ≥ 0-35° ± 5°
Bed height adjustable range: 500-940mm
Trendelenburg and reverse trendelenburg: 0-12°
Left and right tilting: 0-12°
7. Functions are adjustable by three methods:
1) nurse controller hanging on the bed end.
2) controlling buttons on the side rails.
3) Foot pedals on both sides of the bed.
8. Overall size: L2150*W1000*H500-940mm
9. Material: ABS Plastic &cold-roll steel
10. Certificates: ISO13485, ISO9001 &CE
Functions illustration:

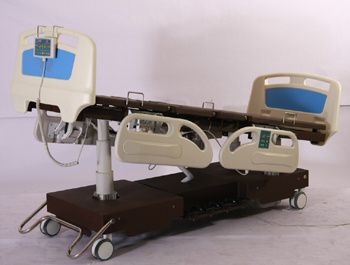

Bed height lifting

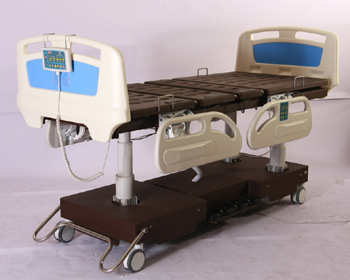

Trendelenburg position

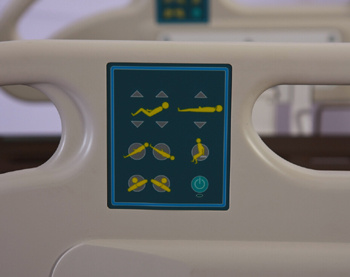

Control buttons on the side rails | Product name | Type-A Electric Multi-positions Medical Bed (Seven functions) |
| Material | ABS & Cold-roll steel |
| Functions | Seven functions |
| Adjustable method | Electrically adjustable |
| Backrest adjustable angle | 0-70°±5° |
| Leg section adjustable angle | 0-35°±5° |
| Trendelenburg and reverse trendelenburg | -12°/+12° |
| Left and right tilting | -12°/+12° |
| Size | L2150*W1000*H500-940mm |
| Certificates | ISO9001, ISO13485 |
