| Prod Model: |
XH910Y-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2070*550*700-1000mm |
| Business Type: |
Manufacturer |
| OEM: |
Available |
| Sample Order: |
Available |
| Material: |
Metal |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO9001 |
| Type Of Hospital Bed: |
Operation Table |
| Numbers Of Function: |
Multi-Function |
Product Description

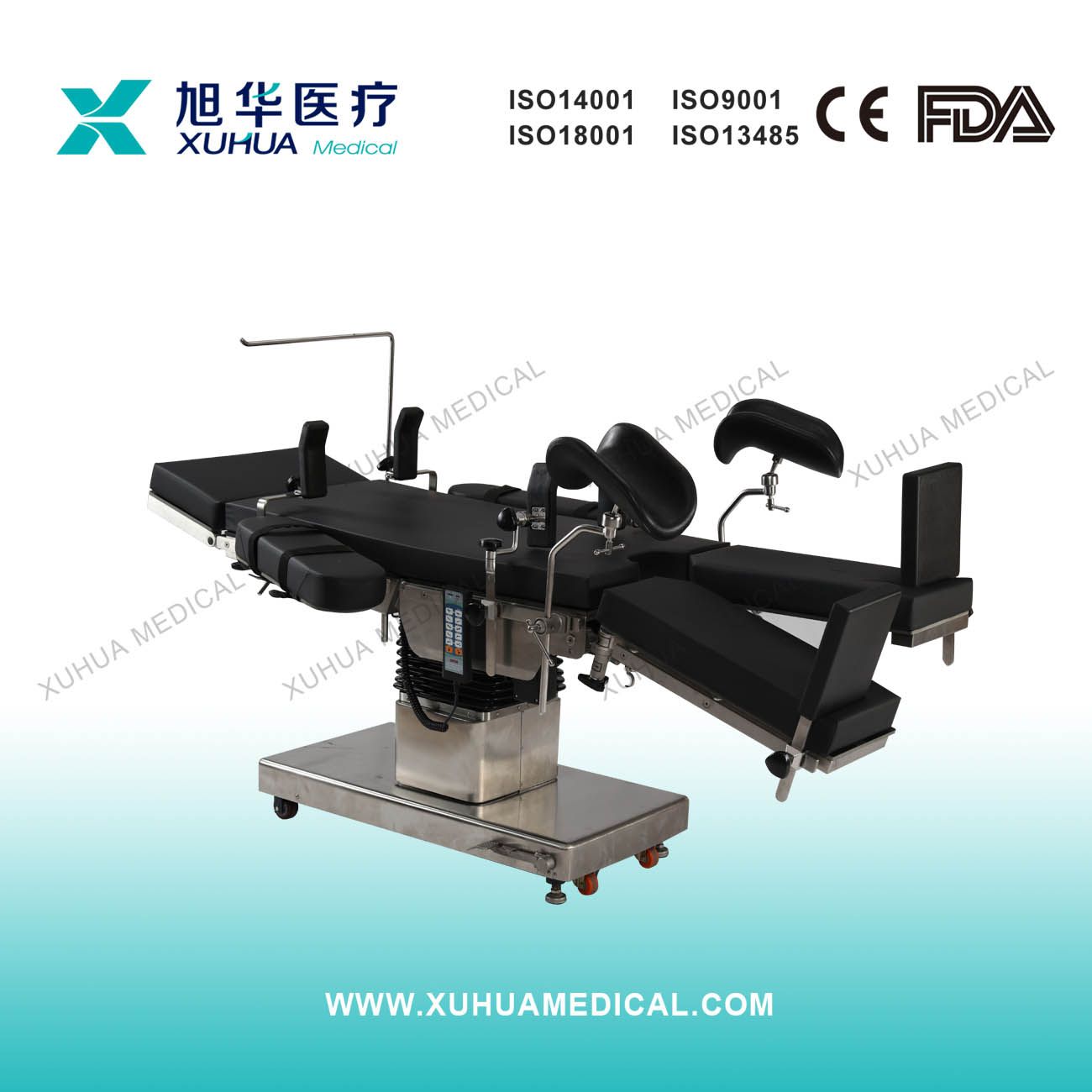

Product name: Surgery Instruments C-arm Electric Operating Table, Radiolucent
Model numer: XH910Y-1Technical Specifications:1. Tabletop length: 2070mm
2. Table width: 550mm
3. Tabletop minimum height: 700mm
4. Tabletop maximum height: 1000mm
5. Trendelenburg and reverse trendelenburg: 25°/25°
6. Lateral tilt: 15°/15°
7. Head rest (up/down): 45°/90°
8. Foot Plate (up/down): 15°/90°
9. Foot plate horizontal positioning: 90°
10. Back plate (up/down): 75°/20°
11. Kidney bridge elevation: 110mm
12. Horizontal sliding: 300mm
13. Voltage: 220V/ 110V
14. Frequency: 50Hz/ 60Hz
15. Power capacity: 1.0kw
16. Battery: Yes
17. Mattress: Memory mattress
18. Accessory: PU by Moulding
19. Main material: 304 stainless steel.
20. Maximum load capacity: 200kg
Functions specifications: | Product | Surgery Instruments C-arm Electric Operating Table, Radiolucent |
| Size | 2070*550*700-1000mm |
| Table height elevation | 700-1000mm |
| Trendelenburg and reverse trendelenburg | 25°/25° |
| Lateral tilt (left/ right) | 15°/15° |
| Head rest (up/down) | 45°/90° |
| Foot rest (up/down) | 15°/90° |
| Backrest (up/down) | 75°/20° |
| Tabletop horizontal sliding | 300mm |
Standard Accessories:| Anesthetic screen | 1 piece |
| Shouler support | 1 pair |
| Arm support | 1 pair |
| Long fixing clamp | 1 pair |
| Leg support | 1 pair |
| Foot plate | 1 pair |
| Hand remote | 1 piece |
| Mattress | 1 set |
| Power line | 1 piece |
Operating table details pictures:
Sliding clamps

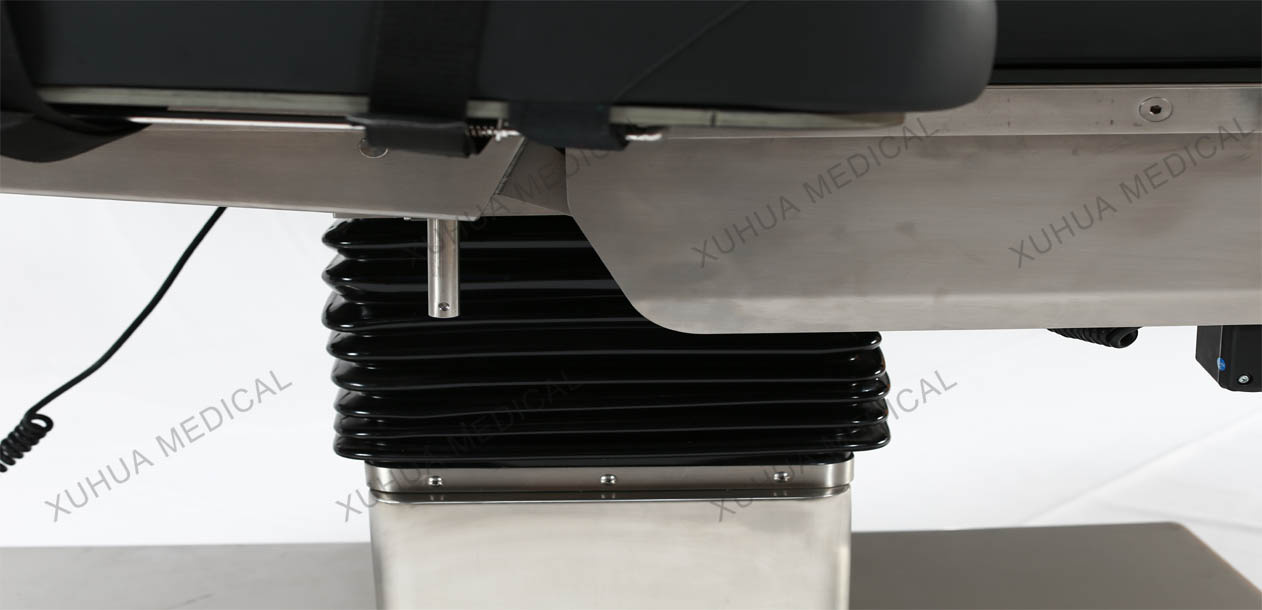

Lifting Column

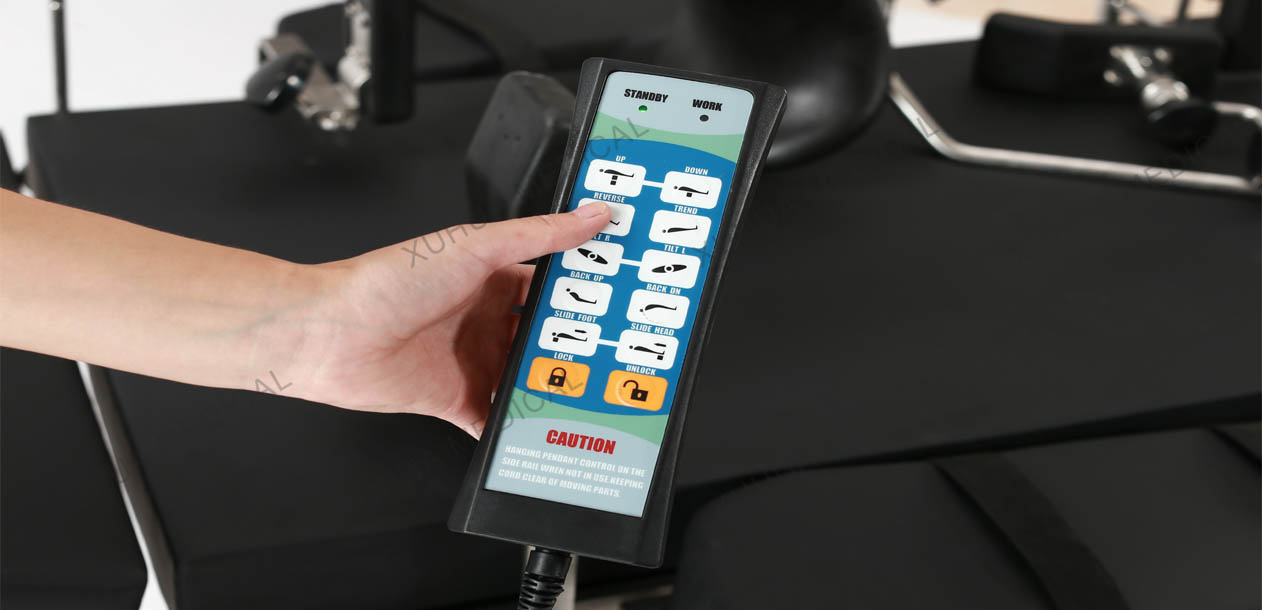

Hand remote controller
As an appointed factory by Tianjin Medicine Administrative Bureau, Bazhou Xuhua Medical Equipment Co., Ltd. is a famous factory among National Medical Pharmacy and the line of Chinese medical equipment. Our factory is special in more than 180 kinds of products, such as traction beds controlled by computer software, series of sickbeds, cabinets, tables, stands, etc. Can fully satisfy the use of hospitals in different levels.
