| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |
| Prod Model: | COLO-6050A |
|---|---|
| Item: | Any Metal Surface |
| Model Number: | Colo-6050A |
| Power Supply: | 220V/380V/415V |
| Delivery: | 3-5days |
| Payment: | 100% T/T in Advance |
Description:

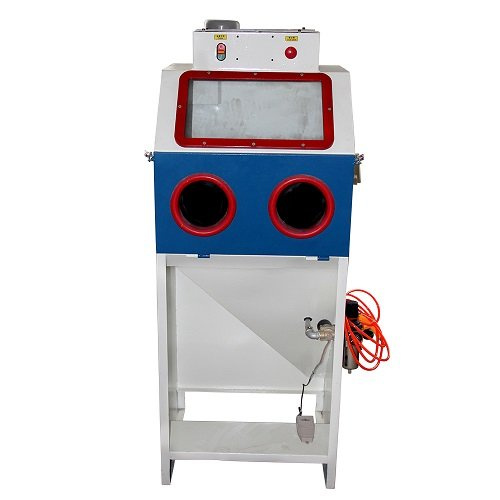

This small suction blast machine is designed for abrasive blasting of small parts or components
The sandblasing system is suitable for surface stripping process, derusting, deburring, etching, aesthetic process mould cleaning etc..
Using all kind of abrasives such as glass beads, aluminium oxide, silicon carbide etc..
The sand blast machine is suction sandblasting type, which uses the compressed air to flow in the spray gun to produce negative pressure. The abrasive in the cyclone separator is sucked into the gun through the hose and then sprayed from the nozzle to the workpiece surface with the compressed air flow, for the purpose of sandblasting processing
Features
1. ABRASIVE FLOW REGULATOR
Used abrasive is recirculated continuously throughout the blasting operation. An abrasive flow regulator at the base of the hopper of the cabinet controls and ensures the smooth flow of abrasive.
2. BLASTING GUN (Aluminium)
Alloy body holder complete with Ceramic Nozzle.
3. AIR BLOWER GUN
Using after blasting process - removal of surplus dust and blasting media.
4.DUST COLLECTOR
Separate Dust Collector ensures that only clean and dust-free air is discharged to the atmosphere.

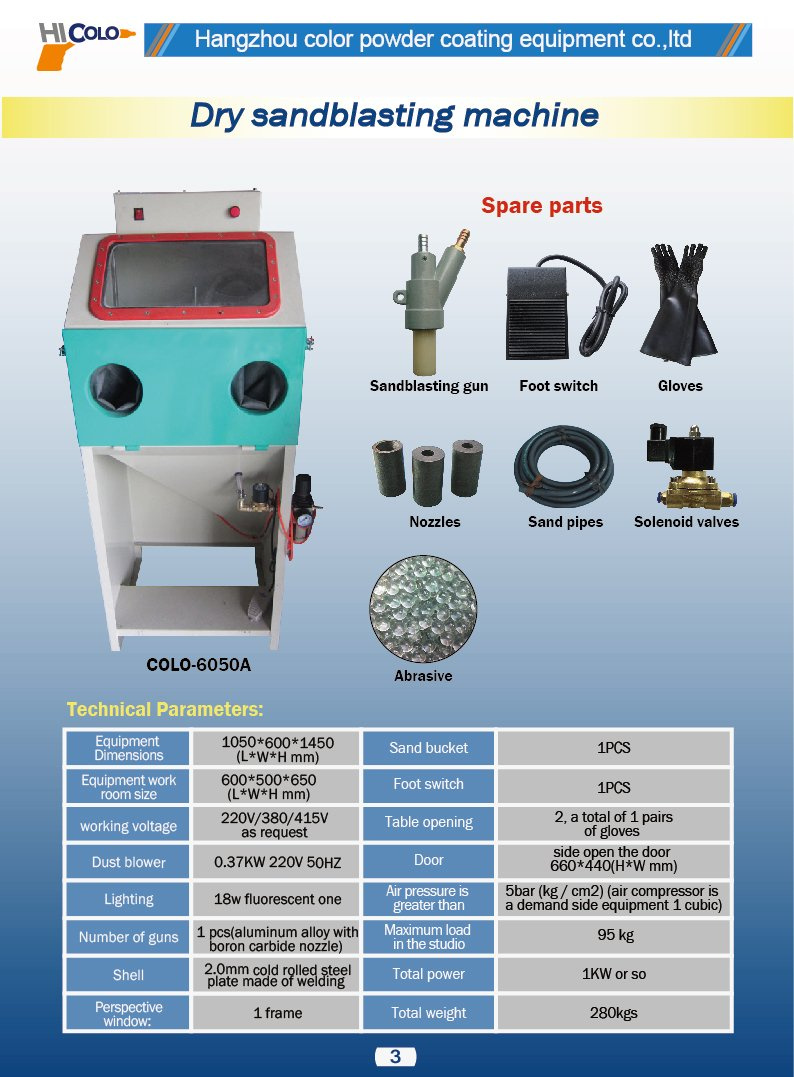

Specifications
Model | COLO-6050A Abrasive Blasting Equipment |
Outside Size | L1050*W600*H1450mm |
Cabinet Size | L600*W500*H650mm |
Opening Door Size | W660*H440mm |
Loading Weight | Max. 95kg |
Total Equipment Weight | 280kgs |
Working Voltage | 220V/380V/415V as request |
Dust Removal Motor | 370W 220V 50HZ |
Lighting | 18w energy-saving lamp |
Total Power | 1kw |
Air Pressure | >5bar(kg/cm^2) |
Shell | Welding cold-rolled steel plate |
Dust Removal Device | Cartridge filter |
Perspective Window | 1 Frame |
Blasting Gun: | 1 pc (boron carbide nozzle) |
Foot Switch | 1 set |
Why Choose Us?
1. One year warranty time for quality problem, provide replacements or free repairing.
Lifelong maintenance.
2. 24 hours online service of our sales team for any technical problem.
3. Offer product updating and function improvement, professional non-standard products consulting platform
4. Build wearing parts warehouse of sandblasting equipment and mass finishing equipment to meet the wide requirements
5. Packing & delivery, film and form packing first, with wooden case outside packing.
FAQ
1)Q: Are you manufacturer or distributor?
A: Kafan is professional manufacturer of surface finishing equipment with 10 years experience
2)Q: How can we place the order?
A: You can inquiry us now, then we can talk by email, or whatsapp, or skype.
3)Q: How do we make payment?
A: For big amount, we accept T/T by bank, for small amount, we also accept paypal and western union.
4)Q: Can you ship for customers?
A: Yes, we can. We accept CIF, CFR, DDP, etc, we can ship for you.
We also accept FOB, EXW, etc, customer can assign their own shipping agent.
5)Q: What is the delivery time?
A: Normally it is 5-7 working days
6)Q: What about the warranty time?
A: One year.
Wide screen operation window, embedded glass plate, rubber edge, good sealing and perspective | Multi-function operation panel, sandblasting air pressure, air flow, output pressure control, pulse time setting |
| Dust removal fan, regular dust, long life | Sandblasting studio, the cabin dust room space to provide users with spacious operating costs , |
Catelogue
The light duty, siphon model requires 20 cfm of compressed air and has more features than others. This negative pressure, 100% welded steel cabinet comes standard with two side access doors, hopper dust storage, and uses cartridge filter technology
