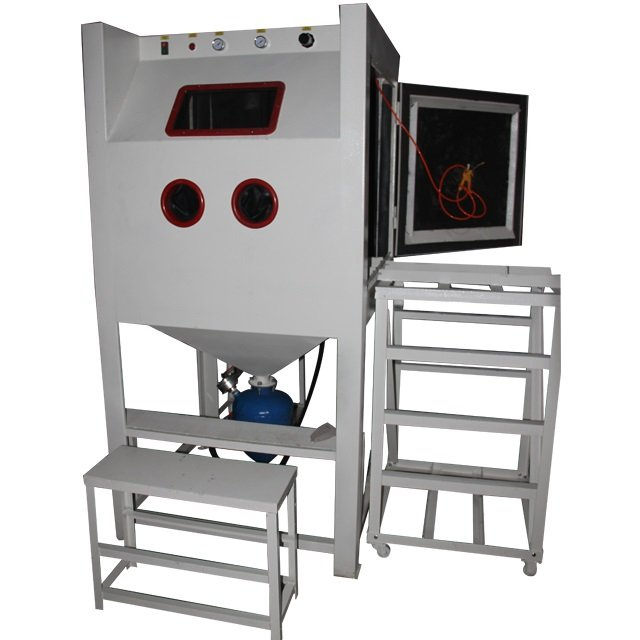

Cl-9080p Pressure Blast Cabinet for Tough Cleaning Jobs

Cl-9080p Pressure Blast Cabinet for Tough Cleaning Jobs
Price: US $ 500-2000/Piece
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: CL-9080P
Item: Any Metal Surface

Product Description

Description:
The direct pressure blasting cabinet
 is specially designed with a pressurized vessel containing compressed air, which will pneumatically push the media to the nozzles through a abrasive valve, then blast them onto the parts' surface. The compressed air is the origial power source of both abrasive supply and speed accelerate. In most applications, work can be done 3-5 times faster than a siphon blasting cabinet as the abrasive is conveyed at a much higher velocity and blasted at stronger force.


Features

>Cabinet design, enclosed type without dust and abrasive leakage, cause to pollution to environment and protect users' health.

>Equip with dust collector device, bag type or filter type for choice, keep a clear view in the working chamber.

>The abrasive in the storage tank can be recycled for many times, reducing consumption and save cost.

>The advanced technology developed the pressure abrasive valve, improve processing quality, reduce the compressed air consumption.

>Suitable for sandblasting effect of strong and high hardness of the workpiece sandblasting processing.

>The pressure blast cabinet can be customized according to customer requirements, installed with turntable and loading cart for heavy duty products

Detailed Pictures






Application:

Pressure type manual blasting cabinet can be used for:

1. pretreatment of electroplating, wet painting, electrostatic powder coating.

2. improve adhesion of all kinds of molds, cast parts, stamping parts, metal, non-metallic surface heat treatment,

3. descaling, de-rusting of handicrafts, all pieces of metal products, glass, plastic handicrafts, jewelry, glasses.

Abrasives: One blast cabinet fit various blasting medias, such as: glass beads, white corundum, steel ball, brown aluminum oxide, ceramic sand, etc.

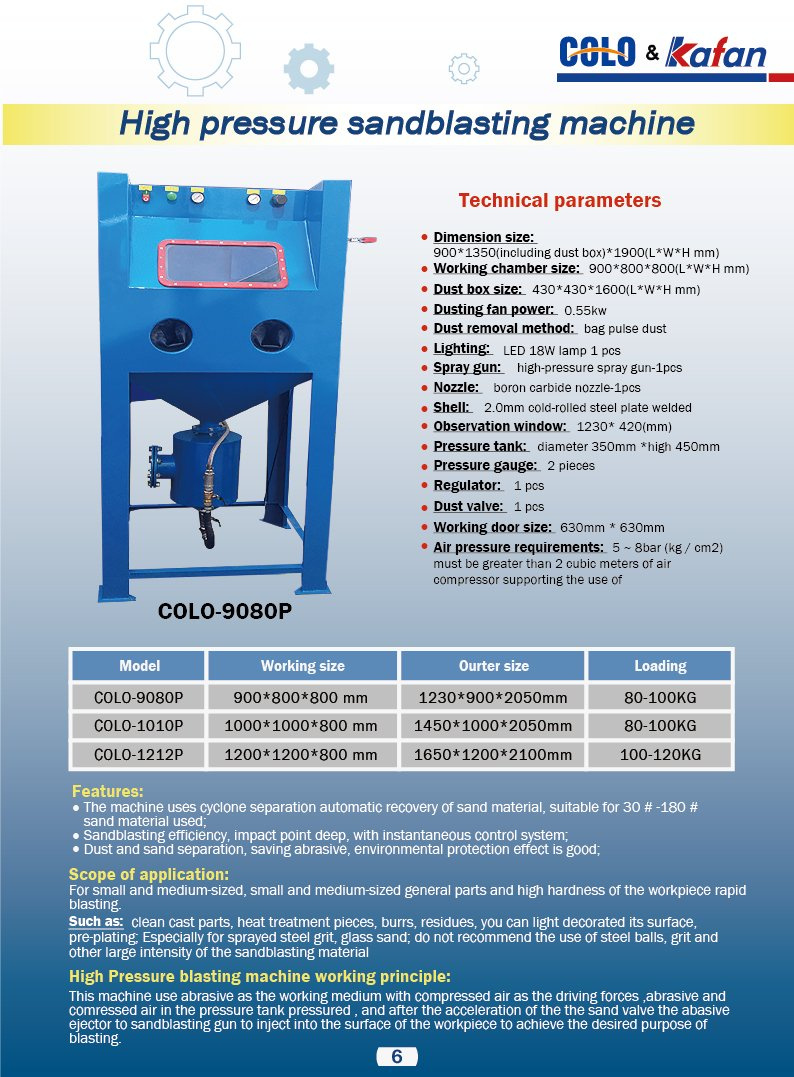

Specifications



Model  COLO-1212P Pressure Blasting Cabinet
Outside Size L1650*W1200*H2100mm
Cabin Size   L1200*W1200*H800mm
Max.Loading 100-120kgs
Dust Collector Size     L430*W430*H1600mm
Pressure Tank Diameter350mm, height450mm
Pressure Gauge 2 pieces.
Number of gun 1 set with boron carbide nozzle
Power supply   110V/220V/380V/410V/450V/(50-60Hz), made as local.
Dust Collector motor  0.55kw
Lighting  18w fluorescent
Air source requirement::pressure 5-8bar (kg / square meter)
