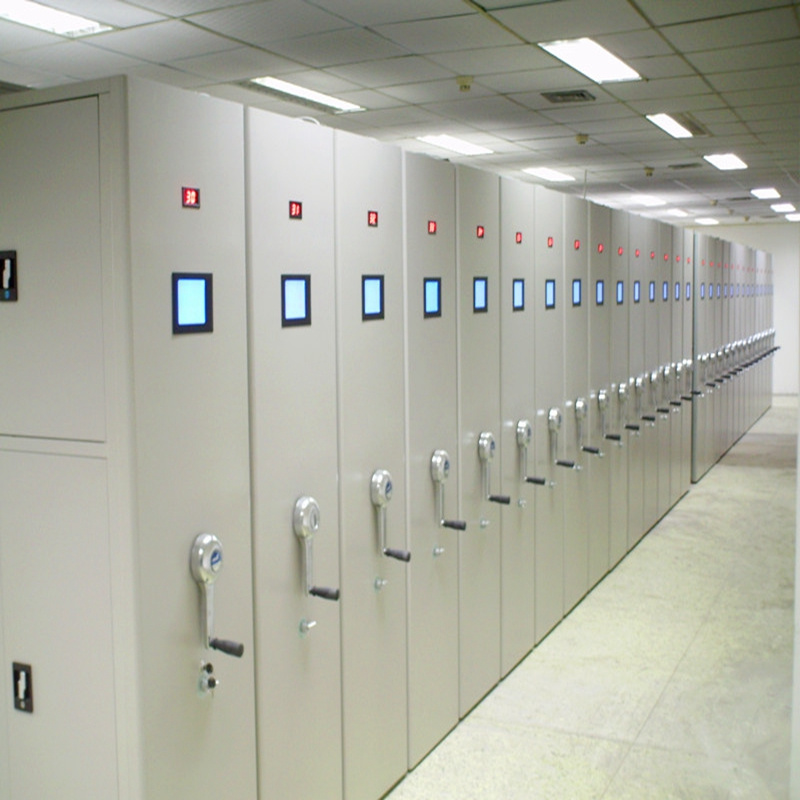

Storage Mobile Shelving/Mobile Shelving System/Rivet Warehouse Rack & Storage Shelf
| Price: |
Negotiable/Ton |
| Min Order: |
17/Ton |
| Pay Type: |
L/C,T/T |
| Prod Model: |
17-S015 |
| Usage: |
Office, School, Home, Hotel, Hospital, Company |
| Certificate: |
ISO9001, ISO 14001 and GB/T28001 |
| Layer: |
6 Layers |
Product Description
Storage Mobile Shelving/Mobile Shelving System/Rivet Warehouse Rack & Storage Shelf | Product Name | Storage Mobile Shelving/Mobile Shelving System/Rivet Warehouse Rack & Storage Shelf |
| Size | H2400*W900*D560mm |
| Usage | Offioffice,school,home,hotel,hospital,company,factory, and other commercial area. |
| Thickness | 0.6mm as regular, 0.5-1.2mm available |
| Color | light grey ,Customized |
| Certificate | ISO9001, ISO 14001 and GB/T28001 |
| Port | Nanchang,shanghai,Shenzhen, Guangzhou, Qindao |

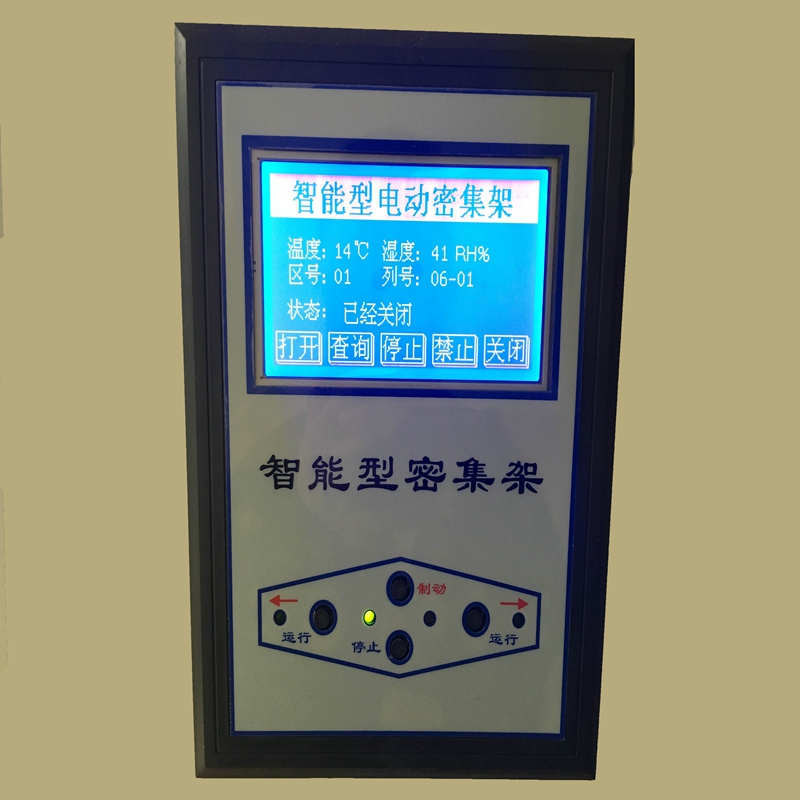

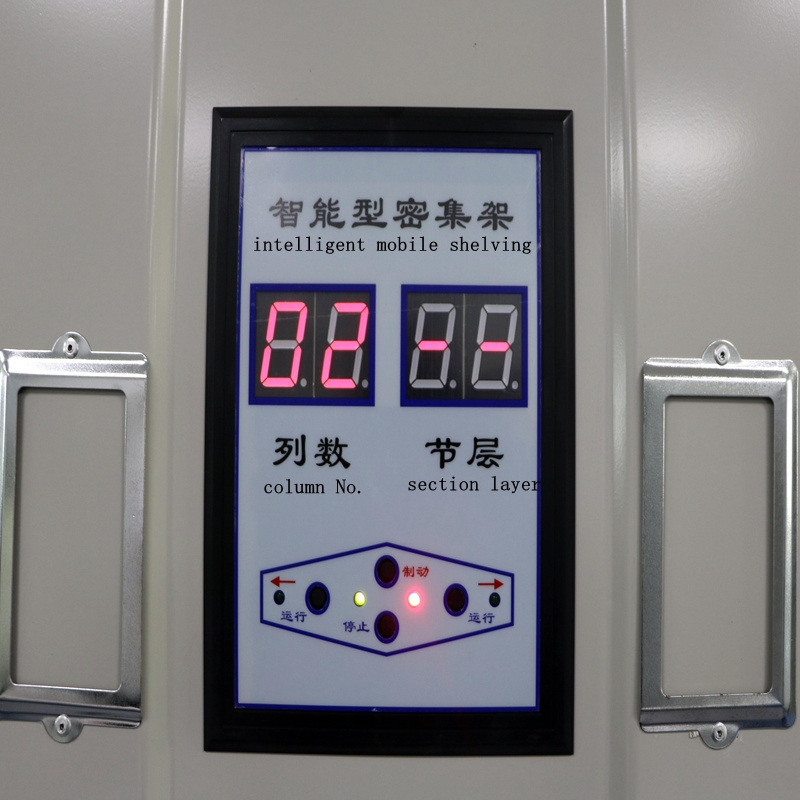

Features:1. 10.4-inch color touch screen control, beautiful appearance, easy to operate.2. Long distance on the radio photoelectric switch, real-time monitoring between the body volume dropping, personnel access, etc.3. Far infrared human body detector real-time monitoring, full protection of user safety.4. lighting equipment: frame open lights on, frame close the lights off, not only save energy, but also provide the necessary lighting.5. Wireless remote control function.6. Automatic reversal function when person in the channel.7. With the computer wired or wireless long-distance communication, to achieve network management. 8. Digital library management software to achieve entry, borrowing, automatic reminders, bar code management.Process: the use of emulsifiers and alkaline to help degrease, phosphoric acid rust, zinc film phosphating, passivation, electrostatic spray powder coating.Smart mobile shelving structure:With a set of manual, electric running structure. mainly by the column, shelves, hanging plate, side panels, chassis, motor and other components. It is the Light, machine, electrical integration products.Functions:- Frame lock function;
- Infrared security detection function;
- Design of Safe Voltage for Low Voltage Direct Current 24 V;
- Intelligent automatic return function;
- Real-time display of temperature and humidity and automatic ventilation function;
- Equipped with high-performance LCD;
- Using ODBC programming, can be connected to a variety of large databases.
Material:Shanghai Bao Steel quality SPCC cold-rolled steel Size:can be customized Specifications Technical Parameters:Regular size: H2400mm,W900mm/bay, D500mm, 6 storage levels, distance between levels 330mm, load 80 kg/level, rail 20mm×20mm square steel, chassis 3.0mm, double-sided upright 1.5mm, shelf plate1.0mm, side panel 1.2mm, door 1.0mm, rotating mechanism, shockproof device, anti-fall device, brake device, dustproof, anti-rat device, intelligent control system, etc.
1.Packing method: Totally knock-down ,Standard export carton (packing with pearl foam and foam board );
2.Can Put logo on the cartons, the name of the model and details of the model such as pieces, dimension etc;
3.Can have a product sketch printed outside of the package;
4.Can provide test report;
5.Protection packing inside, foam materials, Anti-Moisture plastic etc;
6.Shipping:EXW & FOB & CNF & CIF can be accept, competitive ocean freight with professional container loading team.
Yuanjin Science & Technology Group Co., Ltd. Which is located in Zhangshu, Jiangxi, China. Companies registered capital of 61.88 million Yuan, with a total investment of 180 million Yuan, covers an area of over 30, 000 square meters.
It is known as the State High-tech Enterprise possessed strong technical force and well-equipped workshop. Moreover, it converges a number of talented staff who are expert at the field of machine, CNC machinery (Computerized Numerical Control machinery), product research, software development and so on. And has a number of advanced CNC mechanized assembly line and automatic picking, phosphating, electrostatic spray lines introduced from Germany. The main products are: File equipment, books equipment, storage equipment, medical equipment, insurance equipment, office furniture, six series and over 512 varieties. Various products has been selling throughout the country and exported to Russia, Brazil, South America, Southeast Asia and other countries and regions.
Our main products as below:
1. Library equipment series:
1) Mobile shelving for archive storage (including manual shelves and power shelves);
2) Bookshelf (material: Steel or steel/wood);
3) Steel cabinets;
4) Carrels and chairs;
2. Office equipment series:
1) Office tables and chairs;
2) File cabinest;
3) Various steel lockers;
3. Insurance equipment series:
1) Iron cash box;
2) Explosive storage;
3) Vault door
4. Industry storage
1) Pallet racks;
2) Pallets and wire containers;
Yuanjin Products have their own core technology and intellectual property. 81 items' technologies obtained national patent certificates. "Yuanjin" trademark is identified as "Chinese Well-known Trademarks" by the State Administration of Industry and Commerce. "Yuanjin" brand compact shelving and bookshelf products are named "Jiangxi Province Famous Brand Products" which has passed through the ISO9001 quality management system certification, ISO14001 environmental management system certification, China Environmental labeling products certification, and OHSMS18001 occupational health and safety management system certification.
Adhering to the spirit of "quality is source, credit is gold'', Yuanjin insists on leading the way for high quality products and superior service, providing you with perfect solutions on the filing storage and industry storage.
