| Item No.: | YJM-04 |
| Brand Name: | Yuanjin |

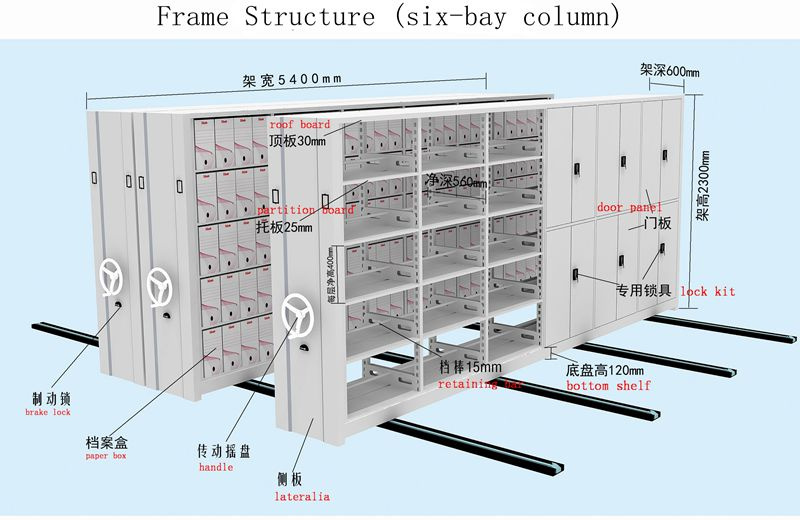

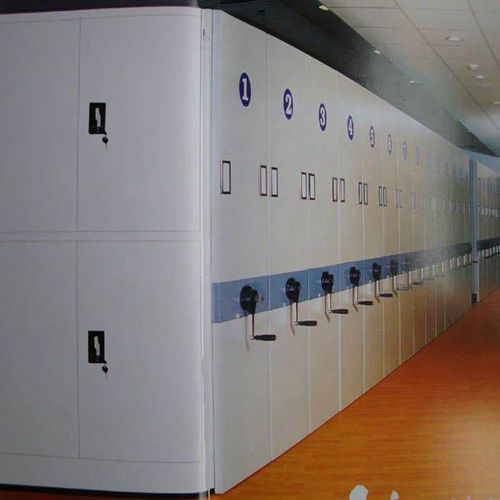

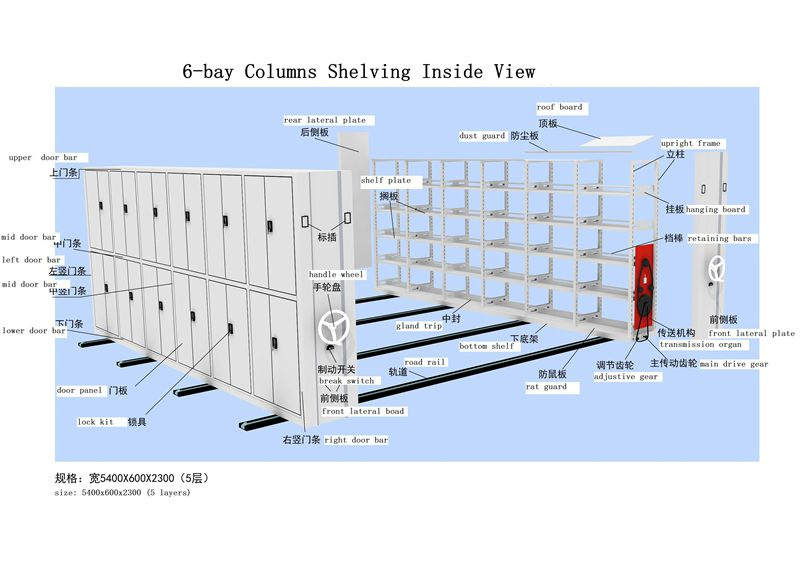

| Item Name: | 6-bay double-sided mobile filing shelves |
| Size: | L900*D600*H2300/pc |
| Layers: | 5 storage space |
| Material: | high-quality cold-rolled steel Q235 |
| Color: | light grey |
| Surface finishing: | eploxy powder coating |
| Technic: | environmental powder coating ,static electricity spurtmold , pickling and phosphorization technics to deal with the surface to ensure the elegance and solidity of the products,prevent the paint losing and rusting. |
| Packing: | knock-down in export carton, the same member individually packaged |
| Load capacity: | 60-80pcs/20FCL, 150-170pcs/40HQ |
| Materials: | |
| | chassis: 2.8mm hot-rolled steel, GB710-88 |
| | rail: 20*20 solid square steel, GB699-88 |
| | sill beam: 2.8mm hot-rolled steel |
| | axle bumper & clamping device: 2.0 hot-rolled steel |
| | upright: 1.5mm cold-rolled steel, GB710-88 |
| | partition board: 1.0mm cold-rolled steel, GB710-88 |
| | hanging board: 1.0mm cold-rolled steel, GB710-88 |
| | shelf board: 1.0mm cold-rolled steel, GB710-88 |
| | baffle: 0.8mm cold-rolled steel, GB710-88 |
| | door frame: 0.8mm cold-rolled steel, GB710-88 |
| | door: 1.0mm cold-rolled steel |
| | positioning module: ABS injection moulding |
| | side panels: deluxe concave-convex type 0.9mm cold-rolled steel, GB710-88 |
| | bearing: double the nucleus HR204E, GB710-88 |
| | transmission shaft: Φ20 solid steel 45#, GB699-88 |
| | steel pipe connection: Φ20 solid steel 45#, GB699-88 |
| | steel roller: HT200 gray iron, GB9439-88, 1000kg/roller |
| | gear: ZG45 roller, GB1135-89 |
| | motorcycle chain: Φ8.5 pitch, 12.7FR 420, GB1244-85, ISO9001 certified |
| | handle: imported plastic steel, A bi-directional overrunning clutch structure GB1285-85 |
| | handle assembly: roller bearing, A bi-directional overrunning clutch structure GB1285-85 |
| | side column lock kit: 808 lock, luxury, each column are provided with braking device |
| | gate lock: buckle type square lock |
| | shock-proof seal: 20mm, magnetic refrigerator door stopper |
| | roof: 0.8mm cold-rolled steel, GB710-88 |
| | dust guard, rat guard: 0.8mm cold-rolled steel, GB710-88 |
| | device preventing tilting: 3.0mm cold-rolled steel, GB710-88 |
| | preprocessing: Zn phosphorization, USA standard, ISO9001 certified |
| | high pressure electrostatic spray: epoxy polyester mixed powder |
| | water washing: ≤10ЦS conductivity, USA standard |
| Applications: | law libraries |
| | public & privite libraries |
| | health care storage |
| | government offices |
| | fine art storage |
| | archival storage |
| | archeological storage |
| | backroom storage |
| | bank |
| | institute and school |
| Features: | 1. Maximum space utilization and perfect seal, neat/elegant for file storage; |
| | 2. Good performance, easy to disassemble and Install; |
| | 3. High reliability anti-tilting ability; |
| | 4. Strong, durable and steady; |
| | 5. Security acess control; |
| | 6. Soft start and soft stop. |
| Service: | 1. 10 years warranty; |
| | 2. Various sizes and colors available; |
| | 3. with prompt delivery and competitive price; |
| | 4. offering multiple perfect workable solutions for free for customers' reference; |
| | 5. Has after-sales service department to accept and treat feedback information from customers. |
