Steel Centre Bench Laboratory Furniture (JH-SL008)

Name: Steel Centre Bench Laboratory Furniture (JH-SL008)
Brand: thisfurniture.com
SKU: 722748725
Availability: InStock
Rating: 4.3 (111 reviews)

Price:	US $ 500-1000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JH-SL008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material For Steel Bench:	1.0mm Steel Plate Coated with Epoxy Resin Powder
Colour:	Based on Customer's Requirement.
Worktop:	19mm Epoxy Resin/16mm Lab Grade Phenolic Resin
Handle:	304 Stainess Steel U-Type Handle
Reagent Shelf:	Steel and Tempered Glass
Material:	Steel

Product Description

^{Specification:
Product name: Steel centre bench(lab furniture)}
^{Type: JH-SL008
The size and colour can be custom-made requested by customers.}

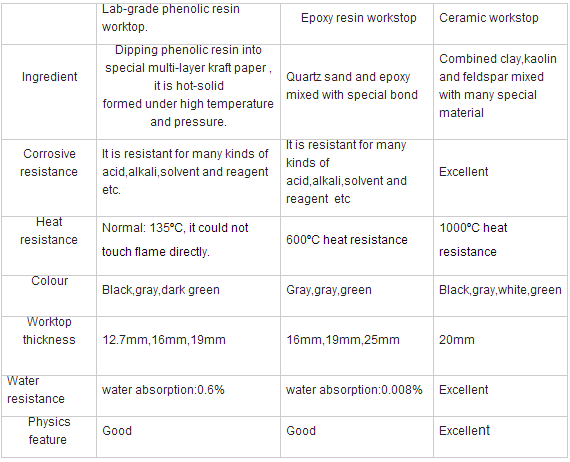

A. Worktop: The worktop is based on the requirement of customers for lab bench such as phenolic resin board, epoxy resin board or ceramic board. The edge of worktop will be treated specially to ensure its safety for human body.

B. Door and cabinet body: The cabinet is made of high quality 1.0/1.2mm cold rolled sheet with different thickness as per its different loading weight. The surface is treated by acid washing, phosphorization before coating by epoxy resin powder.The inside cabinet is equipped with adjustable setting for mobile layer. All the welding points have been polished specially which will not hurt the hand. The inside cabinet is with front and back upright columns and reinforcing ribs to increase the bearing capacity and impact resistance capacity. We can fill the sound insulation material into the inside space between two layers if it's required by customer.

C. Handle: Stainless steel U-type handle or long handle shaped once made of steel.

D. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.

E. Hinge: Using durable 304 stainless exterior steel hinge or 304 hydraulic hinge with excellent weight capacity which is rust resistance and can be used for long time.

F. Drawer sliding rail: Using 3-joints bearing drawer rail with noise reduction, it can ensure the full opening for the drawer with good bearing capacity and without deforming.

G. Shelf: The shelf is made of steel frame and steel hanging pieces. The layer is made of toughened glass which is suitable to put all kinds of chemicals on it. There are multi-functional or other type of sockets on the column to satisfy the customers from different countries.

Installation: The installation procedures are designed to be very simple. It can be finished perfectly only by using a screw knife. We can furnish CAD installation drawing and installation guidance for your reference.

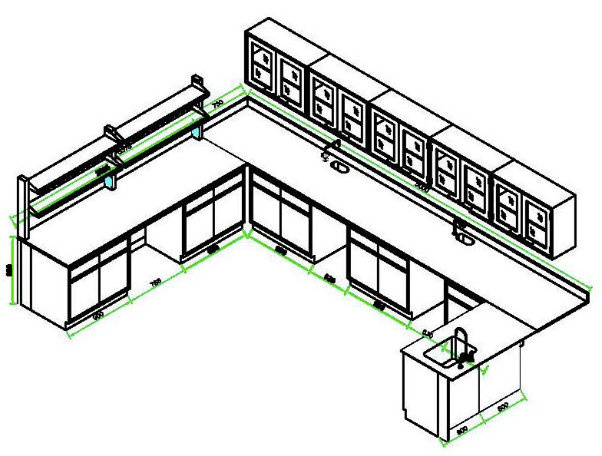

Sample CAD drawing furnished by free of charge:

Jiangsu jiahong laboratory equipment co, Ltd. Is a professional manufacturer for fume hood, lab furniture and lab fitting. Our company is located in suzhou city, jiangsu province which is very near with Shanghai and the traffic is very convenient. We take on the designing, production and installation for lab system based on customer's requirement.

Our products include steel fume hood, PP fume hood, steel lab furniture, wood lab furniture, wood lab furniture with frame, various lab cabinets, epoxy resin worktop, lab accessories etc.

We have advanced CNC machine, very big production base, experienced workers and technicans. It ensures the quality and production volume of our products. We have exported to many countries including Greece, USA, Argentina, and some countries in Middle East and Africa, including universities, schools, pharmacy factories, hospitals etc. Some of our products have been got SGS and CE product certification.

Our company has obvious cost advantages compared with many producers. Our company has own dependent automatic epoxy resin coating line which is very advanced in China. Seldom manufacturer in our field has own coating line in China. It reduces our production cost, and ensures the coating quality and delivery time.

Our company declare solemnly: We will furnish most professional information with the most honest heart if you are familiar with our field or not. Seeking the long cooperation with customers is our basic object. Pls tell us if you have any requirement for product quality or any suggestion for our products, we will furnish the best service for your satisfaction.
