| Prod Model: |
JH-SL013 |
| Hinge: |
304 Stainless Steel Exterior Hinge |
| Drawer Slide: |
Dtc 3-Joints Drawer Slide Without Noise |
| Worktop: |
19mm Epoxy Resin/16mm Lab Grade Phenolic Resin |
| Size Of Wall Mounted Cabinet: |
900X300X600mm |
| Reagent Shelf: |
Made of Steel Plate and Tempered Glass |
| Cabinet Material: |
1.0mm Cold Rolled Steel Plate or Galvanized Steel |
| Handle: |
Long Grab Handle Formed by CNC Machine Once |
| Material: |
Steel |
| Color: |
Gray |
Product Description

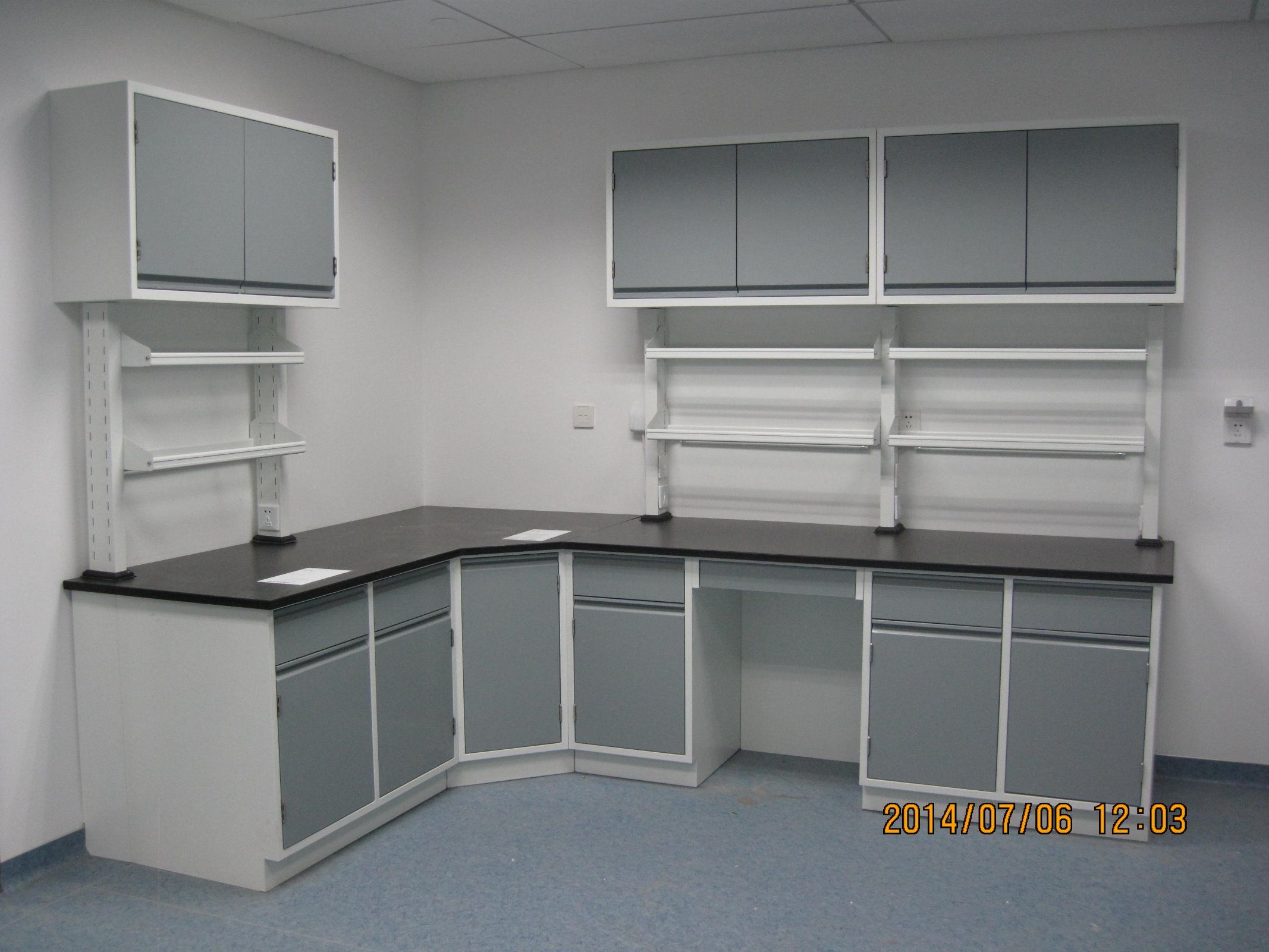

High quality steel lab furniture with wall mounted cabinet
Type: JH-SL013
Feature: 1. European model with high cost performance and better appearance and design.
2. Excellent weight capacity with more than 100KG.
3. Elegant and fashionable colour configuration which meets with the taste of most of customers.
4. Dissembled type for your selection to save transportation cost at most.
The size can be custom-made requested by customers.

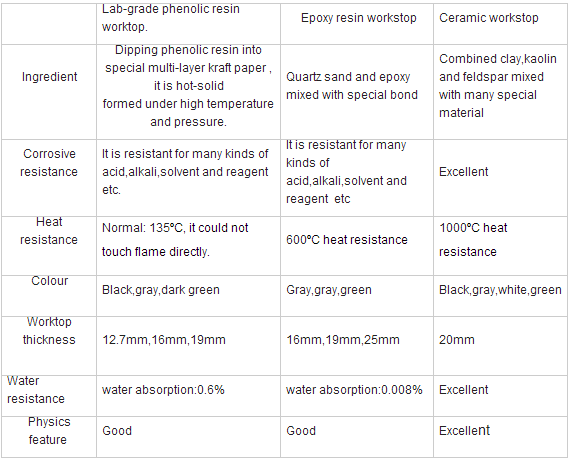

A. Worktop: The worktop is based on the requirement of customers for lab bench such as phenolic resin board, epoxy resin board or ceramic board. The edge of worktop will be treated specially to ensure its safety for human body.
B. Door and cabinet body: The cabinet is made of high quality 1.0/1.2mm cold rolled or galvanized sheet with different thickness as per its different loading weight. The surface is treated by acid washing, phosphorization before coating by epoxy resin powder. The cabinets can be opened with all blank space without middle support. The inside cabinet is equipped with adjustable setting for mobile layer. We can fill the sound insulation material into the inside space between two layers if it's required by customer.with excellent bearing capacity for the support of drawer.
C. Handle: Stainless steel U-type handle or long handle shaped once made of steel.
D. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.
E. Hinge: Using durable 304 stainless exterior steel hinge or 304 hydraulic hinge with excellent weight capacity which is rust resistance and can be used for long time.
F. Drawer sliding rail: Using 3-joints bearing drawer rail with noise reduction, it can ensure the full opening for the drawer with good bearing capacity and without deforming.
G. Shelf: The shelf is made of steel frame and steel hanging pieces. The layer is made of toughened glass which is suitable to put all kinds of chemicals on it. There are multi-functional or other type of sockets on the column to satisfy the customers from different countries.
H. Wall mounted cabinet: It's supported by column of reagent shelf which is with excellent weight capacity. The material is same as free standing cabinet.
Dissembled steel cabinets are for your option to save transportation cost most. We have enough stock for regular standard cabinet, connection frames and knee panels etc with regular size and the delivery time would be about 1 week.Customer can assemble lab furniture with any size locally if they have stock enough and complete project locally with high efficiency. It would become past time to order goods from CHINA for every batch of goods. It would help customers to save time and finish projects asap and increase margin by saving transportation cost. It would improove the intergrated competitiveness for our customers obviously.
Jiangsu jiahong laboratory equipment co, Ltd. Is a professional manufacturer for fume hood, lab furniture and lab fitting. Our company is located in suzhou city, jiangsu province which is very near with Shanghai and the traffic is very convenient. We take on the designing, production and installation for lab system based on customer's requirement.
Our products include steel fume hood, PP fume hood, steel lab furniture, wood lab furniture, wood lab furniture with frame, various lab cabinets, epoxy resin worktop, lab accessories etc.
We have advanced CNC machine, very big production base, experienced workers and technicans. It ensures the quality and production volume of our products. We have exported to many countries including Greece, USA, Argentina, and some countries in Middle East and Africa, including universities, schools, pharmacy factories, hospitals etc. Some of our products have been got SGS and CE product certification.
Our company has obvious cost advantages compared with many producers. Our company has own dependent automatic epoxy resin coating line which is very advanced in China. Seldom manufacturer in our field has own coating line in China. It reduces our production cost, and ensures the coating quality and delivery time.
Our company declare solemnly: We will furnish most professional information with the most honest heart if you are familiar with our field or not. Seeking the long cooperation with customers is our basic object. Pls tell us if you have any requirement for product quality or any suggestion for our products, we will furnish the best service for your satisfaction.
