Standard 19'' Cabinet Network Data Cabinet 24u

Prod Model:	AS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Capacity:	18u,22u,27u,32u,37u,42u
Loading Capacity:	800kg
Width:	600mm,800mm
Depth:	600mm,800mm,1000mm
Material:	SPCC Cold Rolled Steel
Color:	Black,Gray,White
Feature:	Floor Standing
Surface Finish:	Powder Coating
Optional Service:	OEM
Certificate:	ISO
Type:	Server Cabinet
Fan Number:	Four
Usage:	Network Integration System
Installation:	Vertical

Product Description

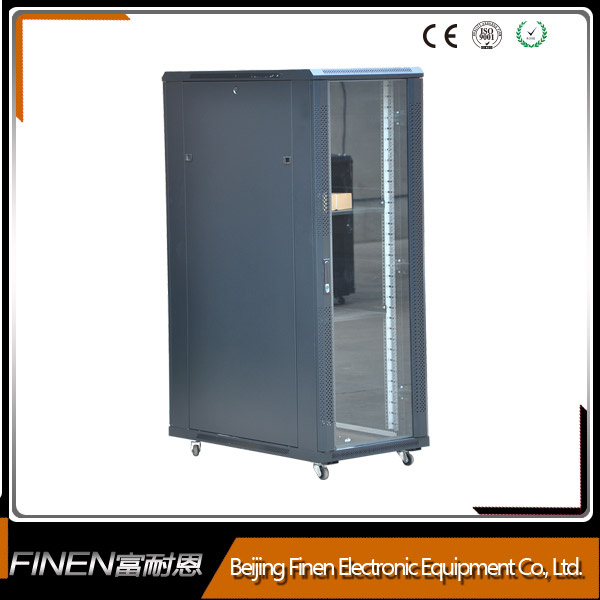

Standard 19'' cabinet Network Data Cabinet 24u

1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-10 days)
4)High quality & reasonable price

1. Product Information
1). Feature
-Toughened glass front door with vented border and ergonomic handle lock
-Vented rear door with round lock
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and base plate with adjustable sizes
-Optional installation of plinth for extra ventilation and ease of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, easy to install and remove, key locks available are accessory.

2). Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard

3). Main Material
SPCC Cold rolled steel

4). Surface Finish
Degreasing, Pickling, Phosphating, Powder coating.

5). Degree of Protection: IP20

6). Loading Capacity: 800kg

2. Nework Cabinet Applications

Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment

3. Who are we?
1). A manufacturer of server rack and network cabinet with 30 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.


4. Other choice
A3 series cabinet- vented flat mesh front and rear door
WL series cabinet- wall mounted cabinet(4U 6U, 9U, 12U)

All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors

Cabinet Package Contents
No.	Component name	Quantity	Unit	Material	Remark
1	Top Cover	1	pc	SPCC cold rolled steel T1.0
2	Fan Unit	1	pc	---	With 2/4 fans
3	Mounting Profile	4	pc	Zinc plated  T2.0
4	Mounting angle	6	pc	SPCC  T1.2	4pcs for lower 30U
5	Frame	2	pc	SPCC  T1.2
6	Lock	2	pcs	---	Handle lock
7	Front Door	1	pc	SPCC  T1.2	Tempered glass
8	Rear Door	1	pc	SPCC  T1.0	Mesh door
9	Side Panel	2	pcs	SPCC  T1.0	Removable
10	Bottom Panel	1	pc	SPCC  T1.0
11	Screw	20	pcs	---	50pcs for over 30U
12	Square Nut	20	pcs	SPCC  T1.0	50pcs for over 30U
13	Castor	4	pcs	Steel
14	Adjustable leveling feet	4	pcs	Steel
15	Other components are available according to request
Specification Model No. Capacity(U) Width(mm) Depth(mm) Height(mm) Cubic(CBM) AS-6618 18 600 600 998 0.17 AS-6818 600 800 998 0.20 AS-6018 600 1000 998 0.23 AS-6622 22 600 600 1166 0.192 AS-6822 600 800 1166 0.243 AS-6022 600 1000 1166 0.30 AS-6632 32 600 600 1610 0.28 AS-6832 600 800 1610 0.33 AS-6032 600 1000 1610 0.38 AS-6637 37 600 600 1833 0.30 AS-6837 600 800 1833 0.35 AS-6037 600 1000 1833 0.42 AS-6642 42 600 600 2055 0.32 AS-6842 600 800 2055 0.38 AS-6042 600 1000 2055 0.46
