| Prod Model: |
WL Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Wl |
| Product Name: |
Server Cabinet |
| Installation Type: |
Vertical |
| Optional Color: |
Black,Gray,White |
| Feature: |
Wall Mounted Cabinet |
| Width: |
600mm |
| Depth: |
450mm |
| Surface Finish: |
Powder Coating |
| Material: |
SPCC Cold Rolled Steel |
| Optional Service: |
OEM&ODM Service |
| Type: |
Server Cabinet |
| Usage: |
Remote Monitoring System |
| Certification: |
RoHS |
| Installation: |
Wall-Mounted Cabinet |
| Condition: |
New |
| Fan Number: |
Optional |
| Capacity: |
4u-18u, 4-12u |
Product Description

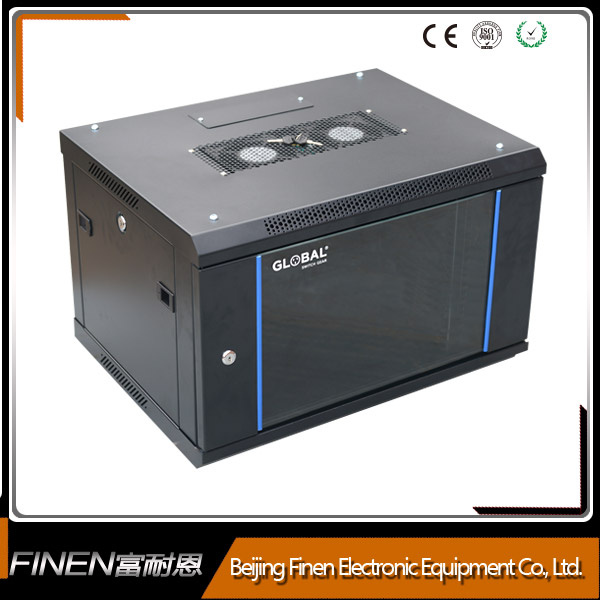

Wall Mounting Network Cabinet, Server Rack
Specification:
Technical specifications:
1. Solid welded frame, maximum load capacity 60kg
2. The turning angle of front door is above 180 degree;
3. Degree of protection: IP20
4. Top fan and air intake around cabinet help exhaust hot-air
5. Quick released side panel with lock
6. Cable entry in top and bottom
7. Surface finish: The degreasing, pickling, phosphoric, powder coated;
8. Material: SPCC cold rolling steel plate, mounting angle: 2.0mm, others is 1.2mm
9. Color: Black or other colors available
Item Wall Mounting Network Cabinet, Server Rack
Color black or other colors available
Size 4U-18U, custoimzed
Application Telecommunication
Maximum load capacity 60KG
Sample and OEM available
Compliance:
ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard
Contains:
1. Front Glass or Steel Door
2. Standard Accessories: 1 or 2 Fans on top
3. Shelves: No or 1-2
4.1 Piece of required standard PDU
5.30 x Screws
| 1.Standard | Complies with ANSI/EIA RS-31O-D,IEC297-2,DIN41491:PART1,DIN41494:PART7,GB/T3047.2-92,;ETSI Standard |
| 2.Feature | 1) Loading Capacity:60kg
2) Mounting profile:2.0mm,others:1.2mm
3) Reversible, front tempered glass door
4) Toughened glass on front door
5) Side Panel: Removable Side Panel, Easy To Install And Maintain (Lock Optional)
6) Revolving front locks
7) Vented front and sides for cooling
8) Pre-punched provision for 1 fan (with fan or not)
9) Pre-punched holes for cabling
10) Protection grade:IP20
11) Material :PCC Cold Rolled Steel
12) Surface Finish Degreasing, Pickling, Phosphating, Powder coating.
13) Color: black, white, grey.
14) Certification: ISO 9001:2000
15) OEM service available
|
| 3.Main Material | SPCC Cold rolled steel |
| 4.Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
| 5.Degree of Protection | IP20 |
| 6.Loading Capacity | 60kg |
| Model | Specifications |
| WM6406 | 600mm*450*6U |
| WM6409 | 600mm*450*9U |
| WM6412 | 600mm*450*12U |
