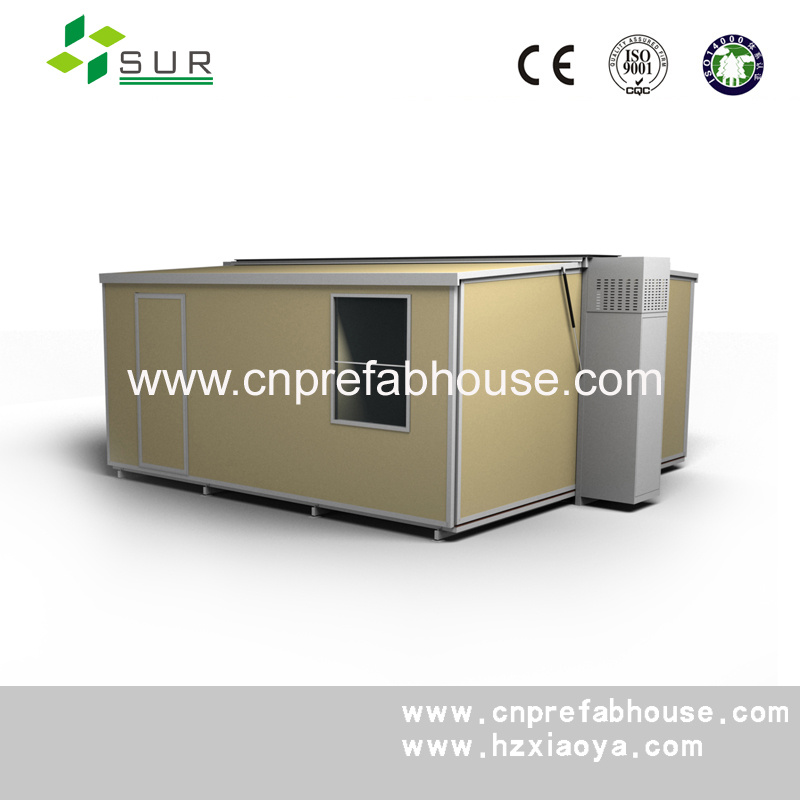

| Prod Model: |
TIO2.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

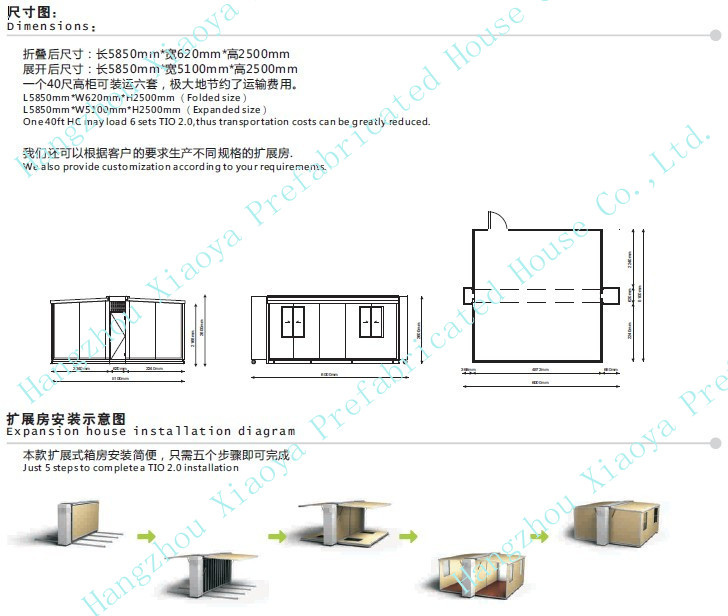

| Folded Size: |
L5850mm*W620mm*H2500mm |
| Expanded Size: |
L5850mm*W5100mm*H2500mm |
| Configuration: |
Bedroom, Shower Room, Toilet, Wash Basin |
| Steel Structure: |
Galvalized Steel |
| Panel: |
EPS/PU Steel Sandwich Panel |
| Door: |
Special Designed Aluminum Frame Door |
| Window: |
Special Designed Aluminum Window |
| Material: |
Steel Structure |
| Usage: |
Hotel, Kiosk, Booth, Office, Sentry Box |
Product Description
Steel structure container homes: widely used in construction site, the quarry/mining site, residence, office, toilet, kiosk1. CE Certification
2. Good water-proof and insulation
3. Quick installation, module
4. Wind load: 220km/h
5. 7sets load in 40HQ
Item Specification
1steel frame :base frame3.0mm steel plate bending
2base secondary beam:2.5mm steel plate bending
3column: 2.5mm steel plate bending
4roof frame:3.0.mm steel plate bending
5corner fitting:special container corner fitting
6forklift slot:3.0mm steel plate bending
7strengthen steel plate:6.0mm steel plate
8panel :external wall panel :50mm EPS sandwich panel (steel plate thickness:0.5mm)
9roof panel :50mm EPS sandwich panel (steel plate thickness:0.5mm)
10outer roof panel:50mm EPS+75mm glass wool+0.5mm color steel plate
11flooring:floor plywood + pvc floor
12door&window:door:new stytle aluminium alloy door (0.85m*2m)
13window:new stytle aluminium alloy sliding window (0.9m*1.2m)
14window shutter:aluminium alloy shutter(0.9m*1.2m)
15 integration engineering:wallpanel slot:0.5mm color steel plate bending
16angular line:pvc angular line
17electricity:standard(2 switch,3 sockets,2 fluorescent lamps,1 distribution box)
Hangzhou Xiaoya Prefabricated House Co., Ltd., is located in the economy development area of Xiaoshan District, which is the economical core of Hangzhou City - The heaven on the earth.
Our company mainly produces color steel sandwich panels, color steel pressure panels and C channel. We process these materials into various prefab houses. The characteristics of color steel sandwich panels are heat preservation, heat-insulated, against corrosion and sound-insulated. Our main products are LGS (light steel) structure villas, steel structure villas, container houses, Xiaoya prefab houses, movable fences, protective toilets, sentry boxes and carport garages.
Our company possesses leading research ability and technology. We have been chosen as The commonly satisfactory quality and honest & excellent company by Zhejiang Newspaper and many institutions. We are awarded as AAA level enterprise, and have passed IS09001-2000 Quality Management System Authentication.
Our business range covers Shanghai, Beijing. Chengdu, Fujian, Anhui, Jiangsu, Jiangxi, Wuhan and so on. Products are exported to Europe, the Middle East, Southeast Asia, Africa and South America. We create the greatest value for customers by high quality, effective and energy conservative products and practical service.
With creation and progress, we believe everything is possible. We insist on customers first, excellent service, high quality and favorable honor.
