| Prod Model: |
XYJ-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
L5800mm*W3250mm*H2100mm |
| Area: |
18.85sqm |
| Configuration: |
Bedroom, Shower Room, Toilet, Wash Basin |
| Steel Structure: |
Square Tube |
| Panel: |
EPS/PU Steel Sandwich Panel |
| Door: |
Special Designed Aluminum Frame Door |
| Window: |
Special Designed Aluminum Window |
| Life Time: |
Durable, Reusable |
| Design: |
Xiaoya Designed Specially, Safer |
| Advantage: |
Easy Assemble, Easy Move |
| Material: |
Steel Structure |
| Usage: |
Hotel, Booth, Office, Sentry Box, Guard House |
| Certification: |
CE |
| Customized: |
Customized |
Product Description
Service for you
1. Design--according to your drawings or some details needed
2. Fabrication--strictly fabricate every member based on the drawings confirmed
3. Installation--complete instructions for installation, or technical support by assigning our engineer on sit
4. Packing--reasonable packing ensures the quality and convenience to transport and installation
Description

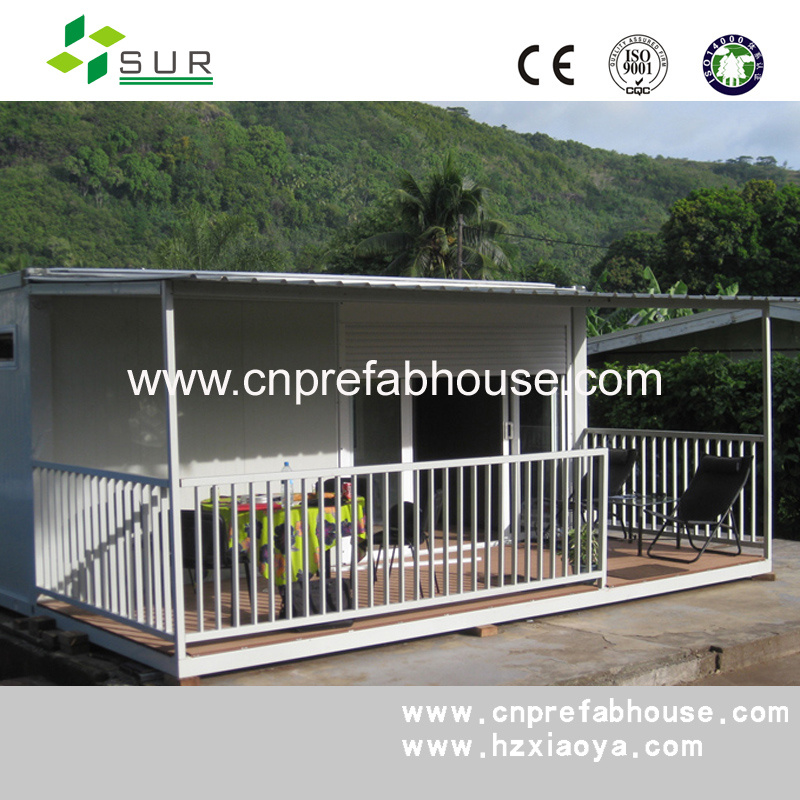

1. Perfect Apparent of Container house
We can design the appearance according to your requirement
2. Good design of inside part
We can offer the different styles according to different
Countries standards.
3. Excellent structure of base and roof steel
3mm galvanized steel bending, good structure of the roof
Material
1. Roof:
Steel sheet roof--- with color-steel sandwich panel (50mm)+75mmEPS
+50mm glass wool + color-steel sheet.
Water proof, leakage proof.
New design can prevent the water flow back.
2. Bottom:
Designed as a whole welded steel structure frame with high strength.
Can fit the load of living and working.
Can make the base insulation according to the requirement.
Temperature can adjust to meet the living requirement.
Rockwool board.
3. Heat-proof quality
Heat and sound insulation. EPS\PU\Rockwool.
Name: ISO9001: 2000 Certification container house.
Specification: 6055mm× 2435mm× 2640mm ( layout is flexible).
4. Door system:
Aluminum frame -design only for xiaoya.
Color-steel sandwich panel door(50mm).
5. Window:
Plastic steel\aluminum window with fly screen- Xiaoya designed specially
Installation
1. Quick installation and easy disassembly.
2. We can offer the installation guide drawings.
3. If it is the large quantity, we can send experienced engineer to guide the
Installation on the jobsite.
Certification
1. Sewage recycling treatment system, flushing the toilet using sewage;
2. Environment-friendly mobile toilets;
3. Prefabricated house special energy-saving security rolling curtain system;
4. Residential container house waterproof system;
5. Prefabricated house special aluminum alloy window frame;
6. Fast-expansion mobile house;
7. Fast-installation residential container house steel frame system;
8. Hydraulic type mobile house expansion system;
We can help you with designing your Container house or produce house with your own design plan.
If have any needs pls contact us.
| Size | 10ft, 20ft, 15ft, 40ft |
Desgin
parameter | 1.roof load: 0.6KN |
| 2.wind speed:210KM/hour |
| 3.seismic resistance: magnitude 8 |
| 4.temperature:suitable temperature -50°C to +50°C |
| Steel structure system |
| 1 | steel frame | base frame | 3.0mm steel plate blending |
| 2 |
| base secondary beam | 2.5mm steel plate blending |
| 3 |
| column | 2.5mm steel plate blending |
| 4 |
| roof frame | 2.5mm steel plate blending |
| 5 |
| fork lift | 3.0mm steel plate blending |
| 6 |
| strength plate | 6mm steel plate |
| Panel system |
| 1 | panel | external wall panel | 50/75/100mm insulated panel |
| 2 |
| Partition wall panel | 50/75/100mm insulated panel |
| 3 |
| roof panel | 50/75/100mm insulated panel |
| Flooring system |
| 1 | floor | base floor | Plywood |
| 2 |
| surface floor | PVC |
| Door and window system |
| 1 | door and window | door | aluminum sandwich panel |
| 2 |
| window | Aluminum/PVC/UPVC |
| Other projects |
| 1 | compressive project | wall slot | Color steel plate blending |
| 2 |
| corner fitting | angle aluminum and slot aluminum |
| 3 |
| joints | aluminum |
| 4 |
| accessories |
|
| 5 |
| processing |
|
Hangzhou Xiaoya Prefabricated House Co., Ltd., is located in the economy development area of Xiaoshan District, which is the economical core of Hangzhou City - The heaven on the earth.
Our company mainly produces color steel sandwich panels, color steel pressure panels and C channel. We process these materials into various prefab houses. The characteristics of color steel sandwich panels are heat preservation, heat-insulated, against corrosion and sound-insulated. Our main products are LGS (light steel) structure villas, steel structure villas, container houses, Xiaoya prefab houses, movable fences, protective toilets, sentry boxes and carport garages.
Our company possesses leading research ability and technology. We have been chosen as The commonly satisfactory quality and honest & excellent company by Zhejiang Newspaper and many institutions. We are awarded as AAA level enterprise, and have passed IS09001-2000 Quality Management System Authentication.
Our business range covers Shanghai, Beijing. Chengdu, Fujian, Anhui, Jiangsu, Jiangxi, Wuhan and so on. Products are exported to Europe, the Middle East, Southeast Asia, Africa and South America. We create the greatest value for customers by high quality, effective and energy conservative products and practical service.
With creation and progress, we believe everything is possible. We insist on customers first, excellent service, high quality and favorable honor.
