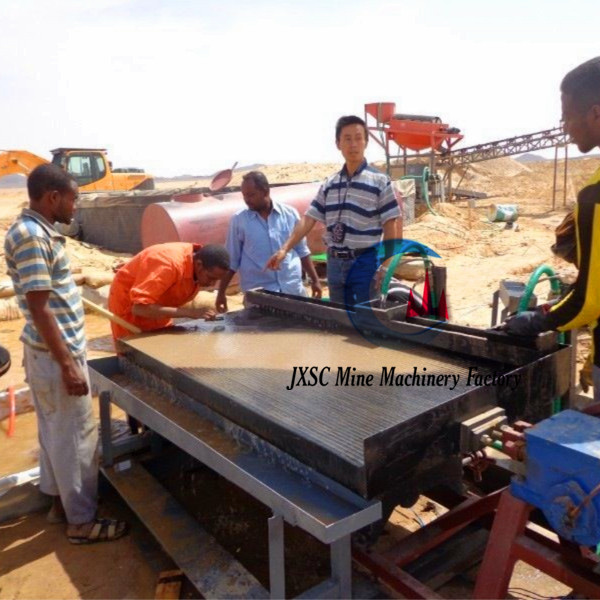

Small Vibrating Table for Gold Concentrating
Price: |
US $ 1650/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
6S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
4.5X1.85m |
Feeding Size: |
<2mm |
Power: |
1.1kw |
Mining Object: |
Metallic and Non-Metallic Ore Excavator |
Type: |
Gravity Separator |
Voltage: |
380V |
Weight: |
<1T |
Certification: |
CE |
Warranty: |
1 Year |
Color: |
Multi Color |
Customized: |
Non-Customized |
Condition: |
New |
Material: |
Fgrp |
Product Description
It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal, coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
Gold shaker tables is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
The table surface is constructed of ore sand or slime and is made up of glass fibre reinforced plastic or aluminum alloy.
Gold shaker tables are effective gravity separation equipment which can be used for different operation such as rough selection, elaborate selection and scavenging for large, medium and small-sized factories and applies to the sorting of nonferrous metal, ferrous metal, rare and precious metal, gold and nonmetallic ores of fine grains. Such shaking tables are divided into ore sand tables and ore slime tables. Ore sand tables apply to the sorting of coarse ores and ore slime tables apply to the sorting of fine ores.
Name | Unit | Course ore Deck | Fine sand Deck | Slime Deck |
Deck Size | Length | mm | 4450 | 4450 | 4450 |
transmission end width | mm | 1855 | 1855 | 1855 |
Concentrate end width | mm | 1546 | 1546 | 1546 |
Maximum Feeding Size | mm | 2 | 0.5 | 0.15 |
Feeding Amount | t/d | 30-60 | 10-20 | 15-25 |
Feeding Density | % | 25-30 | 20-25 | 15-25 |
Stroke | mm | 16-22 | 11-16 | 8-16 |
Frequency | f | 45-48 | 18-53 | 50-57 |
Water added | t/d | 80-150 | 30-60 | 10-17 |
Transverse slope of Deck | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° |
Longitudinal slope of Deck | ° | 1.4 | 0.92 | ------ |
Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 |
Cross-section Shape of Deck | | rectangular | saw tooth | triangle |
Motor Power | KW | 1.1 | 1.1 | 1.1 |
Transmission Mechanism | | Eccentric linkage |
Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.
Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
