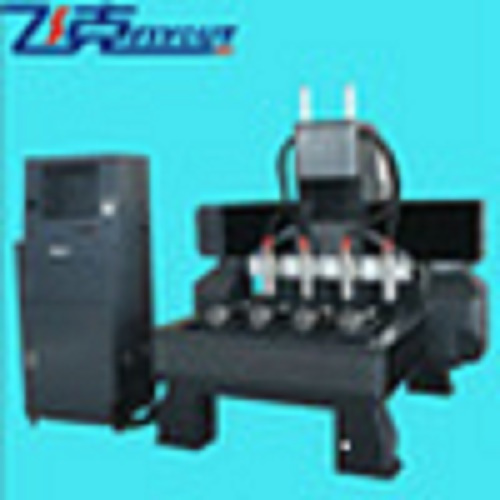

Small Size 7009X900mm Rotary and Flatbed CNC Engraver CNC Engraving Machine with 4 Heads

Small Size 7009X900mm Rotary and Flatbed CNC Engraver CNC Engraving Machine with 4 Heads
Price: US $ 8400-8500set/sets
Trade Terms: FOB,CFR,CIF
Min Order: 1set/sets
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FCT-7090C&W-4S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor And Driver: Stepper Motor and Driver
Control System: Original Nc Studio 74A Card
Transmission: Xz Tbi Ball Screw, Y Gear Rack
Xyz Rails: Pmi Square Rails
Spindle Power: 1500W X 4
Spindle Layout: Vertical
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Spindle Number: 4 Spindles

Product Description

CNC Flat-Rotary Multi-heads Engraver
Features:

The lathe is founded by industrial pipe weilding, box-type structure to ensure the high stability.

The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.

The major machine body makes the stability and no shacking in high speed.

XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.

The professional mechnical design, scientific structure and generous appearance.

XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
High quality driver motors, spindle motors, cables, inverters, etc.

High Accuracy, High Torsion and Professional Gear Box without any gaps, ensuure high engraving accuracy.

Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors. Oil lubrication system, 6- 12 spindle heads, etc.

Features:

1. The lathe is founded by industrial pipe weilding, box-type structure to ensure the high stability.

2. The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.

3. The major machine body makes the stability and no shacking in high speed.

4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.

5. The professional mechnical design, scientific structure and generous appearance.

6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.

7. High quality driver motors, spindle motors, cables, inverters, etc.

8. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensuure high engraving accuracy.

9. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Application:

Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.

Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:

Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.

Technical Parameters:

ModelFCT-7090-4S
Rotary diameter230
Rotary length800mm
Spindle powerWater cooling 1500w*4
Spindle rotation6000-24000rpm
Motor driveHybrid servo (France Schneider servo)
Tool diameter3.175, 4, 6
reducerOne reducer for one motor
Machine structureIndustry square tube structure
transmissionXZ ball screw Y gear rack
RailsTaiwan PMI
Mechanical accuracy<0.03/300mm
Cutting speed8000mm/min
Data transmissionPC-connection directly
Support formatG code or HPGL
Working voltageAC220V/50HZ or 380V/50HZ
Net weight600kg


Our services:

1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our factory.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.We will solve your problems immediately by E-mail, fax, Skype ,wechat,whatsaap,telephone.
6.Machine has been adjusted before delivery.

FAQ:

1. how should I pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment.I will send the machine to you.

2. how about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine,
including how to install the machine,
how to use machine. how to let machine work. and so on.
usually we will teach you how to do by email or by skype,wechat,whatsaap .
our engineer has many years of experience for cnc machine service .
he can speak very good english , so he can slove the problem in short time.

3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,
quality can be trusted, and most important thing is we can do better service after sales.
we know how to fix the problem in each parts easliy.
so welcome to visit to our factory

4. How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Snow Mao(overseas department salesman)
Tel: +86 18297900838
If you have any questions,I am very glad to answer for you.

Believe me, let us mutual benefit!
Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.

Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.

Service concept: Innovation, technology, services

Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.

Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.

Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
