Jiangxi Province County Mining Machinery Factory >> Small Magnetic Tube Separating Machine for Mineral Magnetic Intensity Test

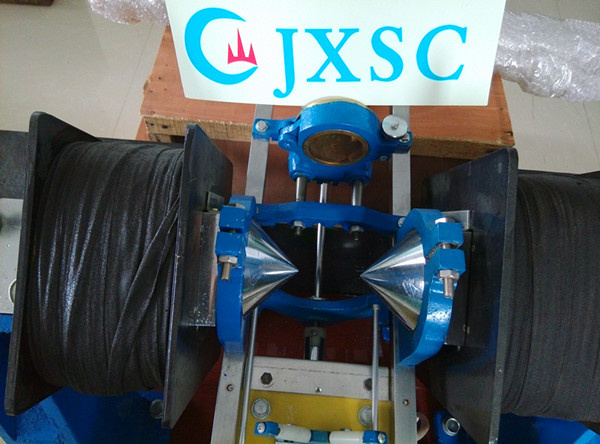

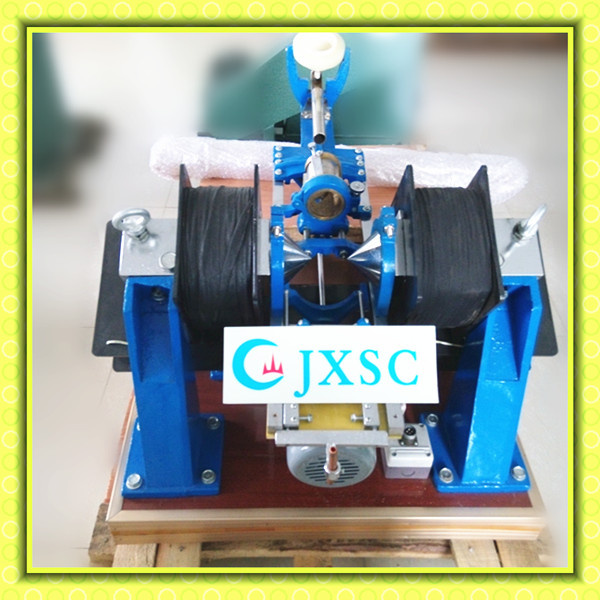

Small Magnetic Tube Separating Machine for Mineral Magnetic Intensity Test

Small Magnetic Tube Separating Machine for Mineral Magnetic Intensity Test
Price: US $ 5800-6100/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: XCGS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Diameter: 50mm
Distance Between Two Head: 50mm
Voltage: 220V, 50Hz
Power: 0.5kw
Magnetic Intensity: 0-200ka/M
Feeding Size: 0.5mm
Frequency: 70rpm
Mining Object: Magnetic Intensity Test Machine
Type: Beneficiation Machinery

Product Description

This magnetic tube separating machine is designed to test and define the magnetic intensity of the mineral. Which has been widely used in iron, coal, coltan, tungsten, chrome ore mining industries.




Operating process

1. install and check the machine is in good condition

2. prepare a 1 litre glass cup.

3. add 20 gram mineral power with 500ml water, and small amount of alcohol, mixing it and place it at least 5 minute.

4.  set the magnetic intensity as requirement.

5.  use the clip to close the small hose, put one basin under the hose mouth,  then start the machine.

6.  add water to the glass tube until the water over the magnet head about 50mm.

7.  add the mixture into the tube.

8.  open the clip, so the non-magnetic powder will go with the water, and the magnetic mineral stay in the tube.

9.  add water little by little from the top of the tube until all the non-magnetic powder go away.

10. stop the machine and wash the magnetic mineral from the tube.

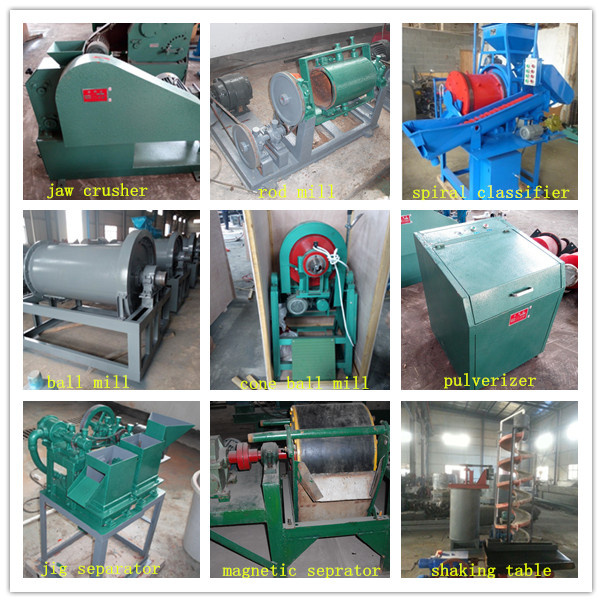

We also could provide other mining lab equipment, pictures as bellow, any needs please contact with us.

Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.

Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
