| Prod Model: |
XCGS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Diameter: |
50mm |
| Distance Between Two Head: |
50mm |
| Voltage: |
220V, 50Hz |
| Magnetic Intensity: |
0-200ka/M |
| Frequency: |
70rpm |
| Type: |
Beneficiation Machinery |
| Mining Object: |
Magnetic Intensity Test Machine |
Product Description

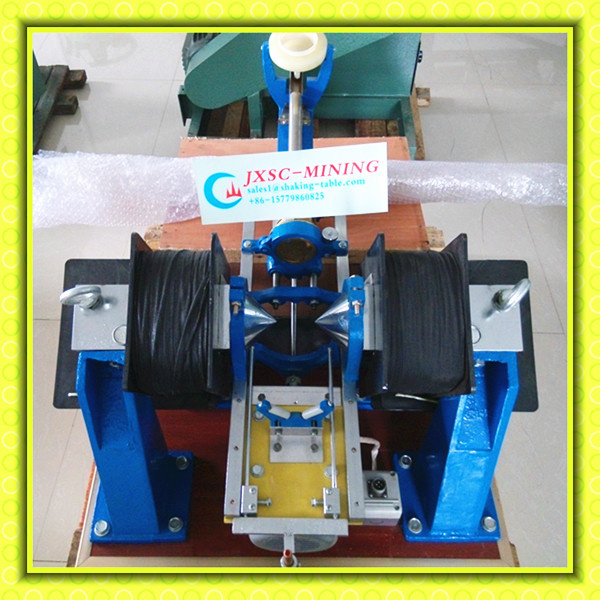

This davis tube tester is designed to test and define the magnetic intensity of the mineral. Which has been widely used in iron, coal, coltan, tungsten, chrome ore mining industries.
Operating process
1. Install and check the machine is in good condition
2. Prepare a 1 litre glass cup.
3. Add 20 gram mineral power with 500ml water, and small amount of alcohol, mixing it and place it at least 5 minute.
4. Set the magnetic intensity as requirement.
5. Use the clip to close the small hose, put one basin under the hose mouth, then start the machine.
6. Add water to the glass tube until the water over the magnet head about 50mm.
7. Add the mixture into the tube.
8. Open the clip, so the non-magnetic powder will go with the water, and the magnetic mineral stay in the tube.
9. Add water little by little from the top of the tube until all the non-magnetic powder go away.
10. Stop the machine and wash the magnetic mineral from the tube.
We also supply other laboratory machines, such as: Lab jaw crusher, lab ball mill, lab rod mill, lab pulveriser, lab magnetic separator, lab shaking table, lab spiral separator, lab jig separator, lab centrifuge, lab flotation machine, lab vaccum filter, lab leaching machine, lab screen machine and etc.
Any needs please contact with us.
|
Diameter of glass tube:50mm |
Frequency:70r/min |
|
Distance between two head:50mm |
Density:0-200KA/m |
|
Feeding Size:-0.5mm |
Power:<500 va |
|
Voltage:single phase 220v |
Weight:200kg |
|
Overall Size:1000*800*500mm |
Accessory:exitation power 1 set |
