| Prod Model: |
DEK-1325 |
| Power(W): |
4.5kw*4 |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
3070X1970X1550mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
4.5kw Water Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Taiwan Syntec/Weihong Nk300 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
4 Axis |
Product Description

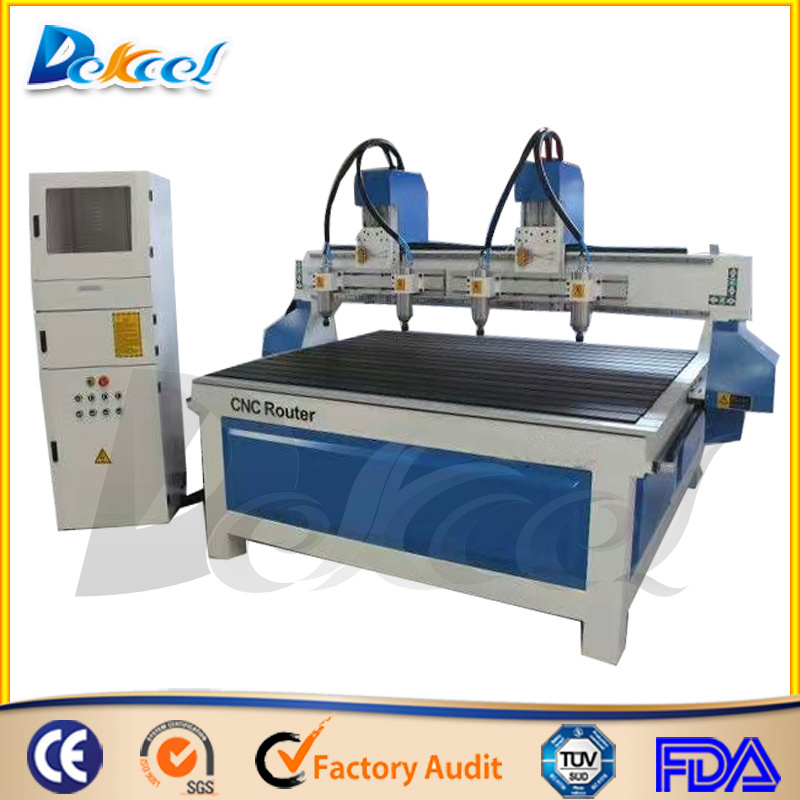

Feature of cnc carving machine for cylinder wood
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with thick steel.
3. Equipped with three pieces 3.5KW air cooling spindle, can be optional air cooling spindle, more powerful, enough to cut more thickness materials.
4.The pressing handle oiling system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. NC studio control system, can be optional DSP control system.
7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.
9.Function of re-carving after break point and power off, reducing the materials wasting.
10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Technical Parameters of 4 heads cnc cylinder wood carving machine :
Working area: |
1300*2500*300mm |
Spindle type: | Water-cooling spindle |
Spindle power | 4.5KW*4 |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power) |
5.8KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Worktable: |
T-slot and vacuum table combined ,4 vacuum zone with clamps |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision |
±0.03mm |
System resolution |
±0.001mm |
Control configuration: |
Weihong control system /Syntec control system |
Data transfer interface: |
USB |
System environment: |
windows 7 |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
Cutting thickness: |
0-40mm also (depends on different material) |
Z tool censor: |
yes |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector
10.their features could be customized accordingly |
Application of cnc router with four heads:
Our 4.5kw CNC woodworking engraving Machine is widely used in the wood industry to engrave and process red furniture and antique furniture which can be also used in the advertising to process models with various picture. It's widely used in wood engraving, wood cutting ,bamboo engraving, bamboo cutting, marble engraving , marble cutting ,duotone acryl engraving, duotone acryl cutting, plastic engraving, plastic cutting and metals such as copper engraving, cooper cutting and aluminum engraving , aluminum cutting. It can be also used for lettering, embossment, and characters cut in relief, etc.
cnc wood router machine Warranty:
1. One year warranty for cnc router machine ,half year warranty for spindle.
Free offer you replacement if there is a failure in warranty period .
2. Professional technical person provide 24-hour service online
by MSN, Skype, Yahoo, Gmail and so on.
3. You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
