| Prod Model: |
YSDT-1000-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(Mm): |
1000*1000*1000mm |
| Exterior Chamber Size: |
1350*1950*1350mm |
| IP Class: |
IP*1 to IP*8 |
| Concentration Of Dust: |
Above 30000 Mg / M3 |
| Testing Temp.: |
20 Degree Celsius +/- 15 Degree Celsius |
| Humidity Range: |
45%Rh-85%Rh |
| Swirl Time: |
5s |
| Material: |
Stainless Steel |
| Quality: |
Certificated |
| Rest Time: |
15minutes |
| Type: |
Universal Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Control: |
Pid Controller |
| Oil Cylinder Position: |
N/a |
Product Description

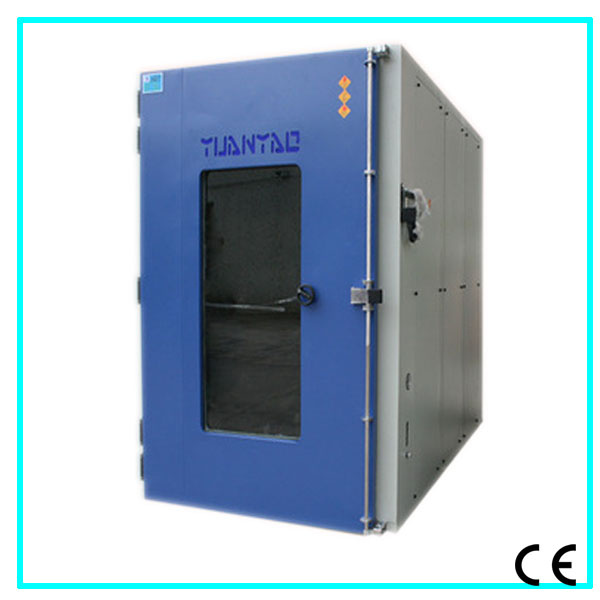

Simulated Environment Test System Dust Resistance Test Cabinet
Dust Resistance Test Cabinet is applicable for the dust proof and resistant test of various auto components and parts including lamps, (linpin) meters, electric dust proof sheath, steering system and lock etc.
Technical Specifications
1. Equipped with a large viewing glass window
2. Operating easy, maintenance quickly
3. Excellent performance
Main features of the equipment:
1. Use electronic sensor and humidity displayed in the control panel directly.
2. Provides a ready-made solution to common tests for automotive and electronic.
3. Adopt large viewing glass can let operator see the specimen clearly.
4. Imported high grade stainless steel inner tank (SUS304) mirror panels.
5. Equipment containing dust vertical circulation of air, dust can be reused for testing.
6. Device equipped with a vacuum system to meet the needs test.
7. Customization service is available and buyer's ideas are warmly welcomed.
Test standards
Comply with China's national defense industry standard GJB150.12 and major international test standards for different foreign markets, such as: IEC-529 (shell protection grade - IP code), GB4208-93, and DIN40050.
Package
Well packed in wooden cases, suitable for long distance shipments.
Production leadtime: 30 days after receipt of T/T down payment or L/C.
| Model | YSDT-1000-F | YSDT-1000-C(IEC-529) |
| Internal Dim.W×H×D(mm) | 1000×1000×1000 | 1000×1000×1000 |
| External Dim.W×H×D(mm) | 1350×1950×1350 | 1350×1950×1350 |
| Testing Type | F1 | F2 | F3 | IEC60529 |
| C1 | C2 |
| Concentration of dust(mg/m3) | Above 60000 | Above 3000 | Above 100 | Above 5000 | Above 100 |
| Testing Temp. | 20°C±15°C |
| Huimidi.Range | 45%RH~85%RH |
| Flow rate of dust(m/s) | No Limited | 5m/s | 10m/s |
| Testing Time | Swirl time | 5S or other | NO |
| Rest time | 15min or other |
| Total time | 5H | 8H | 8H | 2H | 6H |
| Material | Exterior | SUS#304+Powder Coated |
| Interior | SUS#304 |
| Other Components | Chamber lamp,Wiper,Casters with adjusters |
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW
|
In addition to Dust Resistance Test Cabinet, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity & Vibration Combined Test Chamber, Aging Oven Tester, Rain / Spray Test Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request. Welcome to enquire and purchase! Thanks your time!
Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.
Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.
We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.
We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.
Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
