| Prod Model: |
WL Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Wl |
| Product Name: |
Server Cabinet |
| Installation Type: |
Vertical |
| Capacity: |
4u-18u |
| Optional Color: |
Black,Gray,White |
| Feature: |
Wall Mounted Cabinet |
| Width: |
600mm |
| Depth: |
450mm |
| Surface Finish: |
Powder Coating |
| Material: |
SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Wall-Mounted Cabinet |
| Condition: |
New |
| Fan Number: |
Optional |
Product Description

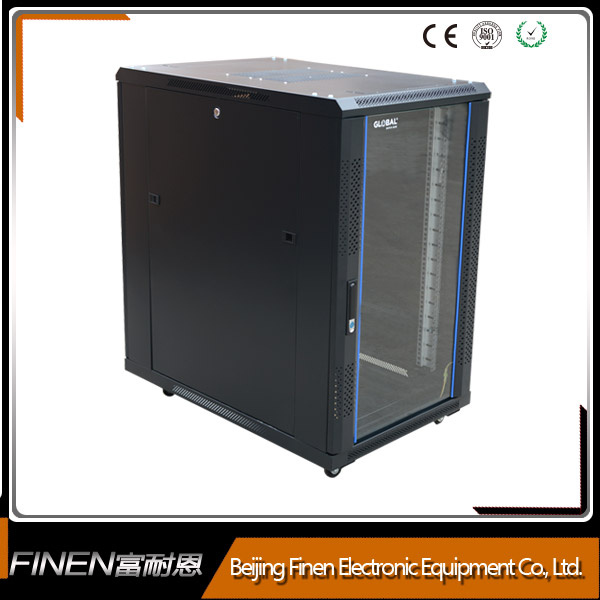

19" Network Cabinet, Server Rack
Specification:
Technical specifications:
1. Solid welded frame, maximum load capacity 60kg
2. The turning angle of front door is above 180 degree;
3. Degree of protection: IP20
4. Top fan and air intake around cabinet help exhaust hot-air
5. Quick released side panel with lock
6. Cable entry in top and bottom
7. Surface finish: The degreasing, pickling, phosphoric, powder coated;
8. Material: SPCC cold rolling steel plate, mounting angle: 2.0mm, others is 1.2mm
9. Color: Black or other colors available
Item Wall Mounting Network Cabinet, Server Rack
Color black or other colors available
Size 4U-18U, custoimzed
Application Telecommunication
Maximum load capacity 60KG
Sample and OEM available
Compliance:
ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard
Contains:
1. Front Glass or Steel Door
2. Standard Accessories: 1 or 2 Fans on top
3. Shelves: No or 1-2
4.1 Piece of required standard PDU
5.30 x Screws
Color:Black,gray or other.
Painting:Powder coating.
Capacity: 4U - 18U.
Width: 550mm, 600mm.
Depth: 300mm, 450mm, 600mm.
Cabinet Applications:
Rack cabinets for Information Technology and telecommunication appliances use:
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.
Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
